Is RS485 the same as Ethernet?
In the world of data communication, engineers often encounter both RS485 and Ethernet. At first glance, they may seem similar because both use cables and transmit digital signals. However, RS485 and Ethernet are not the same. They are built for very different purposes, environments, and technical requirements.
.png)
.jpg)
1. What is RS485?
RS485 is a communication standard that was designed in the 1980s for industrial environments. Its main characteristics include:
Differential signaling: Transmits signals across two wires (A and B), reducing electrical noise.
Long-distance capability: RS485 supports communication up to 1200 meters.
Multi-drop networking: Up to 32 devices can share the same bus.
Durability: Works reliably in harsh environments with high electromagnetic interference.
RS485 is widely used in industrial automation, smart metering, building control, and laboratory equipment.
2. What is Ethernet?
Ethernet, introduced in the 1970s and widely standardized in the 1980s, is the backbone of modern computer networking. It is designed for high-speed data transmission in office, residential, and industrial environments.
High data rates: Ranging from 10 Mbps to several Gbps.
Point-to-point connections through switches: Unlike RS485’s bus design, Ethernet uses a star topology.
Limited cable length: Typical Ethernet cables support 100 meters per segment.
Standardized connectors: Ethernet typically uses RJ45 connectors with twisted-pair cables (Cat5e, Cat6, etc.).
3. Key Differences Between RS485 and Ethernet
| Feature | RS485 | Ethernet |
|---|
| Primary Use | Industrial control, automation | Networking computers and devices |
| Topology | Multi-drop bus | Star topology with switches |
| Distance | Up to 1200 meters | Up to 100 meters (per cable segment) |
| Speed | Slower (up to 10 Mbps typically) | Very fast (up to 10+ Gbps) |
| Noise Resistance | Excellent (differential signals) | Good, but less than RS485 |
This shows that RS485 and Ethernet complement each other but do not replace one another.
4. Why Confusion Exists
Some engineers confuse RS485 and Ethernet because both can be used for network communication and sometimes share the same cable type (twisted pair). However:
For example, a smart meter might use RS485 for its control system, while Ethernet is used to transmit aggregated data to a cloud server.
5. Bridging the Gap

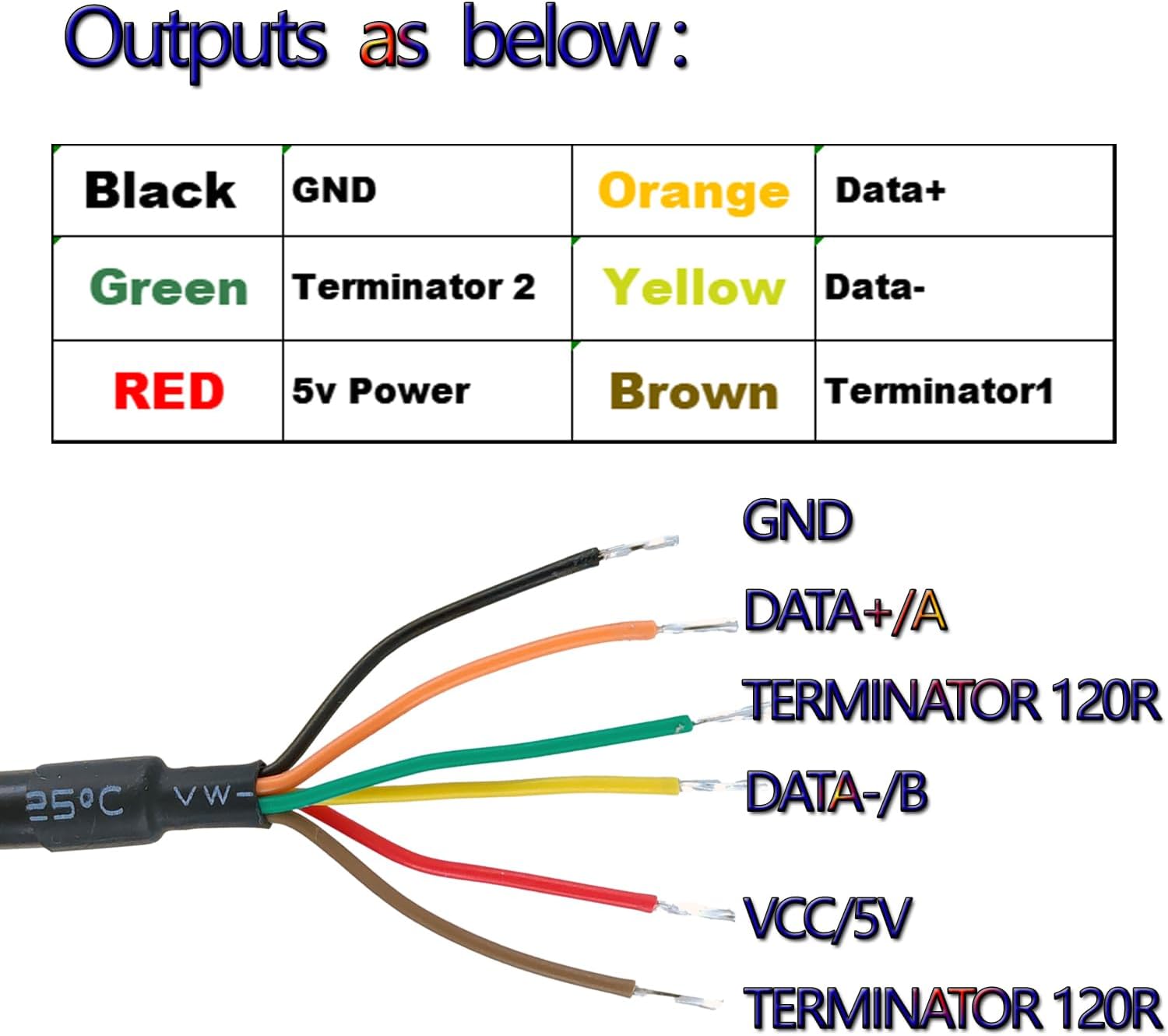

To connect RS485 devices to modern computers, engineers often use converters such as the USB-RS485-WE-1800-BT FTDI Chip RS485 USB A Male to Cable End Converter Cable. This device allows laptops with USB ports to communicate directly with RS485-based equipment.
Such converters highlight how legacy industrial systems (RS485) and modern computing (USB/Ethernet) can coexist.
6. Real-World Applications
Factories: RS485 networks connect PLCs and motor drives, while Ethernet connects monitoring systems.
Smart buildings: RS485 integrates HVAC systems, while Ethernet provides centralized management.
Utilities: RS485 gathers local meter data, Ethernet sends it to central servers.
This coexistence makes both standards essential in today’s communication landscape.
7. Conclusion
RS485 and Ethernet are not the same, but each has its strengths. RS485 is built for reliability, distance, and noise resistance, while Ethernet is designed for speed and large-scale networking. Together, they form the backbone of modern communication systems.
8. Looking Ahead
Now that we know RS485 and Ethernet are different, the next logical step is to understand the types of cables RS485 requires.
👉 In the next article, we will explore What cable is needed for RS485?, covering the key features of RS485 cables, how to choose them, and why they matter.
