What cable is needed for RS485?

Selecting the right cable is one of the most important steps in ensuring reliable RS485 communication. Unlike ordinary cables, RS485 wiring must meet specific requirements to support long-distance, noise-resistant, and multi-device communication. This article explains what type of cable is needed, how to choose it, and why it matters in industrial and commercial applications.

1. Why Cable Choice Matters

RS485 is often used in noisy environments such as factories, power plants, or buildings with heavy electrical equipment. The wrong cable can lead to:

Data errors and corrupted messages.
Reduced communication distance.
Unstable connections with multiple devices.

Choosing the correct cable ensures that your RS485 system performs reliably over long distances.

2. Key Characteristics of RS485 Cables

An RS485 cable must have the following characteristics:

Twisted pairs: The A and B differential signal lines should be twisted together to reduce electromagnetic interference.
Characteristic impedance of 120 ohms: Matching the impedance of RS485 drivers prevents signal reflections.
Shielding: A foil or braided shield helps protect against electrical noise, especially in industrial environments.
Conductor gauge: Typically 22–24 AWG is used, with thicker wires recommended for longer runs.

3. Shielded vs. Unshielded Cables

Shielded Twisted Pair (STP): Best for industrial installations with high electromagnetic noise.
Unshielded Twisted Pair (UTP): Acceptable for shorter runs or environments with low interference.

For most professional RS485 networks, shielded twisted pair cables are recommended.

4. Cable Length and Distance

RS485 supports communication up to 1200 meters, but cable quality significantly affects this maximum distance. A high-quality twisted pair with shielding allows stable communication across the full range.

5. Real-World Example with USB to RS485 Converter

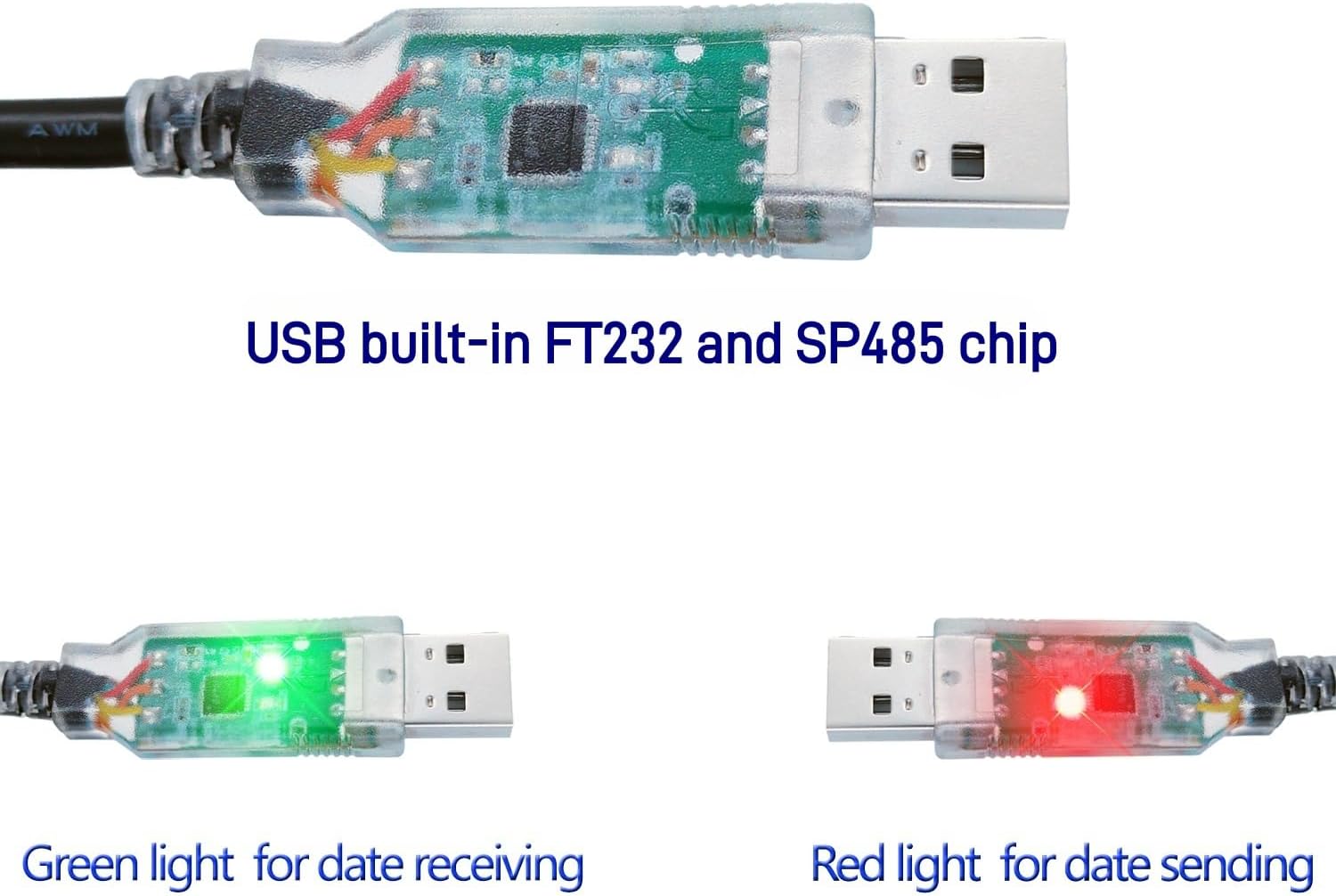

When connecting RS485 devices to a computer, engineers often rely on adapters such as the USB-RS485-WE-1800-BT FTDI Chip RS485 USB A Male to Cable End Converter Cable. This converter works best when paired with a properly selected RS485 cable, ensuring both electrical compatibility and reliable data transfer.

For instance, in a building automation project, this converter and a shielded twisted pair cable can connect HVAC systems across multiple floors to a central computer.

6. Applications of RS485 Cables

Industrial automation: Connecting PLCs, drives, and sensors.
Energy monitoring: Linking smart meters to central systems.
Building control: Managing HVAC, lighting, and security systems.
Laboratory setups: Stable communication between instruments and PCs.

Each of these use cases requires proper cable selection to avoid costly downtime and troubleshooting.

7. Conclusion

The right RS485 cable should be twisted, impedance-matched, and ideally shielded. Choosing wisely ensures long-distance, noise-free communication, especially when combined with converters like the USB-RS485-WE-1800-BT FTDI Chip RS485 USB A Male to Cable End Converter Cable.
