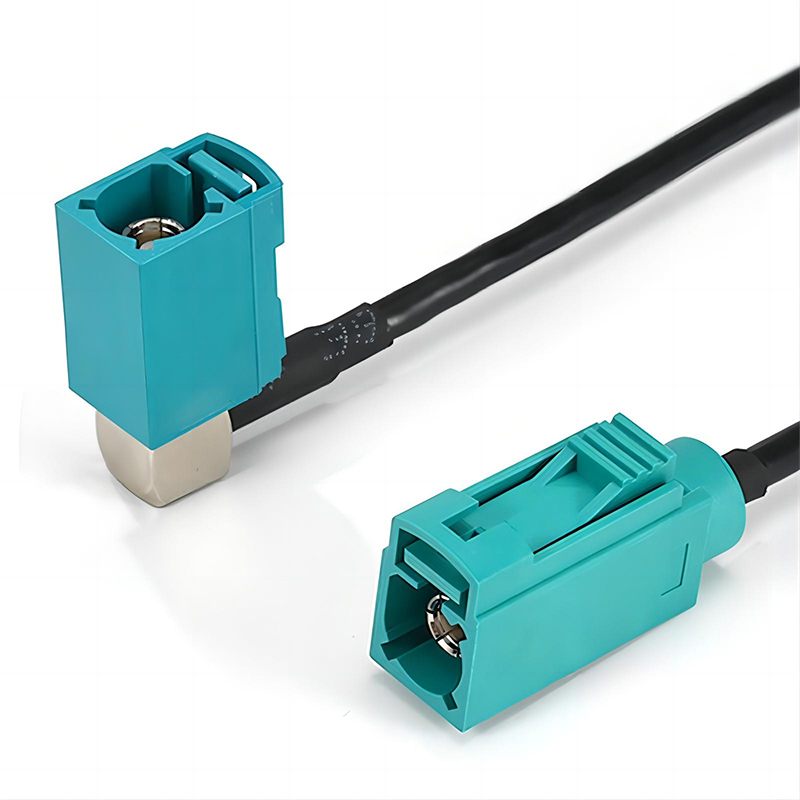

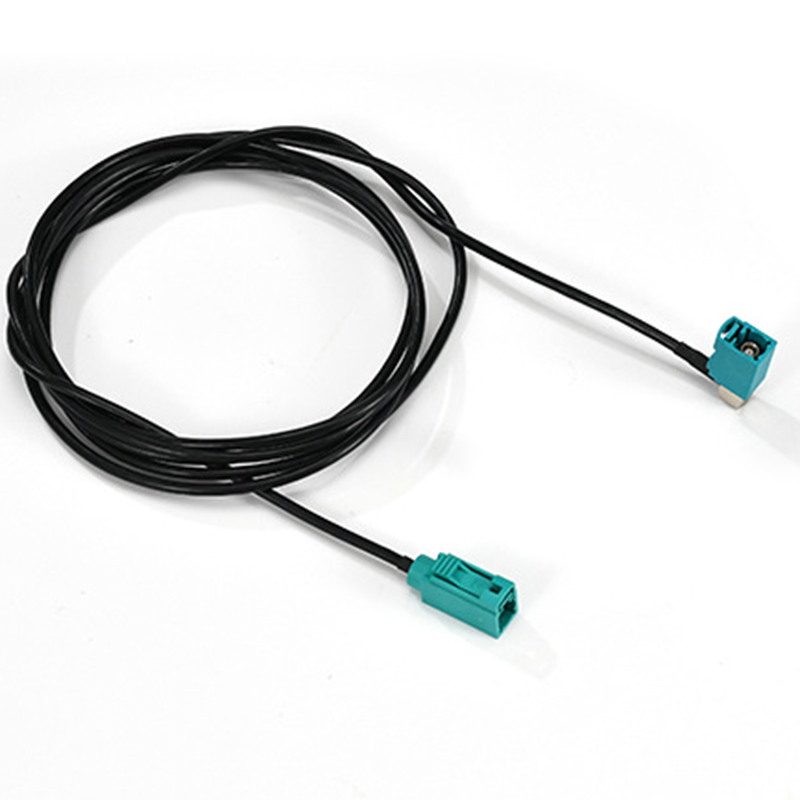

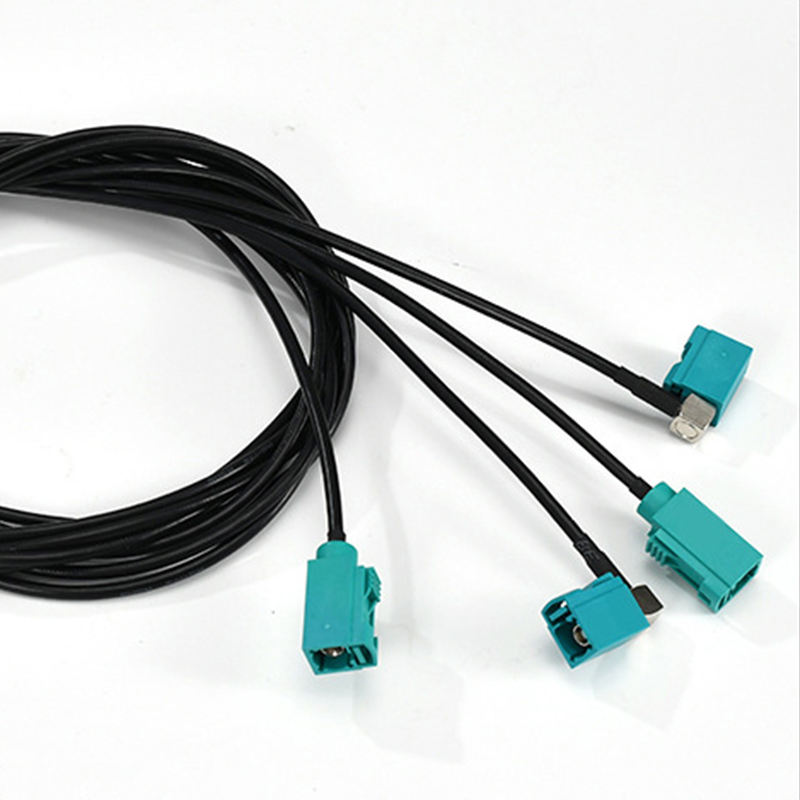

Product Name: Custom RF Coaxial Cable FAKRA to FAKRA Z Female Connector RF Jumper Cable

Connector Type: FAKRA Female to FAKRA Z Female

Interface Standard: FAKRA, FAKRA Z Code

Frequency Range: DC to 6 GHz

Impedance: 50 Ohm

Application: Automotive RF systems, GPS, GNSS, multimedia, camera, navigation, antenna extension

Typical Use: Automotive antenna system, infotainment, telematics, communication modules

Data Rate: High-frequency analog or digital signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66)

Housing Color: Light blue & teal

Coding Key: FAKRA Z Code

Latch Type: Push-pull locking

Cable Type: RG174 or RG316 Coaxial Cable

Cable Length: 50cm (customizable)

Jacket Material: PVC (or FEP for RG316)

Insulation Material: PE or PTFE

Shielding: Braided copper or silver copper

Shielding Effectiveness: ≥85dB

Temperature Range: -40°C ~ +105°C

Waterproof Rating: IP67 (when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥1000 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: Stable low-loss signal transmission

EMI Protection: Excellent

Vibration Resistance: Excellent

Industry Standard: ISO 20860, FAKRA

Country of Origin: China

Customization: Cable length, coding, connector type, packaging

Storage Conditions: Dry and ventilated

Weight: ~35g

Packaging: PE bag or customized
