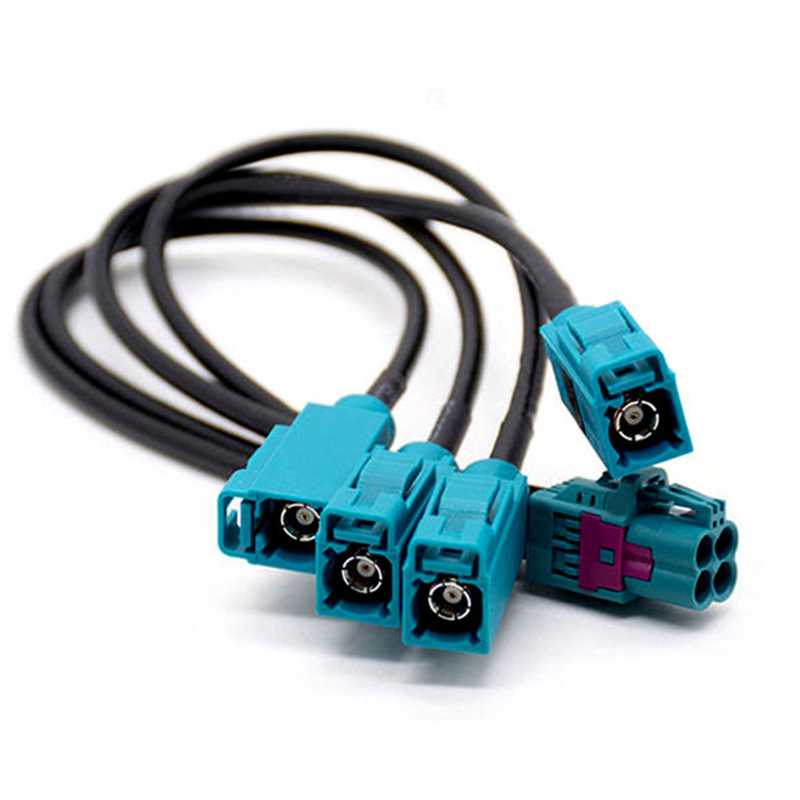

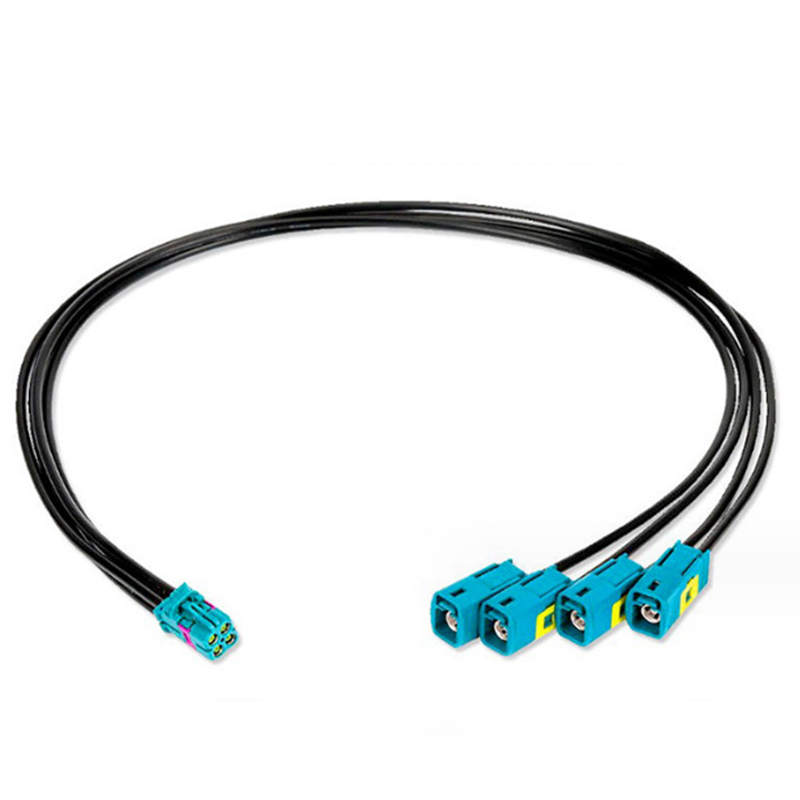

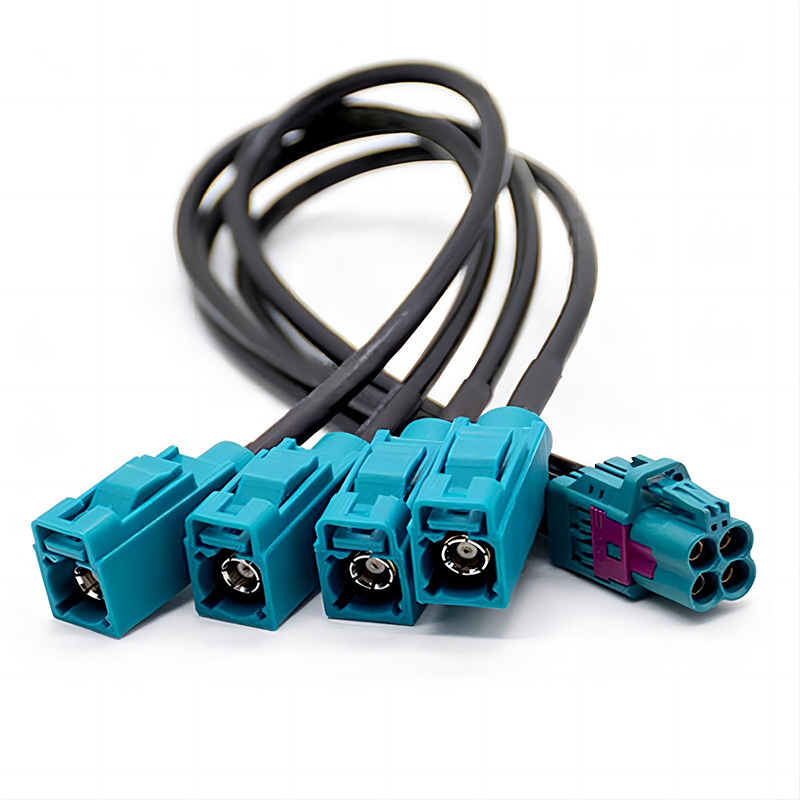

Product Name: Automotive HSD Data Cable FAKRA Z 4-Pin Female to 4x FAKRA Z Female HFM High-Speed Mini FAKRA Cable

Connector Type: HSD 4+0 (FAKRA Z) 4-Pin Female to 4x FAKRA Z Code Female

Interface Standard: HSD, FAKRA Z Code, Mini FAKRA HFM

Frequency Range: DC to 6 GHz

Impedance: 100 Ohm differential / 50 Ohm single-ended

Application: Automotive high-speed data transmission, infotainment, ADAS, camera systems, navigation, sensors

Typical Use: Automotive video systems, radar, lidar, cameras, telematics, multimedia, Ethernet

Data Rate: Up to 9 Gbps

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66)

Housing Color: Teal with purple coding

Coding Key: Z Coding

Latch Type: Push-pull locking

Cable Type: HSD high-speed shielded coaxial cable

Cable Length: 30cm (customizable)

Jacket Material: PVC or LSZH

Insulation Material: Foamed PE

Shielding: Braided copper + aluminum foil

Shielding Effectiveness: ≥90dB

Temperature Range: -40°C ~ +105°C

Waterproof Rating: IP67 (when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥500 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: High-speed stable signal transmission

EMI Protection: Excellent

Vibration Resistance: Excellent

Industry Standard: LVDS, ISO 20860, HSD, Mini FAKRA HFM

Country of Origin: China

Customization: Length, coding, connector type, shielding, packaging

Storage Conditions: Dry and ventilated

Weight: ~55g

Packaging: PE bag or customized
