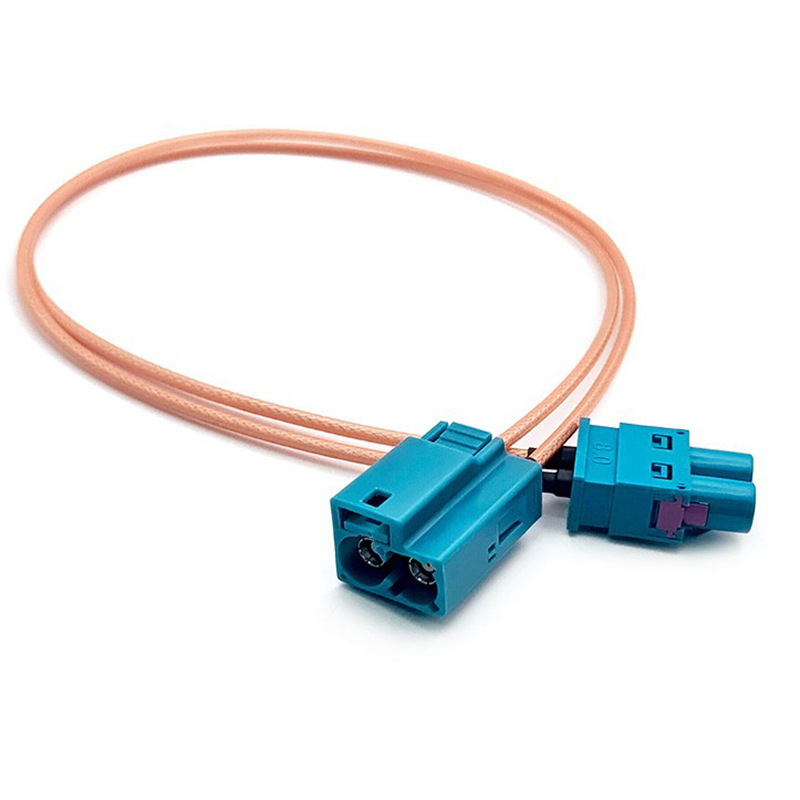

Product Name: Dual FAKRA Z Female to FAKRA Z Connector GPS Antenna Communication Cable

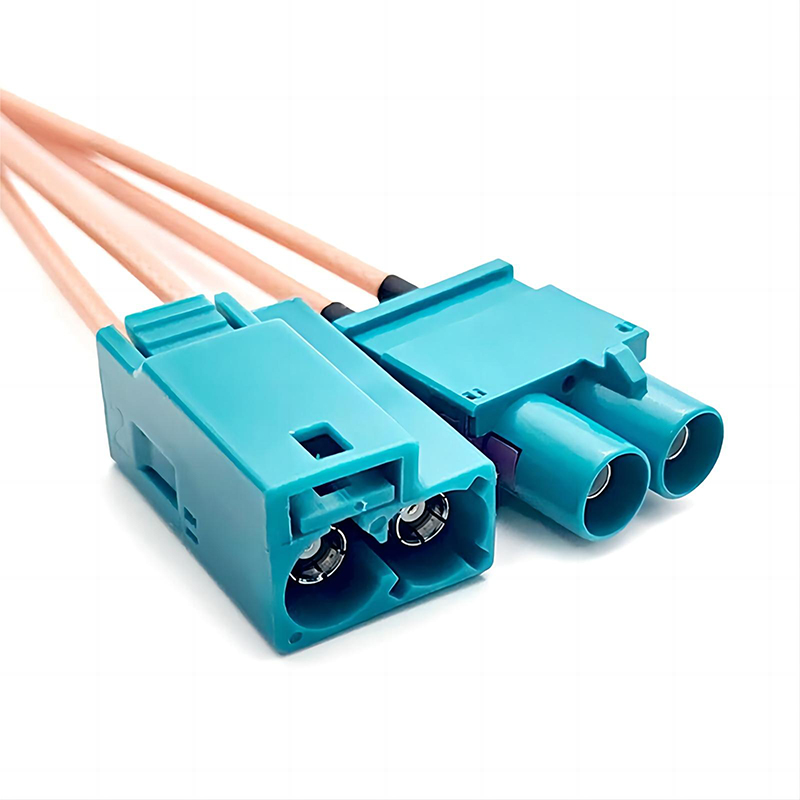

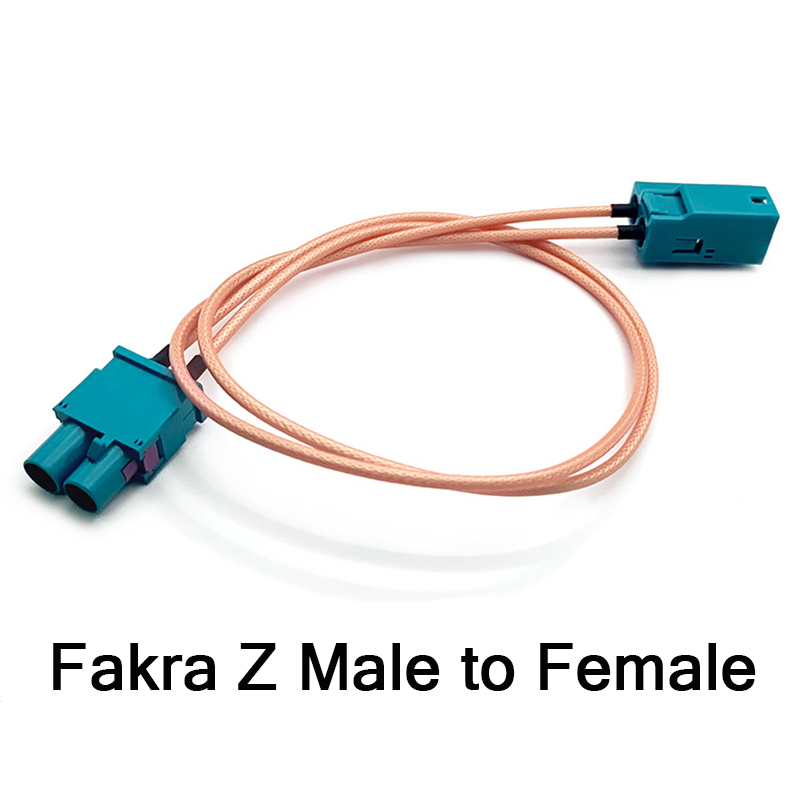

Connector Type: Dual FAKRA Z Code Female to FAKRA Z Code Male

Interface Standard: FAKRA Z Code

Frequency Range: DC to 6 GHz

Impedance: 50 Ohm

Application: GPS antenna, navigation system, telematics, communication, multimedia

Typical Use: Automotive GNSS/GPS modules, infotainment, camera, telematics systems

Data Rate: High-frequency analog or digital signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66)

Housing Color: Blue with Z coding

Coding Key: Z Coding

Latch Type: Push-pull locking

Cable Type: RG316 Coaxial Cable

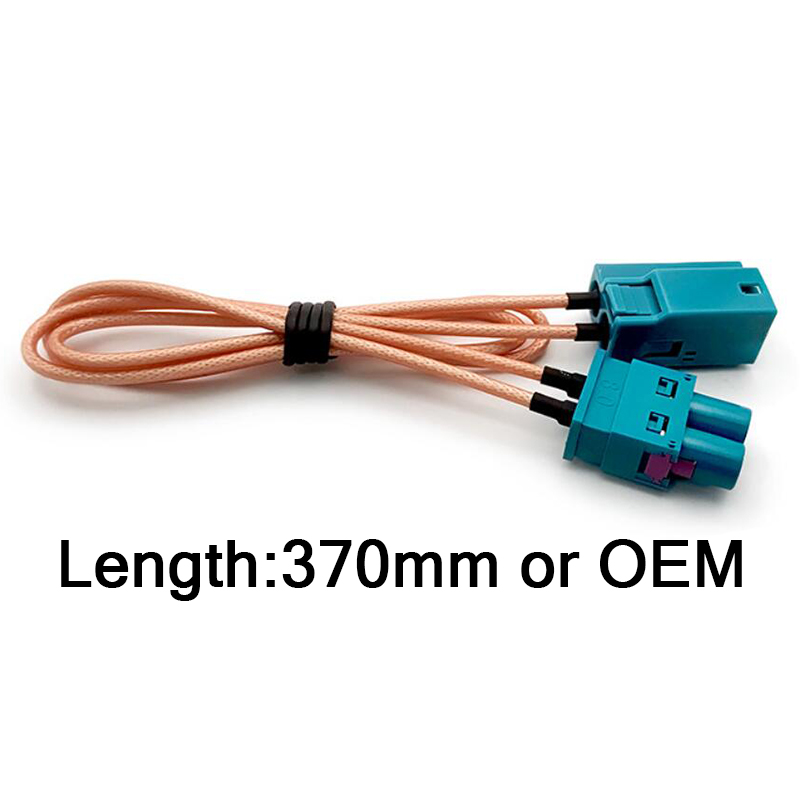

Cable Length: 30cm (customizable)

Jacket Material: FEP

Insulation Material: PTFE

Shielding: Braided silver copper

Shielding Effectiveness: ≥90dB

Temperature Range: -40°C ~ +105°C

Waterproof Rating: IP67 (when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥1000 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: Low-loss, stable high-frequency signal

EMI Protection: Excellent

Vibration Resistance: Excellent

Industry Standard: ISO 20860, FAKRA

Country of Origin: China

Customization: Cable length, coding, connector type, packaging

Storage Conditions: Dry and ventilated

Weight: ~40g

Packaging: PE bag or customized
