What is a JST XH Connector?

When it comes to electronic connections, few components are as widely used and recognized as the JST XH connector. This small yet vital element forms the backbone of many electrical assemblies, especially in automotive, industrial, and electronic devices. Understanding what it is, how it functions, and where it is applied can help engineers and hobbyists alike choose the right connector for their needs.

1. Definition and Basic Structure

The JST XH connector is a 2.54mm pitch wire-to-board connector system, developed by the Japan Solderless Terminal (JST) company. It is part of the JST XH series, known for its compact design, reliable electrical connection, and ease of use. The 2.54mm pitch refers to the distance between each pin, a standard that ensures compatibility with many circuit boards and components.

Typically, an XH connector consists of two main parts: - Male housing with terminal pins (mounted on the PCB) - Female housing with crimped wires (attached to cables)

These parts connect to create a secure, vibration-resistant joint — essential in automotive and electronic environments.

2. Features and Advantages

The JST XH series has earned its popularity because of several strong features: - Compact yet durable — suitable for space-limited assemblies.
- Secure locking mechanism — prevents accidental disconnection.
- Wide temperature range — stable between -25°C and 85°C.
- High current capability — up to 3A per contact, making it ideal for low-to-medium power applications.

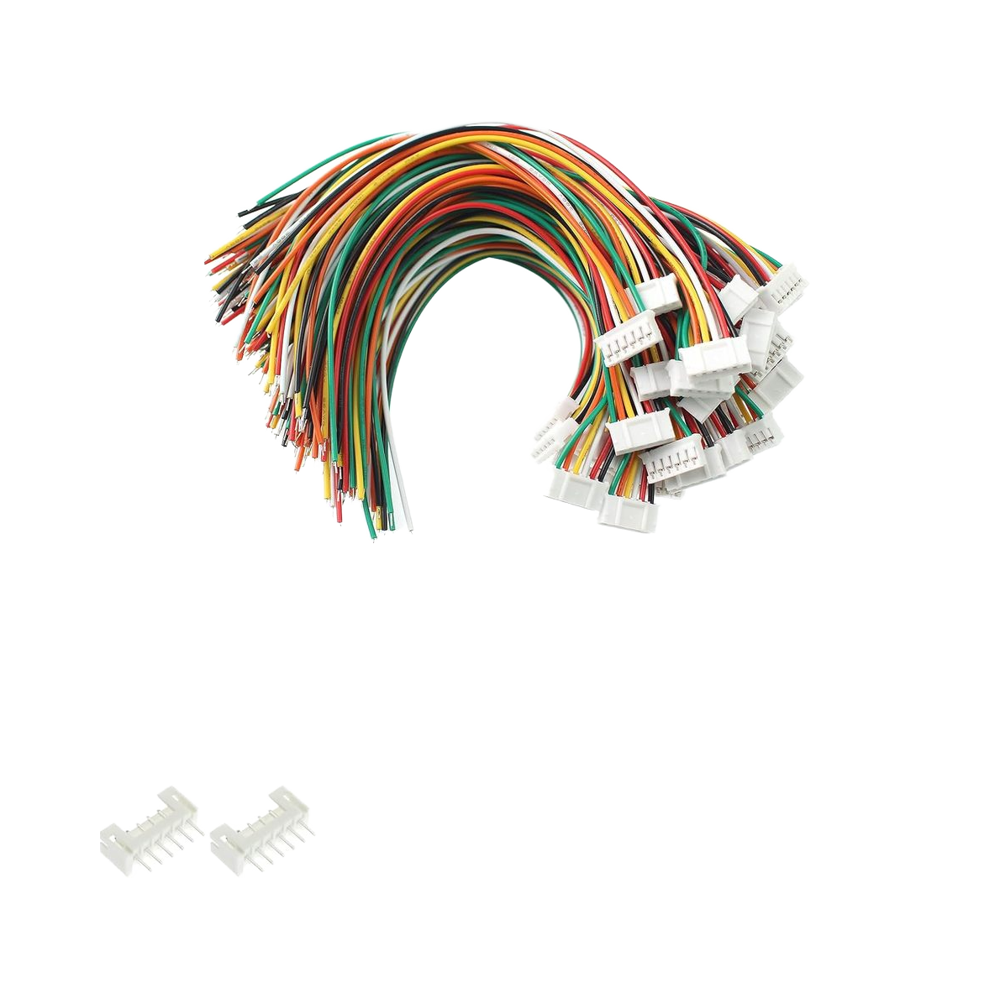

Manufacturers often customize the JST XH connector for specific applications, producing Customized 2.54mm Wire Harness JST XH Electric Male Connector Terminal for Automotive systems that meet precise mechanical and electrical standards. These customized harnesses ensure optimal performance in demanding automotive and electronic environments.

3. Common Applications

The JST XH connector can be found in: - Battery packs- LED light assemblies- Computer peripherals- Automotive wiring harnesses- Industrial control systems

For instance, Custom JST XH 2.54mm wire harness assembly is frequently used in modern vehicles to connect sensors, control modules, and power units. Their stability and precision make them reliable under constant vibration and temperature changes.

4. Material and Design Considerations

Each 2.54mm pitch JST XH male connector wire harness is typically made from high-quality tin-plated phosphor bronze contacts, offering corrosion resistance and electrical stability. The housing is usually made of nylon 66, a flame-retardant material that maintains flexibility over time.

Moreover, variations such as Automotive JST XH 2.54mm male connector cable assembly include customized wire lengths, terminal crimping options, and plug configurations. These details allow engineers to design wiring systems that meet international standards and regional specifications.

5. Importance in Modern Engineering

In today’s interconnected world, connectors like the JST XH play an unsung but critical role. They simplify maintenance, reduce soldering needs, and make modular design possible. Whether used in electric vehicles or consumer electronics, a Custom automotive wire harness with JST XH 2.54mm male plug ensures signal integrity and mechanical reliability.

The versatility of the JST XH 2.54mm male plug with pre-crimped leads also allows manufacturers to streamline production, reducing errors and assembly time.

6. Summary

The JST XH connector is a benchmark in precision, reliability, and adaptability. With a standard 2.54mm pitch and versatile configurations, it remains a preferred choice for engineers across multiple industries. From standard PCB connections to customized automotive harnesses, its consistency and performance make it indispensable.

As we explore deeper into the world of electrical connectors, the next logical step is understanding how to connect these JST connectors to wires — a crucial skill for ensuring safe and effective electronic assembly.
