How to Connect JST Connector to Wire?

Connecting a JST connector to a wire is an essential skill for engineers, electricians, and hobbyists working on electrical or electronic projects. These connectors, particularly the JST XH 2.54mm series, are widely used in automotive systems, robotics, and circuit boards because of their reliability and compact size. Proper connection ensures stable performance, signal integrity, and long service life.

1. Understanding the JST Connector Types

Before beginning, it’s crucial to identify which JST connector type you are working with. The JST XH connector has a 2.54mm pitch — meaning the space between pins is 2.54mm. These connectors come in both male (pin header) and female (housing with crimped wire terminals) forms.

Each terminal has a metal crimp pin that connects the wire to the housing. Whether assembling a Customized 2.54mm Wire Harness JST XH Electric Male Connector Terminal for Automotive or a simpler home electronic connection, the crimping precision determines overall performance.

2. Tools You’ll Need

To assemble JST connectors correctly, you will need the following tools:

• Wire stripper: For removing the insulation layer from the wire end.

• Crimping tool: Specially designed to crimp JST-style terminals.

• Needle-nose pliers: Useful for alignment and final adjustments.

• Connector housing: Such as a 2-pin or 4-pin JST XH shell.

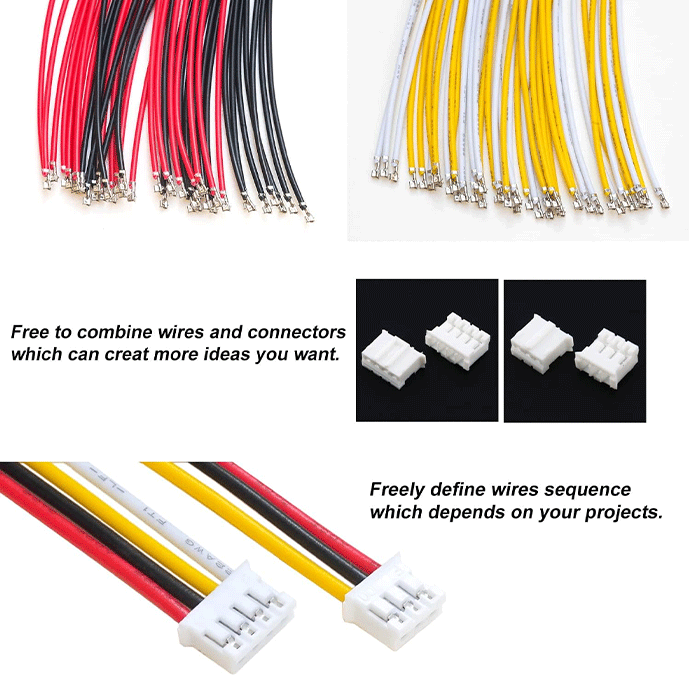

• Pre-crimped wires (optional): Some suppliers offer JST XH 2.54mm male plug with pre-crimped leads for convenience.

Having proper tools ensures that every crimp and connection maintains electrical and mechanical reliability, particularly in automotive applications where vibration and heat can degrade weak connections.

3. Step-by-Step Connection Process

Step 1: Prepare the Wire

Cut the wire to your desired length and strip approximately 2–3mm of insulation from the end. Ensure that the copper strands are clean and untwisted.

Step 2: Insert Wire into Terminal

Insert the exposed wire into the crimp terminal. The terminal has two small wings: - The front wings grip the stripped copper. - The rear wings hold the insulation for strain relief.

Step 3: Crimp the Terminal

Use a precision crimping tool to press the wings firmly around the wire. This creates a secure electrical and mechanical connection. Poor crimping may cause resistance or intermittent contact.

If you’re working with a Custom JST XH 2.54mm wire harness assembly, crimping accuracy is especially critical, as even slight misalignment can cause connector failure in automated systems.

Step 4: Insert into Housing

After crimping, align the terminal’s locking tab with the housing cavity and gently push it in until you hear a click. The click ensures that the terminal is locked inside.

Step 5: Inspect and Test

Visually inspect for misaligned pins or incomplete insertion. Use a multimeter to test continuity — ensuring that each wire is securely connected and there are no shorts.

4. Common Mistakes to Avoid

• Over-stripping insulation: Leaves the wire vulnerable to short circuits.

• Crimping with the wrong tool: Can deform terminals, causing unreliable connections.

• Inserting terminals backward: Prevents proper locking and weakens mechanical strength.

• Forgetting to test continuity: A simple multimeter test can prevent large-scale failure.

A 2.54mm pitch JST XH male connector wire harness relies on precise wire length and consistent crimp quality. In mass production, these standards ensure that every Automotive JST XH 2.54mm male connector cable assembly passes inspection and remains reliable under stress.

5. Tips for Professional Harness Assembly

• Use Custom automotive wire harness with JST XH 2.54mm male plug assemblies when possible to save time and ensure quality consistency.

• Always check wire gauge compatibility. JST XH terminals typically support 22–28 AWG wires.

• Consider heat-shrink tubing for added insulation and vibration resistance.

• When producing harnesses for automotive or aerospace projects, use certified Customized 2.54mm Wire Harness JST XH Electric Male Connector Terminal for Automotive solutions for guaranteed compliance.

These measures improve both reliability and long-term stability of your wiring systems.

6. The Importance of Proper Connection

A correctly assembled JST XH 2.54mm male plug with pre-crimped leads can make the difference between a flawless circuit and a system prone to disconnection. Proper crimping not only ensures electrical contact but also mechanical strength — critical in dynamic environments like vehicles or robotics.

7. Summary

Connecting a JST connector to a wire requires patience, precision, and proper tools. Following these steps guarantees a professional result and a long-lasting connection. In professional environments, manufacturers often prefer pre-assembled harnesses like the Custom JST XH 2.54mm wire harness assembly for consistency and safety.

Now that you understand the connection process, the next step is to distinguish between the different JST models. Understanding the difference between JST XH and JST connectors will help you choose the right connector type for your next project.
