What does TTL stand for in USB?

When working with USB to serial communication, one often encounters the abbreviation TTL. But what exactly does TTL mean in the context of USB, and why is it important? TTL, short for Transistor-Transistor Logic, refers to a digital signaling standard that defines voltage levels for logic “high” and “low.” In the world of USB adapters and cables, TTL represents the logical communication level between a computer and peripheral devices. Understanding this concept is fundamental for engineers, students, and anyone engaged in embedded system design.

1. The Origin of TTL

The concept of TTL dates back to the 1960s, when it became a widely adopted technology in integrated circuits. TTL defined precise voltage thresholds for digital communication, allowing devices to interpret “0” and “1” signals consistently. Even though modern systems have evolved, the principles of TTL remain central to how digital circuits interact.

2. TTL in USB Communication

When we talk about USB to TTL adapters, we are describing tools that allow USB ports—commonly found on computers—to communicate with hardware that uses logic-level UART. Instead of relying on higher voltages such as those used in RS-232 interfaces, TTL operates at safer levels like 3.3V or 5V. This ensures compatibility with microcontrollers, sensors, and IoT modules without risking electrical damage.

3. Why USB Needs TTL Conversion

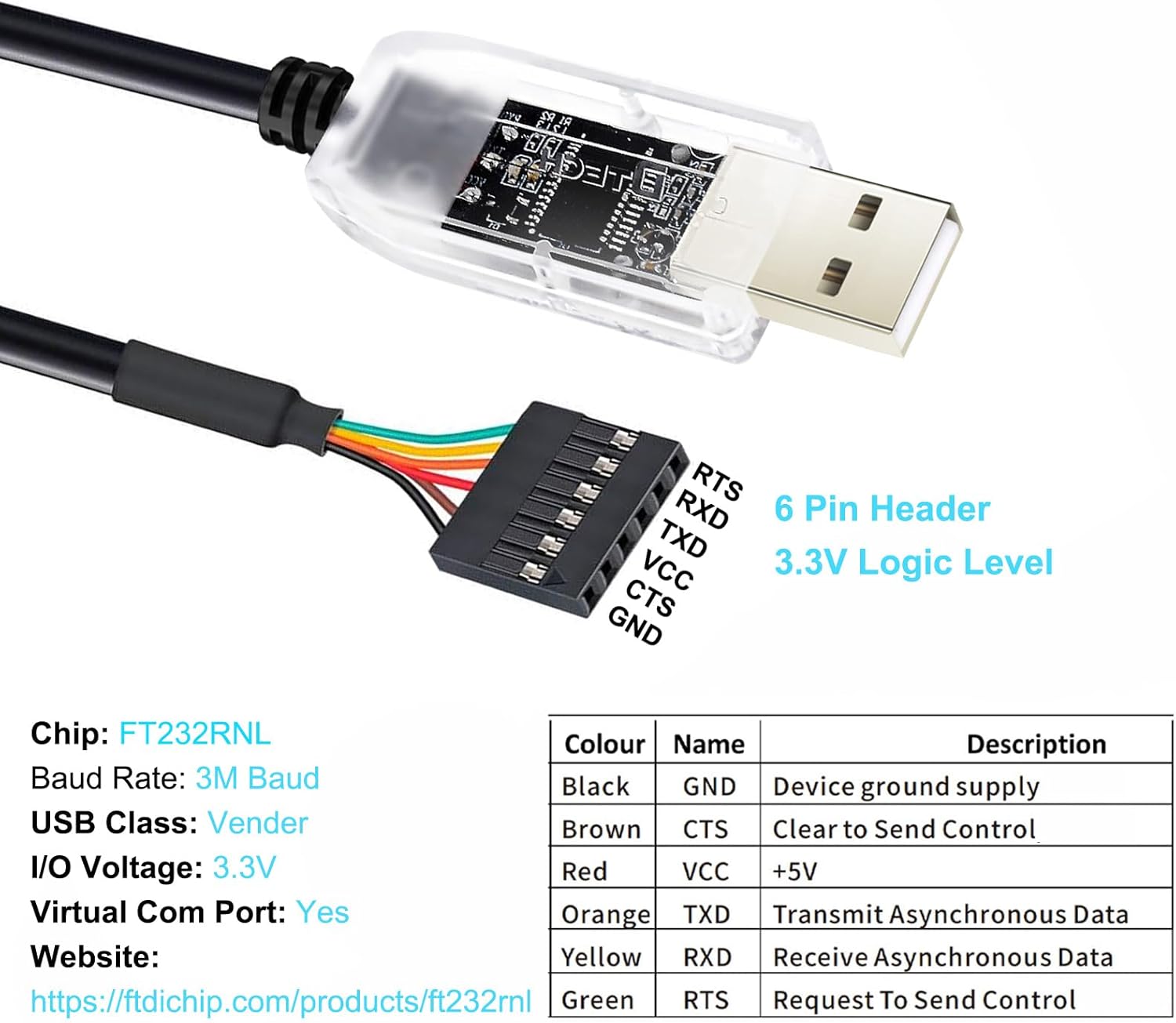

Computers today communicate using USB protocols, but embedded devices often rely on UART signals. A direct connection is impossible because the electrical levels and signaling protocols differ. A USB to TTL adapter bridges this gap by converting USB data into TTL-compatible voltages. For example, the 6 Pin LED FT232 USB to TTL UART FTDI Chip Cable performs this conversion seamlessly, allowing reliable two-way communication between host and device.

4. Practical Examples

Understanding what TTL stands for in USB is not just theoretical—it has many real-world implications:

• Firmware Development: Engineers flash firmware onto microcontrollers using USB to TTL interfaces.

• Debugging: Developers read console logs via TTL-level UART to analyze device behavior.

• Device Recovery: Technicians use FTDI-based cables to restore bricked routers or IoT boards.

• Learning: Students gain practical knowledge of logic-level communication through hands-on experiments.

5. Advantages of TTL Signaling

TTL has remained relevant because of several advantages:

• Simplicity: Easy to implement and interpret by digital systems.

• Low Power: Operates safely at low voltages, reducing risks of damage.

• Universality: Compatible with a wide range of embedded systems.

• Reliability: Well-defined voltage levels minimize communication errors.

6. TTL vs. RS-232

One common misunderstanding is confusing TTL with RS-232 serial communication. While both use UART protocols, RS-232 works with higher voltages (±12V) and requires special drivers. TTL, on the other hand, is low voltage and ideal for direct microcontroller communication. This is why USB to TTL adapters, especially those based on the FT232 chipset, are far more common in modern embedded development environments.

Conclusion

In summary, TTL in USB communication stands for Transistor-Transistor Logic, a standard that defines how logic-level signals are represented and interpreted. By bridging USB protocols with TTL signaling, adapters such as the 6 Pin LED FT232 USB to TTL UART FTDI Chip Cable empower developers, engineers, and students to program, debug, and recover electronic devices effectively. Without TTL compatibility, much of today’s embedded development would be far more complex.

👉 In the next article, we will discuss ¿Cómo conectar TTL a USB?, exploring the step-by-step process and tools required to establish a stable connection.
