How to program STM32 with USB to TTL?

How to Program STM32 with USB to TTL?

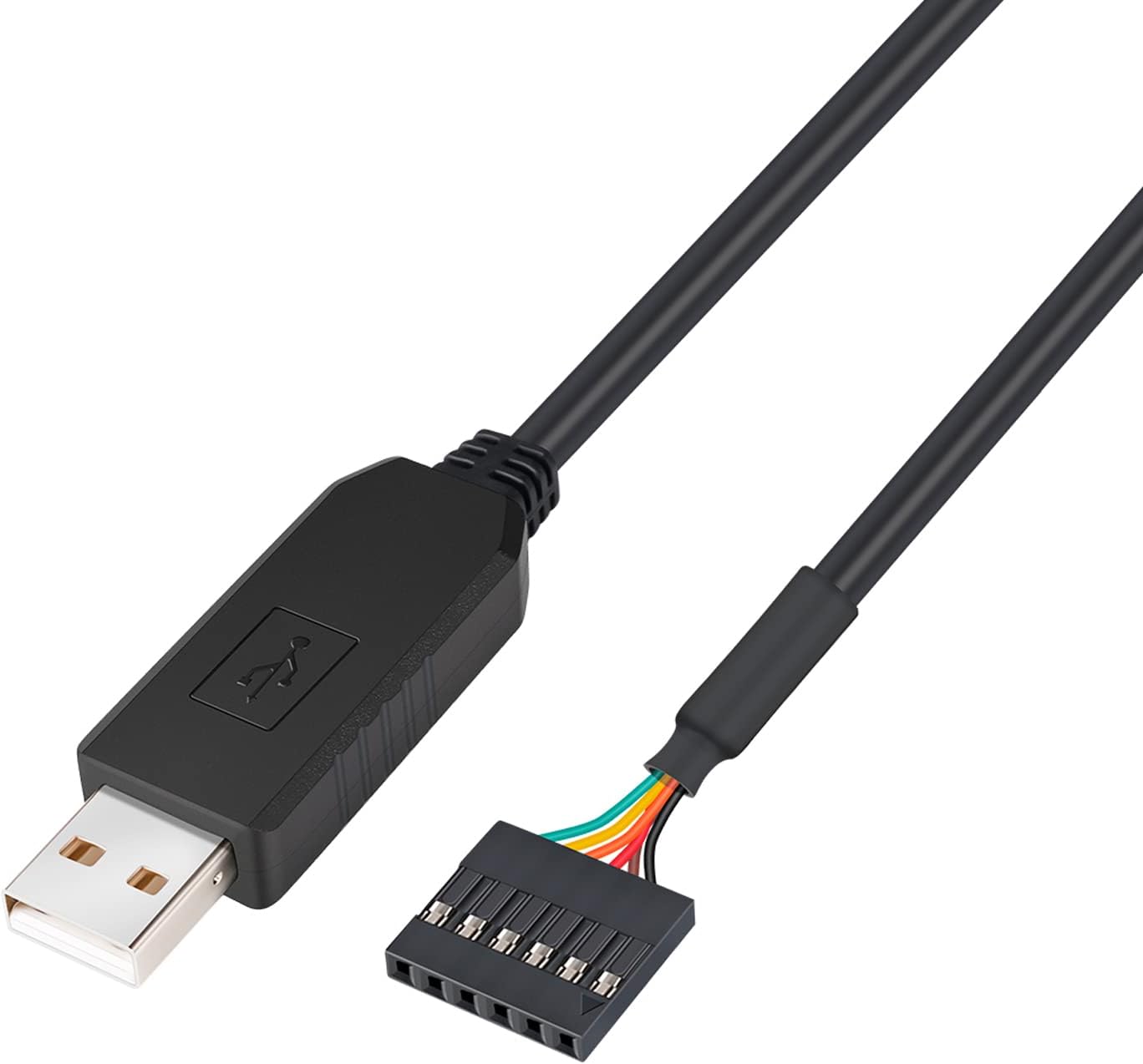

The STM32 series of microcontrollers are widely used in embedded development because of their performance and versatility. While many STM32 boards come with built-in USB interfaces, some require a USB to TTL adapter for programming and debugging. In such cases, the FT232RL USB to TTL adapter becomes an indispensable tool. This guide explains how to program STM32 with USB to TTL step by step, making use of reliable hardware like the 6 ft FT232RT Chip USB to TTL Serial Console Cable.

1. Why use USB to TTL for STM32?

STM32 microcontrollers often include a UART bootloader, which allows them to be programmed via serial communication. Using a USB to TTL adapter enables direct communication between your computer and the STM32 board without requiring specialized programmers like ST-Link. This method is cost-effective, easy to set up, and works across multiple operating systems.

2. Required Hardware and Software

  • STM32 microcontroller board

  • USB to TTL adapter (such as the 6 ft FT232RT Chip USB to TTL Serial Console Cable)

  • Jumper wires for connections

  • Computer with Windows, macOS, or Linux

  • STM32CubeProgrammer or a similar flashing tool

  • Serial terminal software (optional, for debugging)

3. Wiring the Connections

The wiring between the USB to TTL adapter and the STM32 board must be done carefully:

  • TX of USB to TTL → RX of STM32

  • RX of USB to TTL → TX of STM32

  • GND of USB to TTL → GND of STM32

  • VCC (if needed) → 3.3V or 5V of STM32 (check compatibility)

  • BOOT0 pin of STM32 must be set to HIGH (1) to enable programming mode

4. Installing Drivers and Software

Before connecting, install the FTDI drivers for your adapter. Many adapters, such as the 6 ft FT232RT Chip USB to TTL Serial Console Cable, are automatically recognized by modern systems, but downloading the official FTDI drivers ensures stability. Also, install STM32CubeProgrammer to flash firmware onto the microcontroller.

5. Programming Steps

  1. Connect the STM32 to the USB to TTL adapter as described.

  2. Launch STM32CubeProgrammer on your computer.

  3. Select the correct COM port corresponding to your adapter.

  4. Set the baud rate (commonly 115200 for STM32 devices).

  5. Load the firmware file (in .bin or .hex format).

  6. Click “Download” to upload the firmware to the STM32.

  7. After flashing, set the BOOT0 pin back to LOW (0) to boot normally.

6. Debugging and Serial Monitoring

Once the firmware is uploaded, you can use the same USB to TTL connection to debug your STM32. Open a terminal program, configure the correct baud rate, and monitor serial logs. This helps developers check device initialization, communication, and runtime performance.

7. Advantages of Using USB to TTL with STM32

  • Low cost: Cheaper than dedicated ST-Link programmers.

  • Cross-platform: Works on Windows, Linux, and macOS.

  • Simplicity: Straightforward wiring and setup.

  • Versatility: Can be reused with other microcontrollers and IoT devices.

Conclusion

Programming STM32 with a USB to TTL adapter is a simple yet powerful method for developers and hobbyists. By using reliable adapters like the 6 ft FT232RT Chip USB to TTL Serial Console Cable, you can easily upload firmware, debug your projects, and maintain full control over your microcontroller. With proper wiring, drivers, and tools, this approach offers a flexible solution for STM32 development.
