How to Use FT232RL USB to TTL?

The FT232RL USB to TTL adapter is one of the most reliable and widely used tools in embedded electronics and microcontroller programming. It provides a simple interface between modern computers equipped with USB ports and devices that communicate through TTL (Transistor-Transistor Logic) serial signals. Whether you are flashing firmware, debugging microcontrollers, or interacting with IoT devices, learning how to use the FT232RL USB to TTL converter is essential.

1. What is FT232RL USB to TTL?

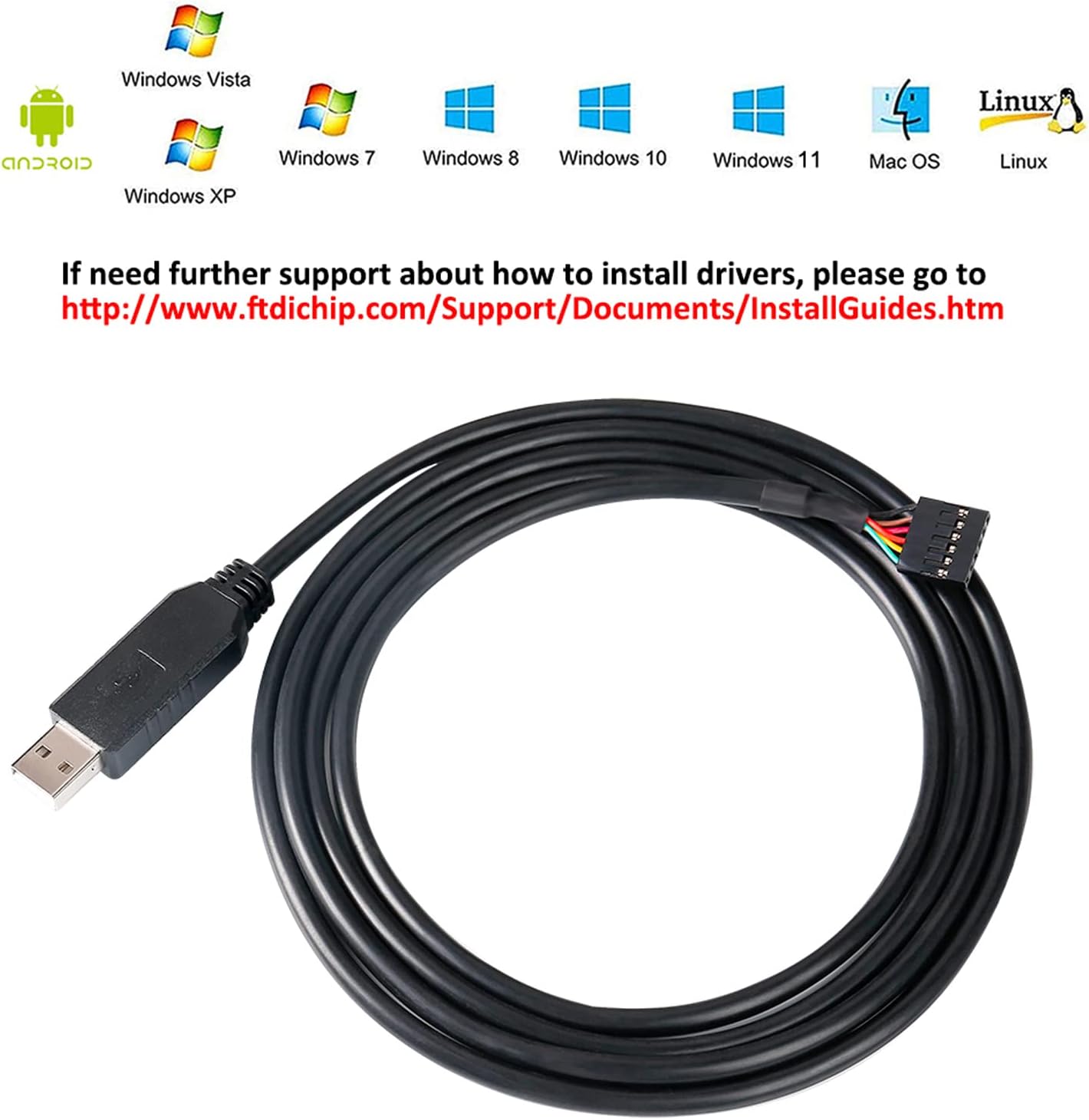

The FT232RL is a popular integrated circuit manufactured by FTDI that converts USB signals into UART (Universal Asynchronous Receiver-Transmitter) logic levels. It allows seamless communication between a computer and devices like Arduino, ESP8266, ESP32, STM32, and routers. Compared to generic adapters, the FT232RL chipset provides better driver support, higher reliability, and more stable voltage level conversion. A typical example is the 6 ft FT232RT Chip USB to TTL Serial Console Cable, which offers durability and stable performance during long programming sessions.

2. Required Materials

To start using the FT232RL USB to TTL adapter, you will need:

• A computer (Windows, macOS, or Linux) with USB port

• FT232RL USB to TTL module or cable

• Target device (e.g., microcontroller board, router, IoT device)

• Jumper wires for connections

• Terminal software such as PuTTY, minicom, or Arduino IDE Serial Monitor

3. Installation and Drivers

The first step is installing the proper FTDI drivers. Most modern operating systems detect the adapter automatically, but in some cases, you may need to download the official drivers from FTDI’s website. Once installed, the device will appear as a virtual COM port in your system.

4. Making the Connections

The most important step is wiring the adapter correctly:

• TX (Transmit) of the FT232RL → RX (Receive) of the device

• RX (Receive) of the FT232RL → TX (Transmit) of the device

• GND of the FT232RL → GND of the device

• VCC (if required) → Power input of the device (3.3V or 5V depending on compatibility)

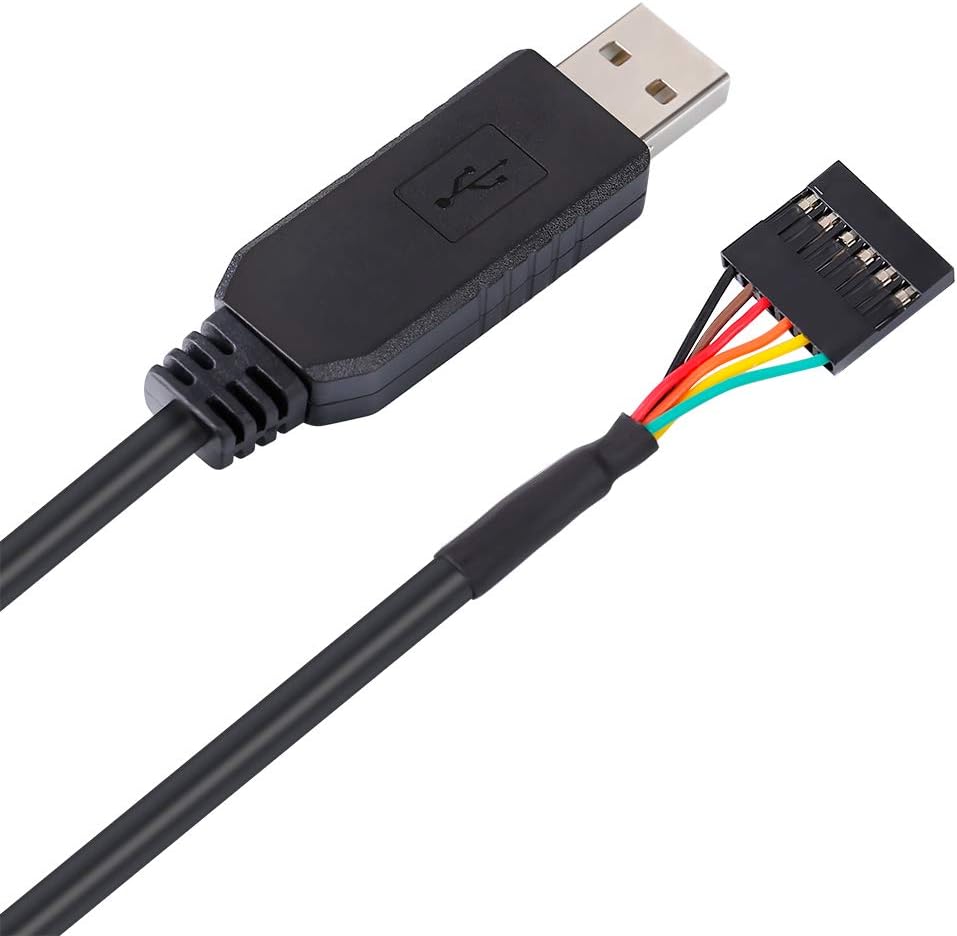

Some cables, such as the 6 ft FT232RT Chip USB to TTL Serial Console Cable, provide built-in LEDs for monitoring TX and RX activity, making it easier to verify connections.

5. Testing Communication

After connecting, open a terminal program and select the corresponding COM port. Configure the baud rate according to your device’s specifications, usually 9600, 115200, or other standard UART rates. You should now be able to send and receive data between the computer and the device.

6. Common Applications

• Firmware flashing: Upload new firmware onto microcontrollers or IoT modules.

• Debugging: View boot logs and error messages directly from the device console.

• Configuration: Adjust device settings via command-line interfaces.

• Learning: Students and hobbyists can experiment with UART communication.

Adapters like the 6 ft FT232RT Chip USB to TTL Serial Console Cable are widely recommended because of their reliability in such tasks.

7. Best Practices

• Double-check voltage compatibility (3.3V vs. 5V) before connecting.

• Always connect GND between devices to ensure stable communication.

• Use quality cables with FTDI chipsets to avoid unstable connections.

• Keep drivers updated for smooth performance across operating systems.

Conclusion

The FT232RL USB to TTL adapter is a must-have tool for developers, technicians, and electronics enthusiasts. Its ease of use, reliability, and broad compatibility make it ideal for programming, debugging, and experimenting with embedded systems. By understanding proper wiring, driver setup, and terminal usage, anyone can unlock the full potential of this adapter.
