Custom Production Wire Harness Custom JST SH GH ZH PH EH XH VH 1.0 1.25 1.5 2.0 2.5mm Pitch 234567810 Connectors Wiring
❤ Add to collection

Custom Production Wire Harness Custom JST SH GH ZH PH EH XH VH 1.0 1.25 1.5 2.0 2.5mm Pitch 234567810 Connectors Wiring

  1. High - Quality Materials: Constructed with premium - grade insulation materials that offer excellent resistance to abrasion,heat, and chemicals, ensuring long - lasting performance.
    2. Precision Engineering: The connectors are precisely manufactured to ensure a secure and stable connection, minimizing the risk of loose connections or electrical failures.
    3. Versatile Wiring: Multiple - colored wires are used for easy identification, facilitating quick and accurate installation and
    maintenance.
    4. Customizability: Can be customized according to specific requirements, such as length, number of connectors, and wire specifications, to meet diverse application needs.
    ABOUT:

1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.

￥0.00
0.00
￥0.00
￥0.00
Weight：0.000KG
Quantity：
Buy now
Add to cart
Description

  1. High - Quality Materials: Constructed with premium - grade insulation materials that offer excellent resistance to abrasion,heat, and chemicals, ensuring long - lasting performance.
    2. Precision Engineering: The connectors are precisely manufactured to ensure a secure and stable connection, minimizing the risk of loose connections or electrical failures.
    3. Versatile Wiring: Multiple - colored wires are used for easy identification, facilitating quick and accurate installation and
    maintenance.
    4. Customizability: Can be customized according to specific requirements, such as length, number of connectors, and wire specifications, to meet diverse application needs.
    ABOUT:

1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.

Product Name: Custom Production Wire Harness Custom JST SH GH ZH PH EH XH VH 1.0 1.25 1.5 2.0 2.5mm Pitch 234567810 Connectors Wiring


Product name

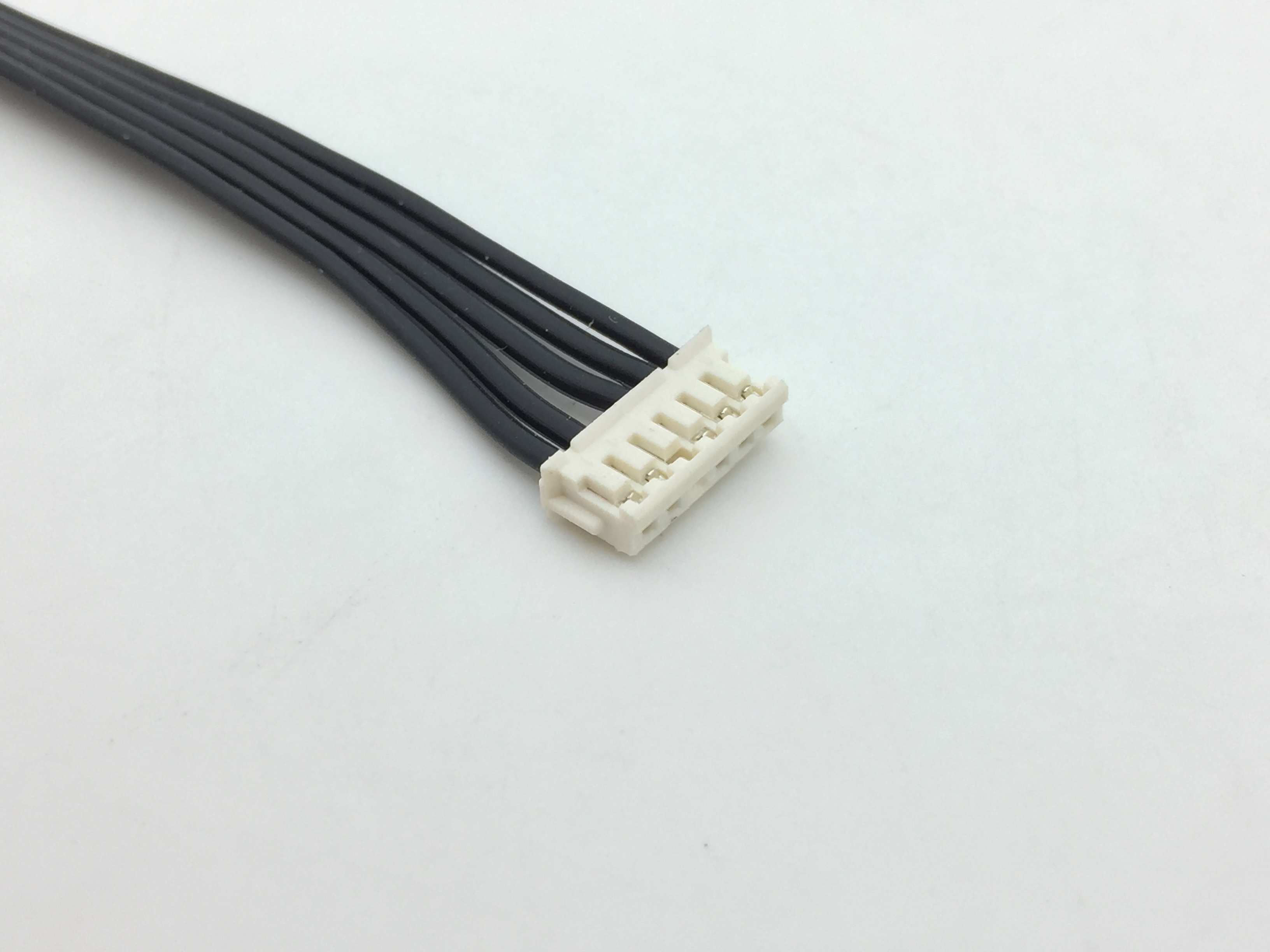

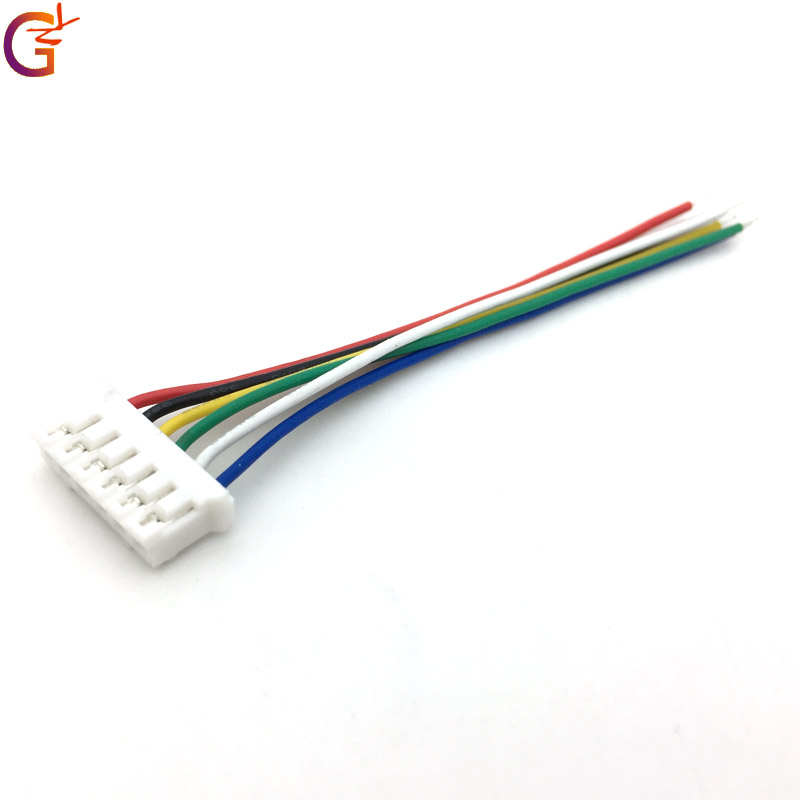

6pin PH 2.0 mm JST connector for communication
Test
Professional breakover and pulling force test before goods sent out
Cable materials
Wire harness can be UL, etc and pure copper
Cable color,lenght
According to the customers' requirements
Insulation
Rubber,Silica,PE,...etc
Connector Type
original OEM or replacements
Application
Automotive,Electrical,Industry,Home applications
Service
OEM and ODM products are acceptable
Samples
Samples confirmed first before mass production
Certificates
IATF16949,UL,ISO9001
Company Advantage
1.Factory and trade integration
2.One-stop shopping;
3.Competitive price;
4.Timely delivery;
5.Technical support;


Application Scenarios:

Application:

1.Sensor, actuator, encoder, servo motors
2.Factory automation and process control
3. Packaging, labeling and logistic devices
4. Industrial instrumentation
5. Commercial electronics PCBA
6. Industrial safety light curtain, light grid, switches
7. Power supply
8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
9. LED display panel & outdoor LED lighting

Company Profile：


MOQ:

Q1: What types of ⚡️wire harnesses do you offer?
We produce automotive-grade harnesses (⚡️UL/ISO certified), ⚡️PVC/⛓️silicone insulated cables, ⚡️high-temperature resistant (150°C+), and ⚡️waterproof IP67 assemblies. Custom configurations available for ⚡️EV charging ports, ⚡️industrial machinery, and ⚡️IoT devices.

Q2: Can you provide ⚡️custom wire lengths and ⚡️connector types?
🔧Yes! Specify your required:

  • ⚡️AWG gauge (16-28 AWG standard)

  • ⚡️Connector brands (Molex, TE, JST supported)

  • ⚡️Shielding needs (foil/braided)

  • ⚡️Color coding
    Upload technical drawings for instant quote

Q3: What ⚡️certifications do your harnesses have?
All products comply with ⚡️RoHS, ⚡️REACH, and ⚡️UL758. Automotive harnesses meet ⚡️IATF 16949. Request ⚡️CE/⛓️CCC certification if needed.

Q4: How to ensure ⚡️EMI/RFI interference protection?
We integrate:

  • ⚡️Twisted pair wiring

  • ⚡️Ferrite cores

  • ⚡️Metalized Mylar shielding
    Tell us your EMI standard for tailored solutions

Q5: What's the ⚡️MOQ for custom orders?
🔧Standard MOQ: 500pcs. For prototype development: ⚡️50pcs sample batch available (3-5 days lead time).

Q6: Can you match ⚡️specific wire colors or ⚡️labeling systems?
🔧Provide Pantone codes for wire jackets or barcode labeling requirements. We support ⚡️laser marking/⛓️heat-shrink labels.

Q7: Do you offer ⚡️overmolding services?
Yes! Waterproof ⚡️PVC/⛓️TPE overmolded connectors for ⚡️outdoor equipment. Submit 3D files for mold design.
