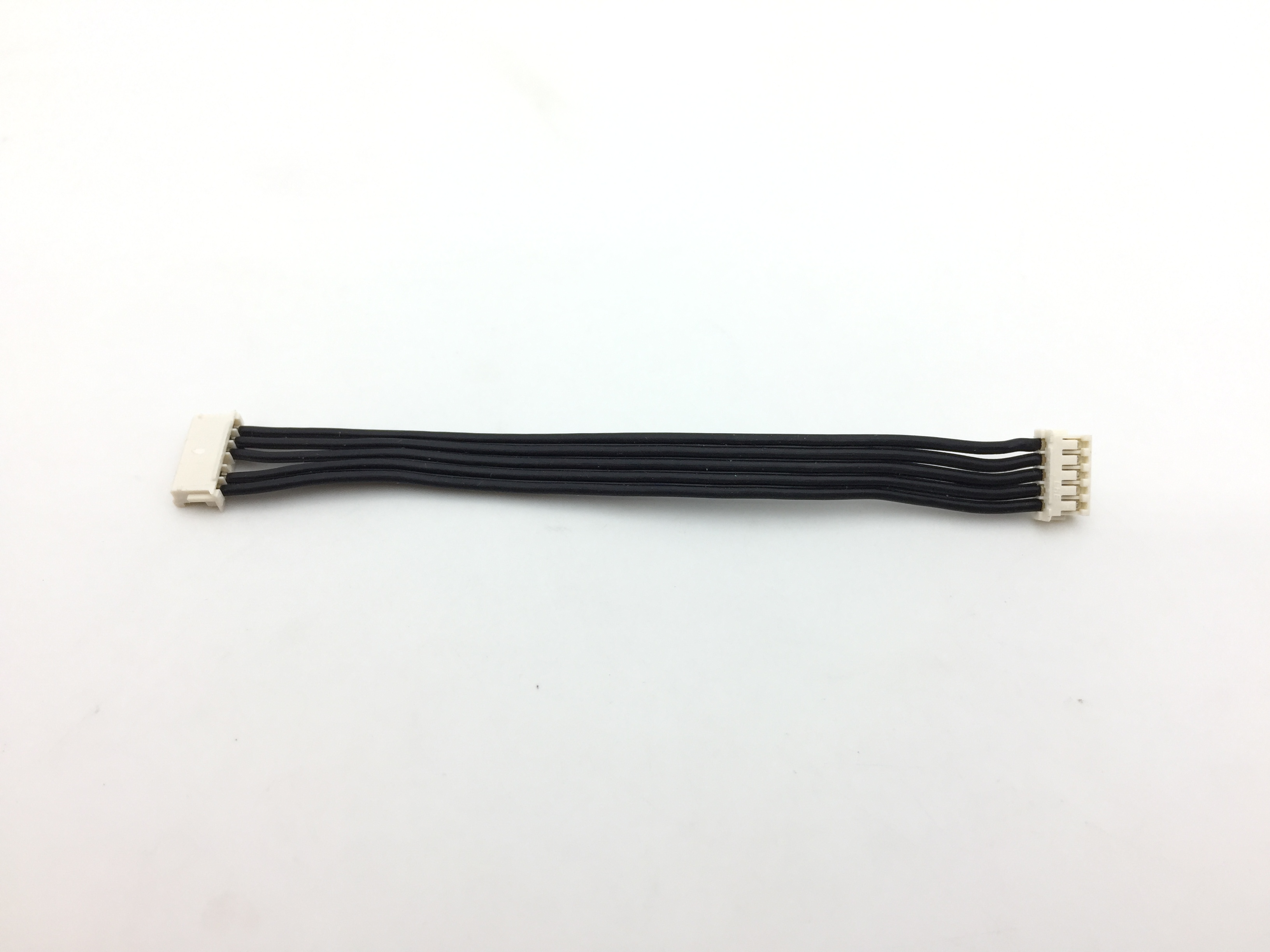

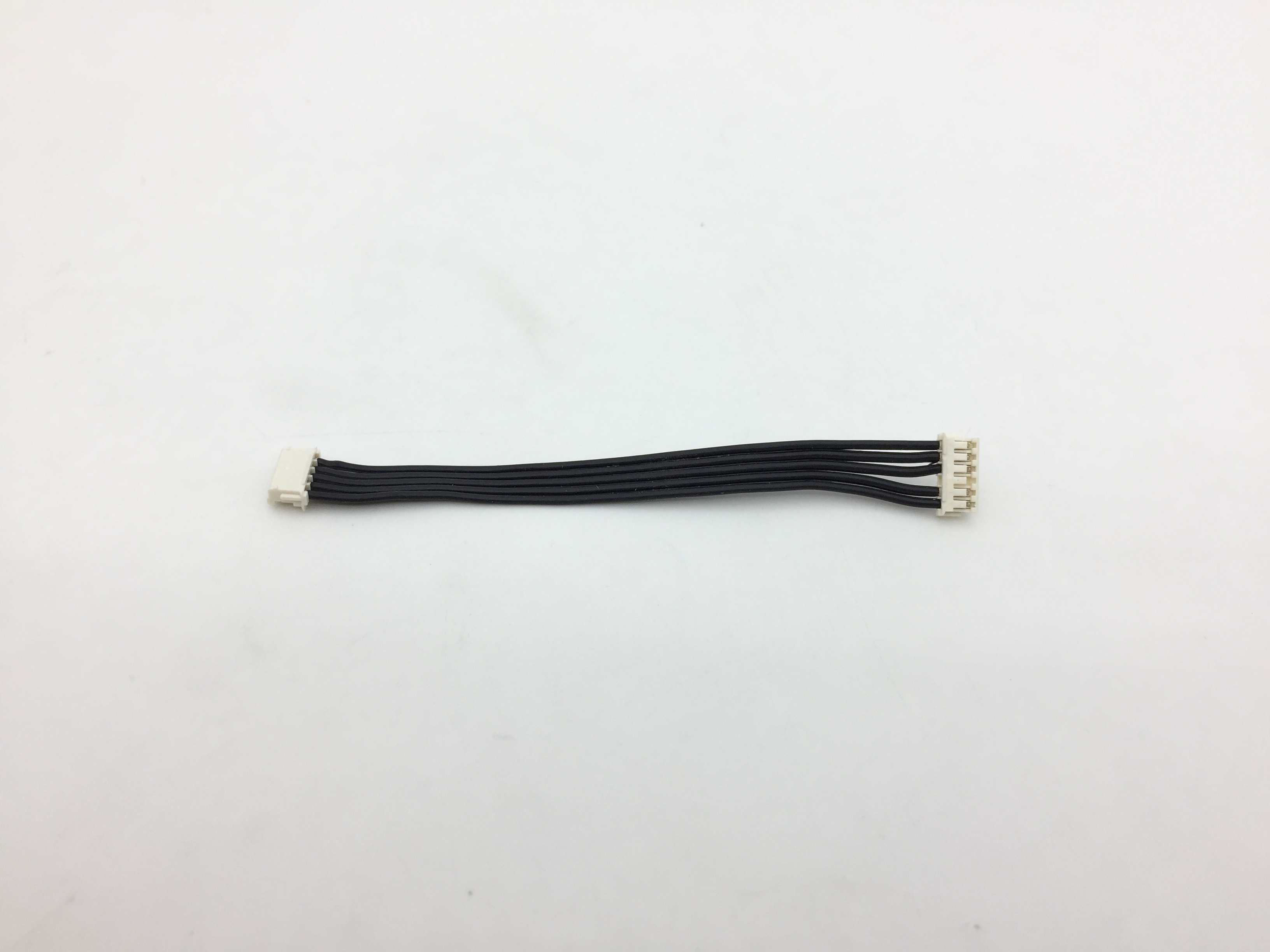

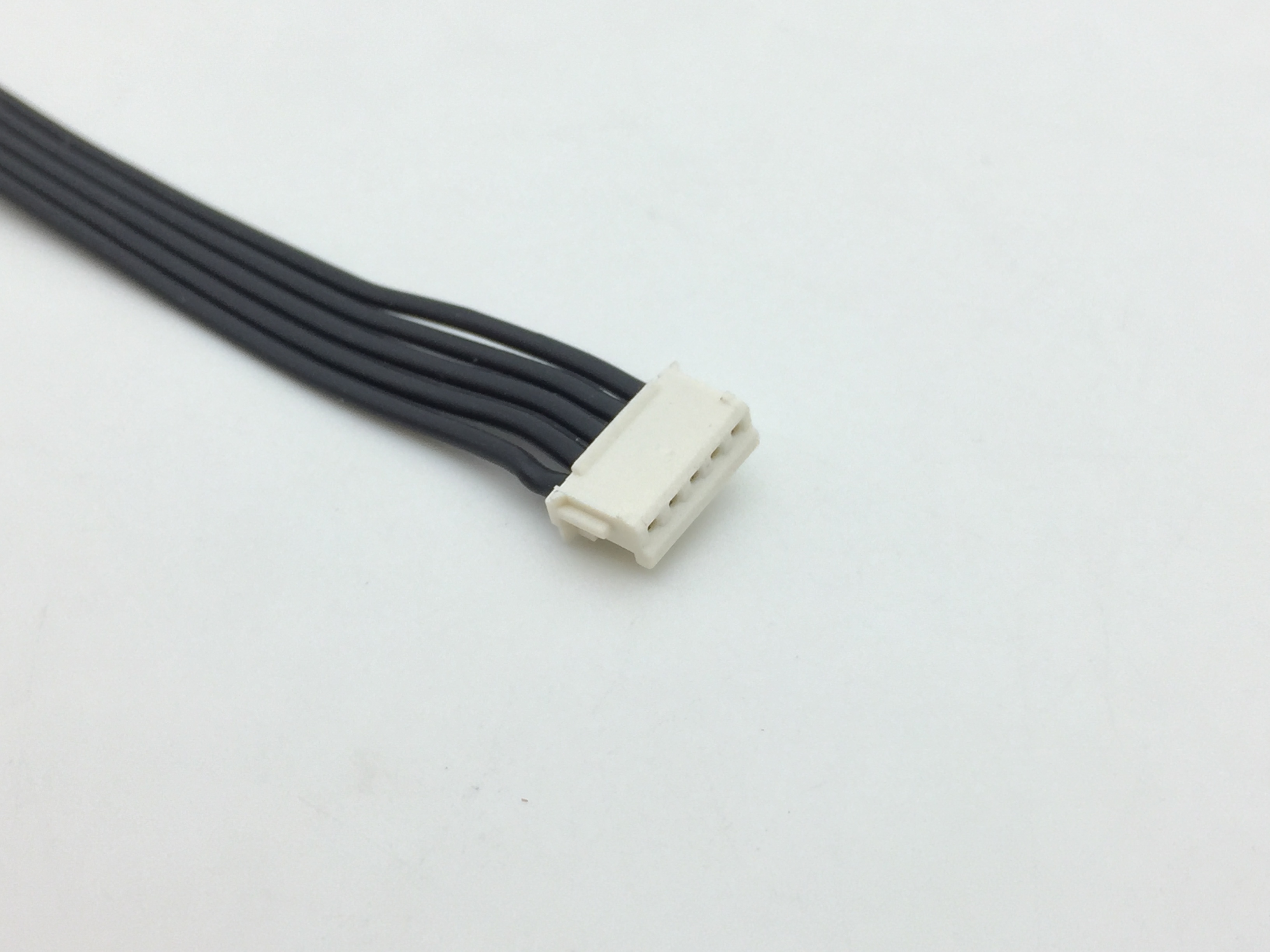

0.8MM 1MM Pitch 4 5 6 7 8 pin Automotive Connector Awm 2464 26Awg cable Black Female Connector Both Side Wire Harness
❤ Add to collection

0.8MM 1MM Pitch 4 5 6 7 8 pin Automotive Connector Awm 2464 26Awg cable Black Female Connector Both Side Wire Harness

  1. High - Quality Materials: Constructed with premium - grade insulation materials that offer excellent resistance to abrasion,heat, and chemicals, ensuring long - lasting performance.
    2. Precision Engineering: The connectors are precisely manufactured to ensure a secure and stable connection, minimizing the risk of loose connections or electrical failures.
    3. Versatile Wiring: Multiple - colored wires are used for easy identification, facilitating quick and accurate installation and
    maintenance.
    4. Customizability: Can be customized according to specific requirements, such as length, number of connectors, and wire specifications, to meet diverse application needs.
    ABOUT:

1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.

￥0.00
0.00
￥0.00
￥0.00
Weight：0.000KG
Quantity：
Buy now
Add to cart
Description

  1. High - Quality Materials: Constructed with premium - grade insulation materials that offer excellent resistance to abrasion,heat, and chemicals, ensuring long - lasting performance.
    2. Precision Engineering: The connectors are precisely manufactured to ensure a secure and stable connection, minimizing the risk of loose connections or electrical failures.
    3. Versatile Wiring: Multiple - colored wires are used for easy identification, facilitating quick and accurate installation and
    maintenance.
    4. Customizability: Can be customized according to specific requirements, such as length, number of connectors, and wire specifications, to meet diverse application needs.
    ABOUT:

1.Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
2. Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
3. Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
4. Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃/ 90℃.
5. Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
6. Cable bending endurance: ≥3000 times, bending angle ±90°, loading 250g, frequency 40 times per minute, axle radius 12.7mm.
7.RoHS compliant.

Product Name: 0.8MM 1MM Pitch 4 5 6 7 8 pin Automotive Connector Awm 2464 26Awg cable Black Female Connector Both Side Wire Harness

Product  Wire harness ConnectorJST,Molex Original
Pin positions3Pin/4Pin/5Pin/6Pin/8Pin/12Pin/17PinMating cycle >1000
Locking MechanismPlugContact Resistance <5mΩ
TerminationSolderingInsulation Resistance >100mΩ
Shell materialPlasticTemperature range -40℃~ +85℃
Insert materialPA66Rated voltage 60V~30V
Contact materialBrass with gold PlatedRated current 4A/2A/1.5A


Model NO.
2025LV
Industry Type
Automotive Wiring Harness
Bandaging Materials
PVC Pipe
General Wiring Harness
Injection Molding Assembly Class
Shape
Round
Certification
VDE, RoHS, ISO9001, CCC
Brand
ANNXIN
Transport Package
Carton
Trademark
ANNIXN
Production Capacity
100PS/Month



    Application Scenarios:

    Application:

    1.Sensor, actuator, encoder, servo motors
    2.Factory automation and process control
    3. Packaging, labeling and logistic devices
    4. Industrial instrumentation
    5. Commercial electronics PCBA
    6. Industrial safety light curtain, light grid, switches
    7. Power supply
    8 .Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
    9. LED display panel & outdoor LED lighting

    Company Profile：


    MOQ:

    Q1: What types of ⚡️wire harnesses do you offer?
    We produce automotive-grade harnesses (⚡️UL/ISO certified), ⚡️PVC/⛓️silicone insulated cables, ⚡️high-temperature resistant (150°C+), and ⚡️waterproof IP67 assemblies. Custom configurations available for ⚡️EV charging ports, ⚡️industrial machinery, and ⚡️IoT devices.

    Q2: Can you provide ⚡️custom wire lengths and ⚡️connector types?
    🔧Yes! Specify your required:

    • ⚡️AWG gauge (16-28 AWG standard)

    • ⚡️Connector brands (Molex, TE, JST supported)

    • ⚡️Shielding needs (foil/braided)

    • ⚡️Color coding
      Upload technical drawings for instant quote

    Q3: What ⚡️certifications do your harnesses have?
    All products comply with ⚡️RoHS, ⚡️REACH, and ⚡️UL758. Automotive harnesses meet ⚡️IATF 16949. Request ⚡️CE/⛓️CCC certification if needed.

    Q4: How to ensure ⚡️EMI/RFI interference protection?
    We integrate:

    • ⚡️Twisted pair wiring

    • ⚡️Ferrite cores

    • ⚡️Metalized Mylar shielding
      Tell us your EMI standard for tailored solutions

    Q5: What's the ⚡️MOQ for custom orders?
    🔧Standard MOQ: 500pcs. For prototype development: ⚡️50pcs sample batch available (3-5 days lead time).

    Q6: Can you match ⚡️specific wire colors or ⚡️labeling systems?
    🔧Provide Pantone codes for wire jackets or barcode labeling requirements. We support ⚡️laser marking/⛓️heat-shrink labels.

    Q7: Do you offer ⚡️overmolding services?
    Yes! Waterproof ⚡️PVC/⛓️TPE overmolded connectors for ⚡️outdoor equipment. Submit 3D files for mold design.
