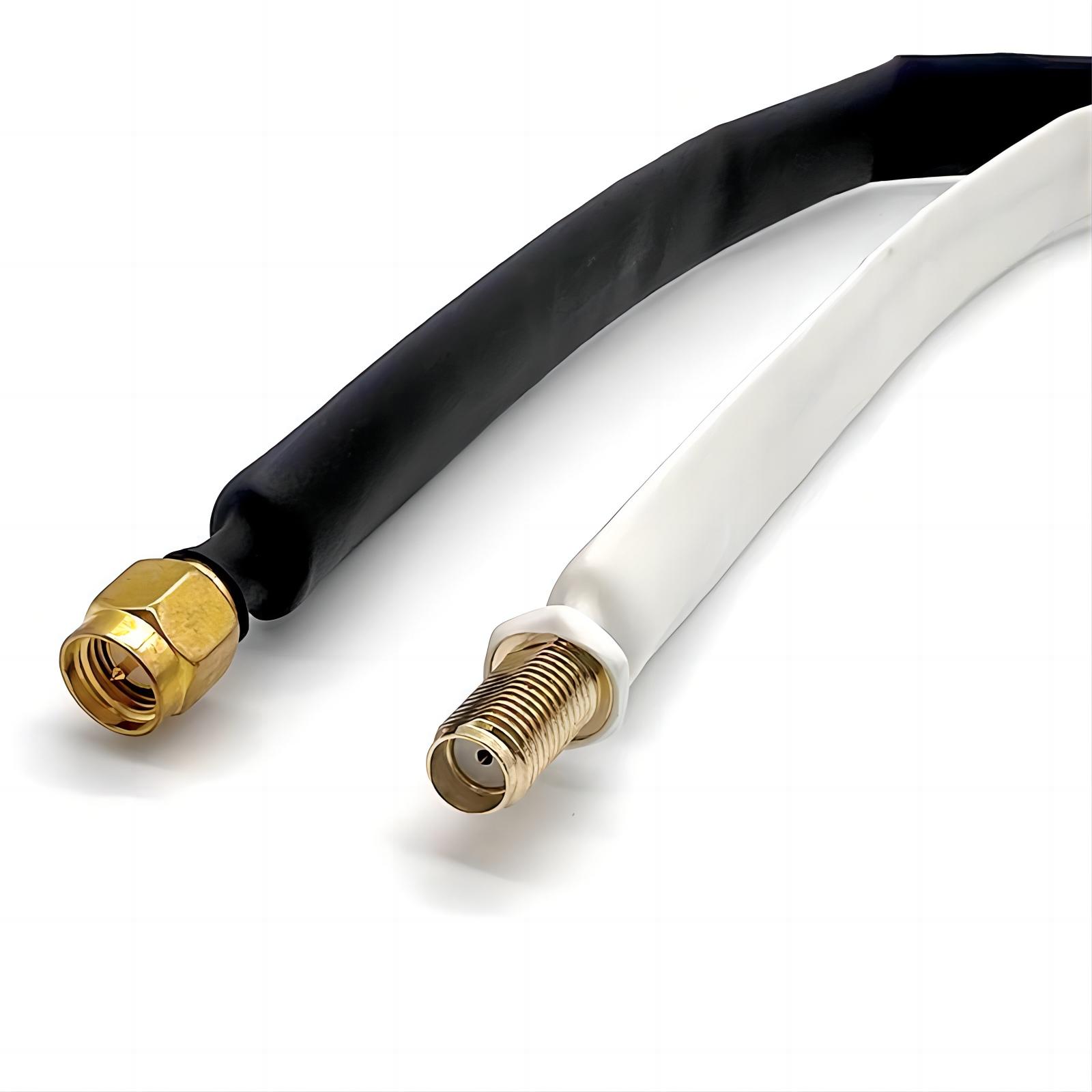

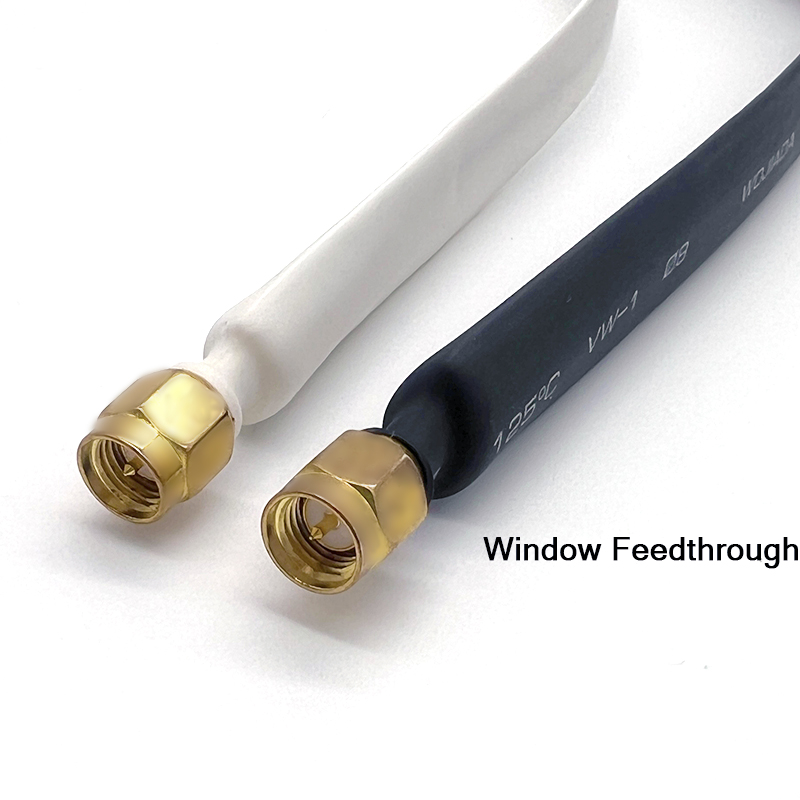

Product Name: Window Jumper Cable SMA Male to SMA Female Fiberglass Antenna Through-Wall Adapter

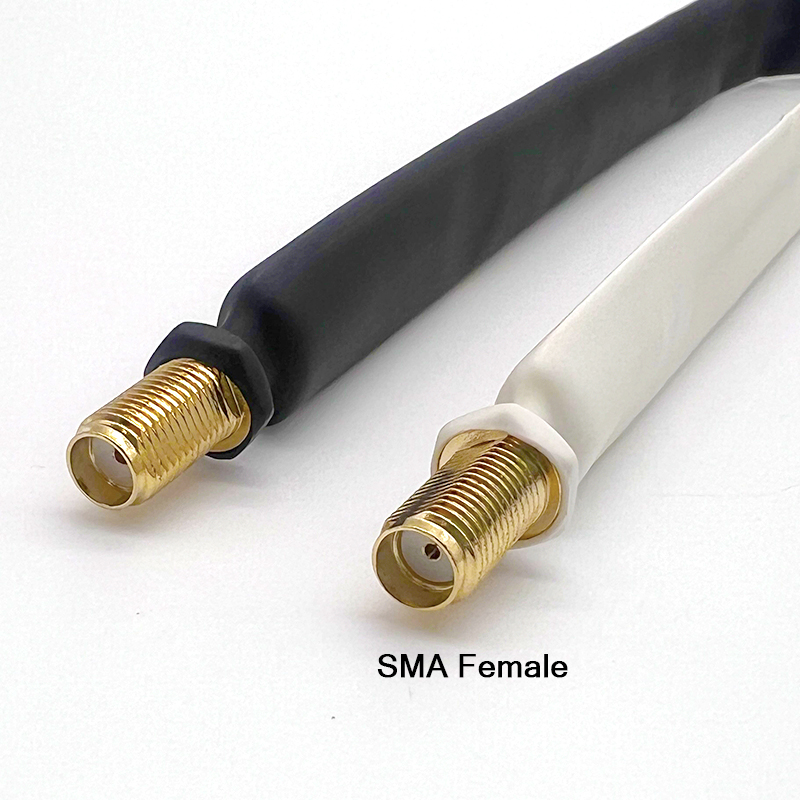

Connector Type: SMA Male to SMA Female

Interface Standard: SMA

Frequency Range: DC to 6 GHz

Impedance: 50 Ohm

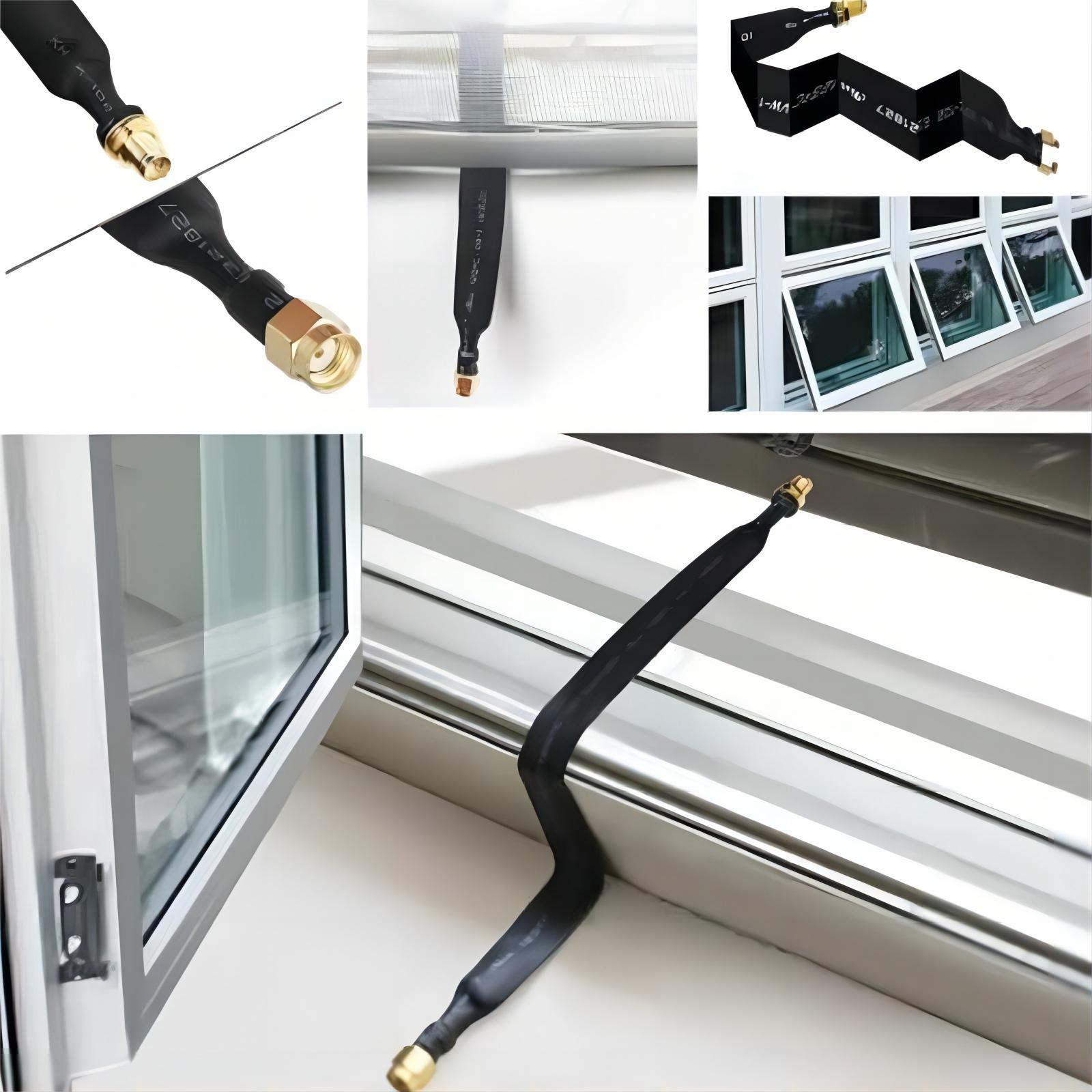

Application: Antenna extension, window bypass, through-wall signal routing

Typical Use: Indoor-to-outdoor RF transmission, router antenna installation, signal booster, IoT device

Data Rate: High-frequency RF analog or digital signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Brass alloy

Housing Color: Gold-plated connectors with black and white cable jackets

Latch Type: Threaded coupling

Cable Type: Flat Window Jumper Cable (ultra-thin coaxial)

Cable Length: 25cm (customizable)

Cable Thickness: ~1.13mm (flat fiberglass core)

Jacket Material: PE, waterproof dual-layer

Insulation Material: PE

Shielding: Aluminum foil + braided copper

Shielding Effectiveness: ≥90dB

Temperature Range: -20°C ~ +80°C

Waterproof Rating: IP65

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥500 mating cycles

Assembly Method: Factory molded and sealed

Electrical Performance: Low-loss, stable signal transmission

EMI Protection: Excellent

Vibration Resistance: Good

Industry Standard: SMA, coaxial feedthrough

Country of Origin: China

Customization: Cable length, jacket color, SMA orientation, labeling

Storage Conditions: Dry and protected from UV

Weight: ~18g

Packaging: Zip-lock PE bag or OEM/customized

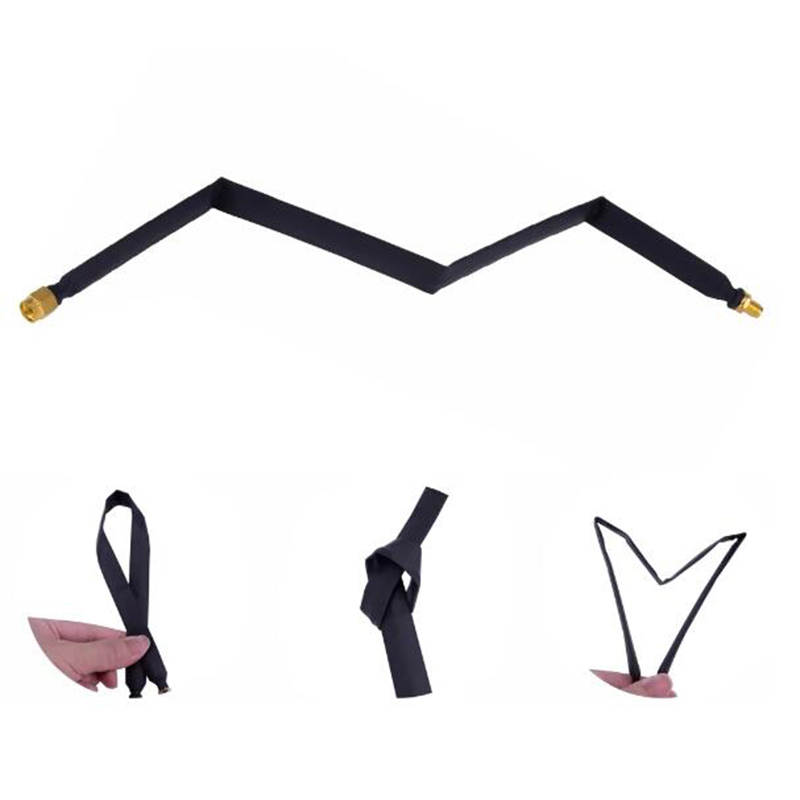

Special Features: No drilling needed, ultra-flat passthrough design, dual waterproof sealing
