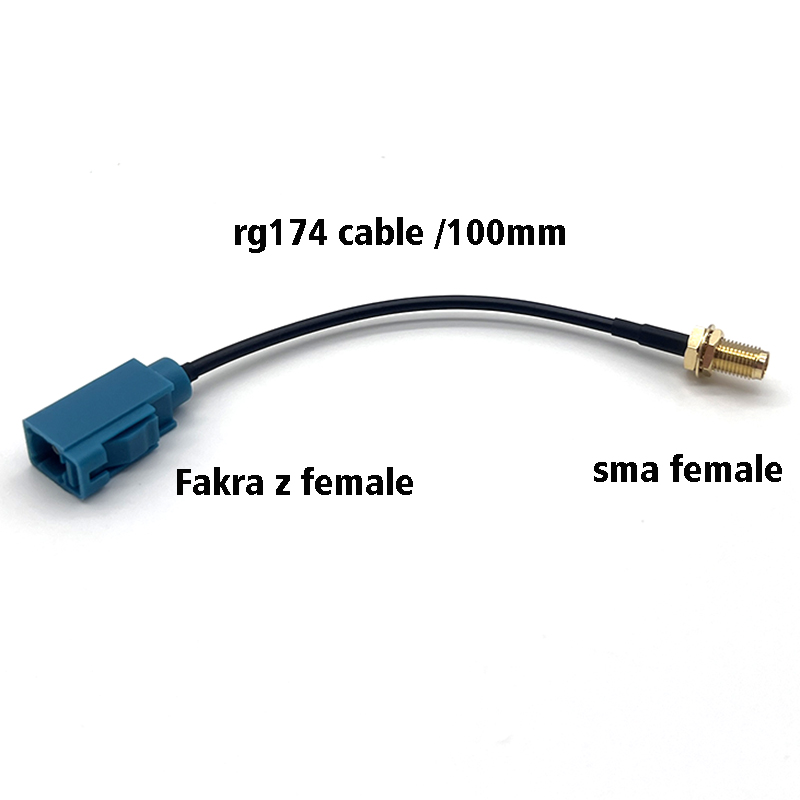

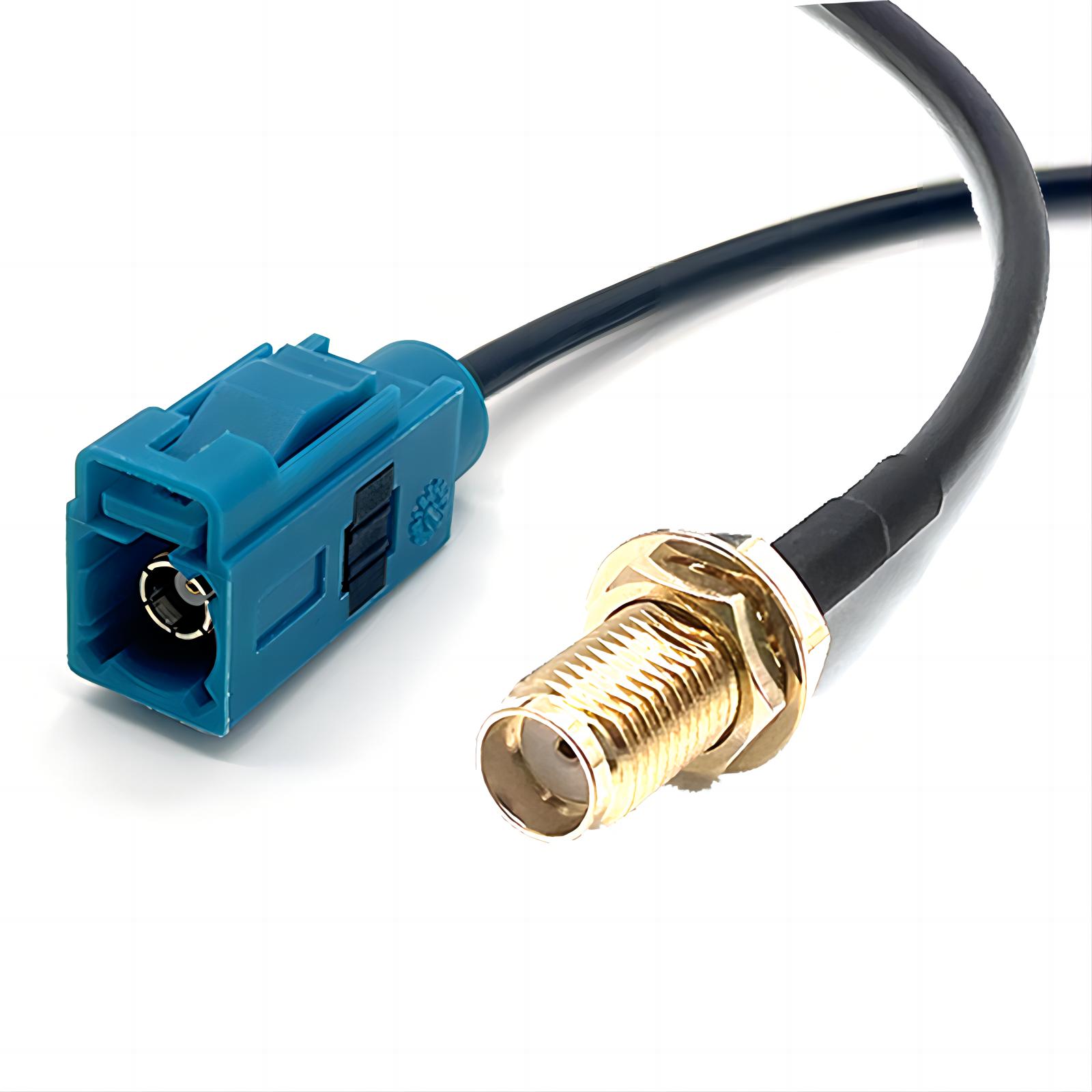

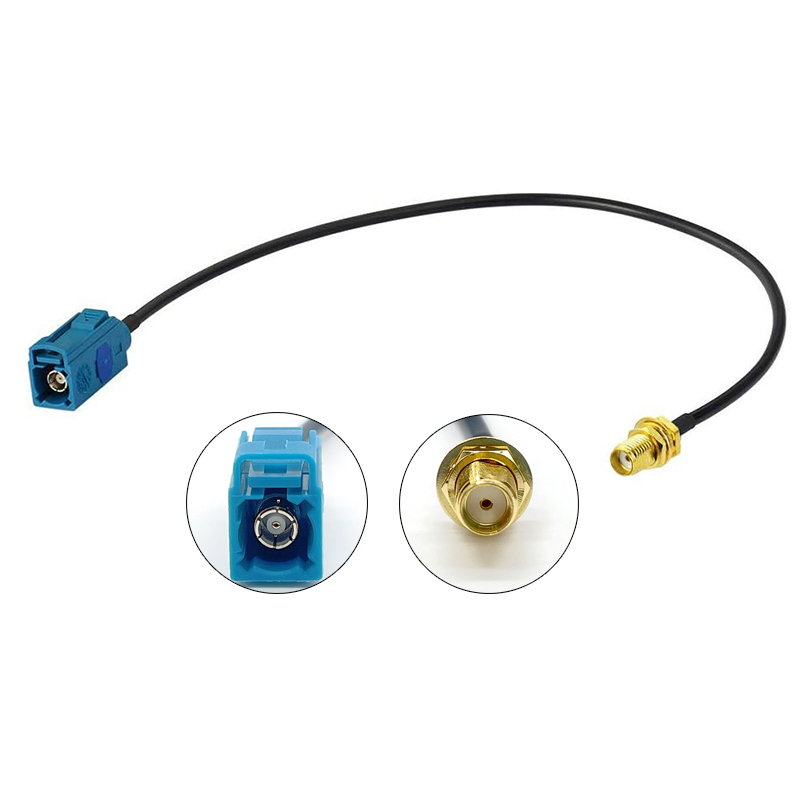

Product Name: Mini FAKRA Z Female to SMA Female Bulkhead Vehicle Antenna Adapter RG174 Coaxial Cable

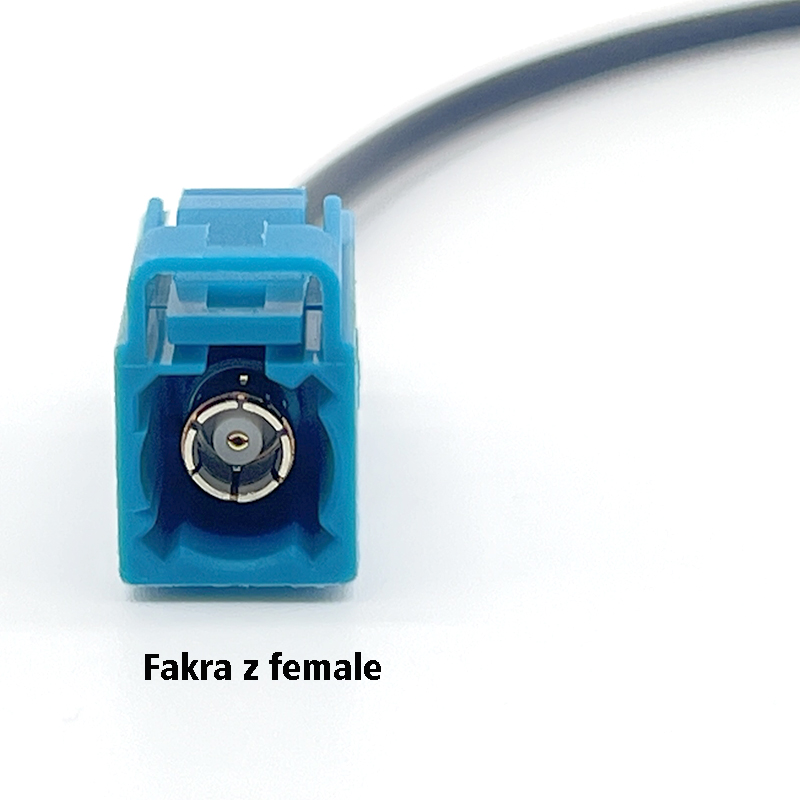

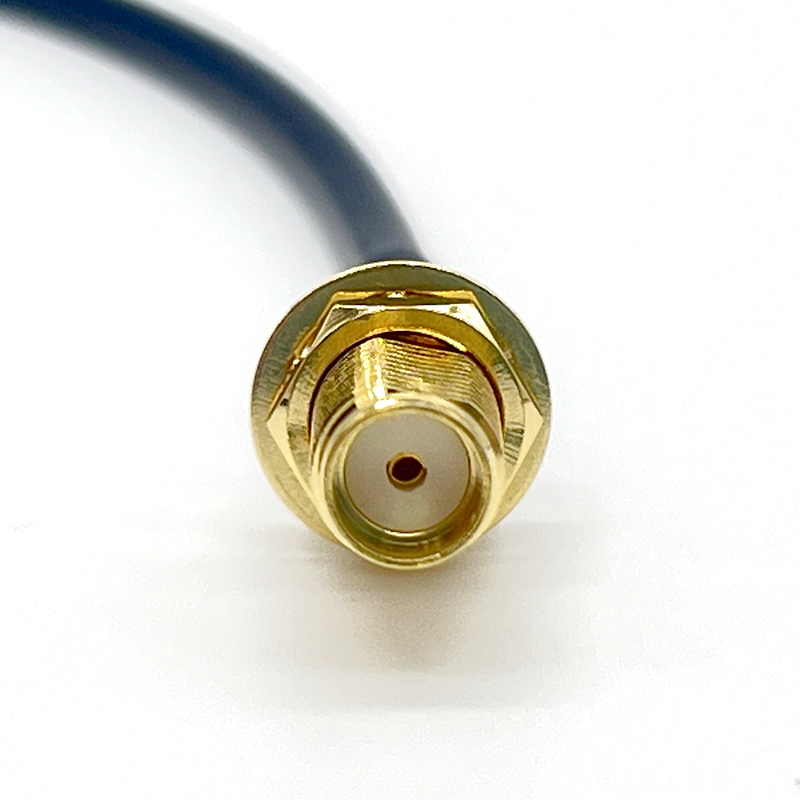

Connector Type: Mini FAKRA Z Female to SMA Female Bulkhead

Interface Standard: Mini FAKRA Z Code, SMA

Frequency Range: DC to 6 GHz

Impedance: 50 Ohm

Application: DAB antenna, GPS, FM radio, navigation, vehicle antenna systems

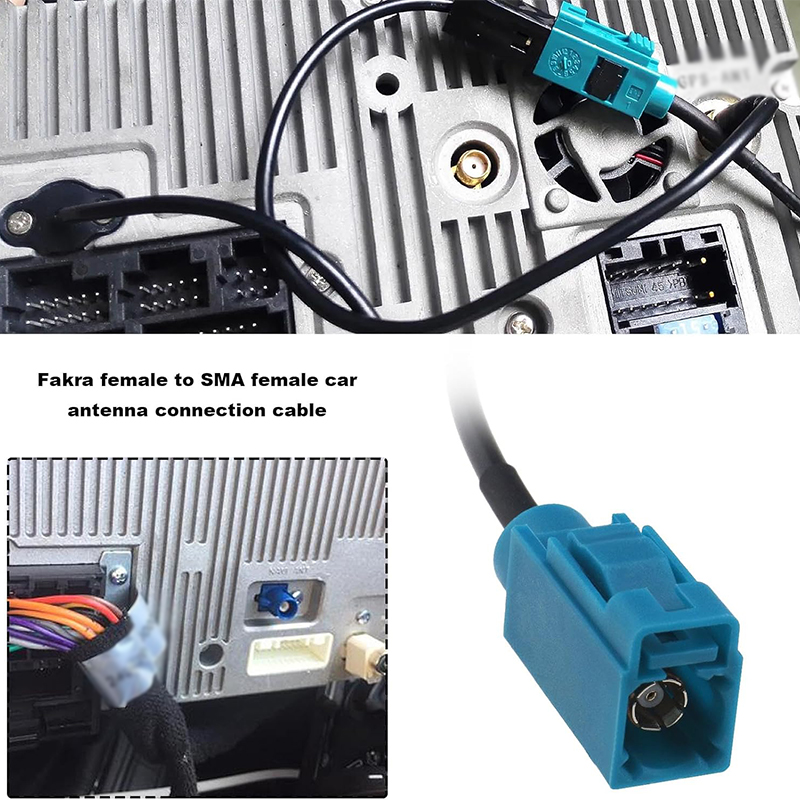

Typical Use: Automotive multimedia, infotainment, antenna relocation, telematics

Data Rate: High-frequency analog or digital signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66) and brass alloy

Housing Color: Blue (Mini FAKRA) & gold (SMA)

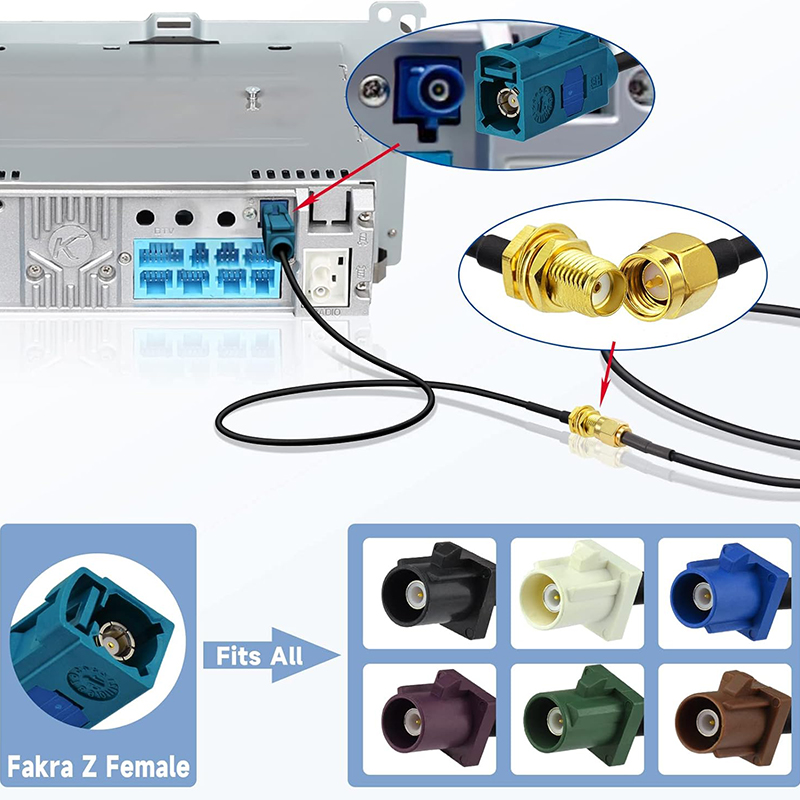

Coding Key: Z Coding

Latch Type: Push-pull locking (FAKRA), Threaded coupling (SMA)

Cable Type: RG174 Coaxial Cable

Cable Length: 30cm (customizable)

Jacket Material: PVC

Insulation Material: PE

Shielding: Braided copper

Shielding Effectiveness: ≥85dB

Temperature Range: -40°C ~ +85°C

Waterproof Rating: IP67 (FAKRA end when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥500 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: Stable high-frequency signal

EMI Protection: Excellent

Vibration Resistance: Excellent

Industry Standard: ISO 20860, Mini FAKRA, SMA

Country of Origin: China

Customization: Cable length, coding, connector type, packaging

Storage Conditions: Dry and ventilated

Weight: ~30g

Packaging: PE bag or customized
