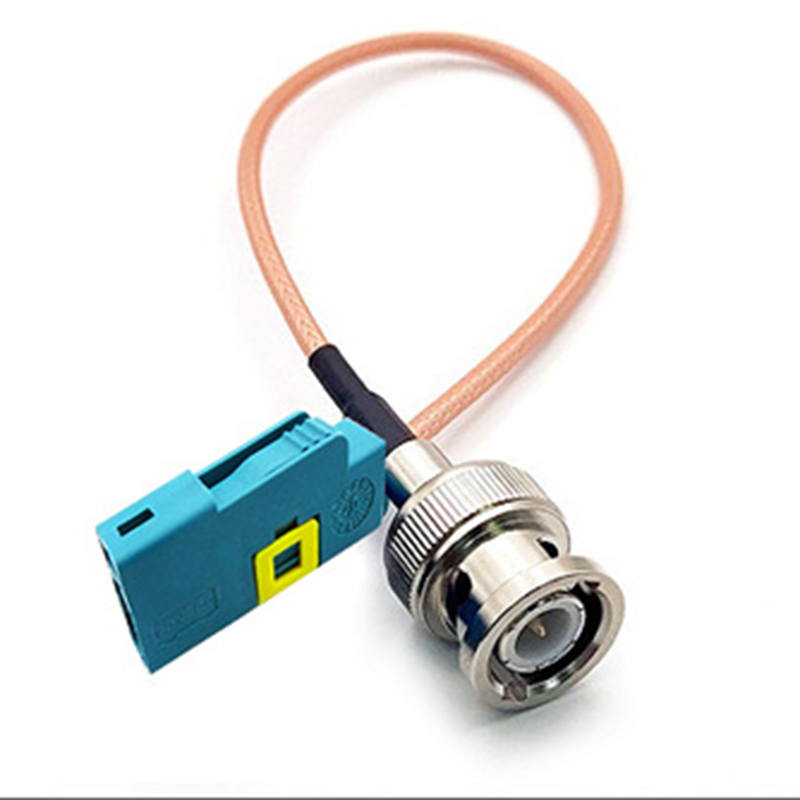

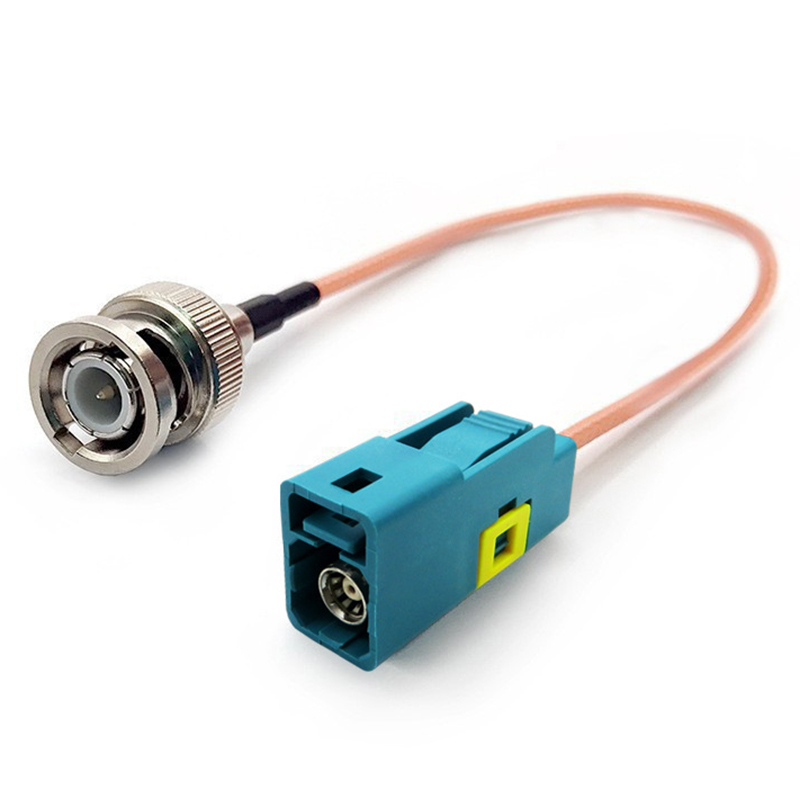

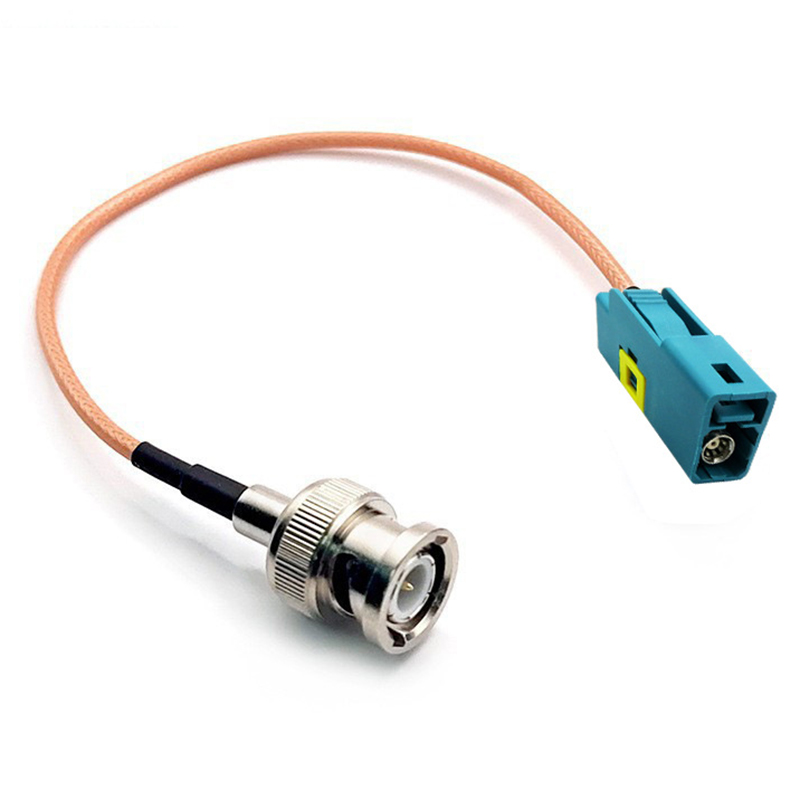

Product Name: Mini-FAKRA Z Type Female to BNC Male RF Communication Antenna Cable

Connector Type: Mini-FAKRA Z Code Female to BNC Male

Interface Standard: Mini-FAKRA Z Code, BNC

Frequency Range: DC to 6 GHz

Impedance: 50 Ohm

Application: Communication antenna, in-vehicle RF systems, video transmission, navigation, camera

Typical Use: Automotive camera interface, video transmission, RF equipment interconnection

Data Rate: High-frequency analog or digital signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66)

Housing Color: Blue with yellow coding

Coding Key: Z Coding

Latch Type: Push-pull locking (FAKRA), Bayonet lock (BNC)

Cable Type: RG316 Coaxial Cable

Cable Length: 30cm (customizable)

Jacket Material: FEP

Insulation Material: PTFE

Shielding: Braided silver copper

Shielding Effectiveness: ≥90dB

Temperature Range: -40°C ~ +105°C

Waterproof Rating: IP67 (FAKRA end when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥1000 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: Low-loss, stable high-frequency signal

EMI Protection: Excellent

Vibration Resistance: Excellent

Industry Standard: ISO 20860, Mini-FAKRA, BNC

Country of Origin: China

Customization: Length, coding, connector type, packaging

Storage Conditions: Dry and ventilated

Weight: ~35g

Packaging: PE bag or customized
