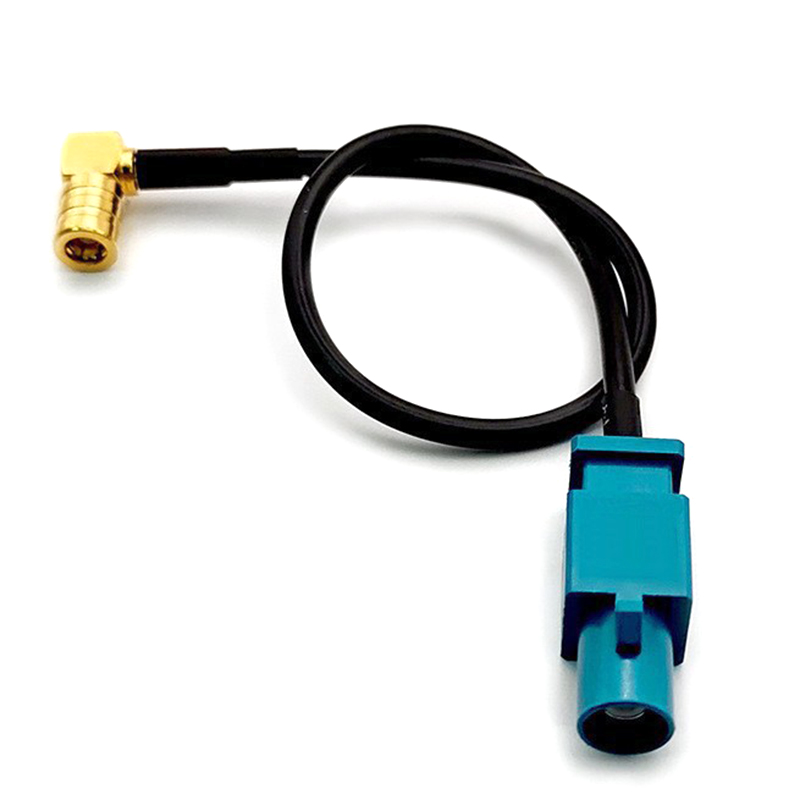

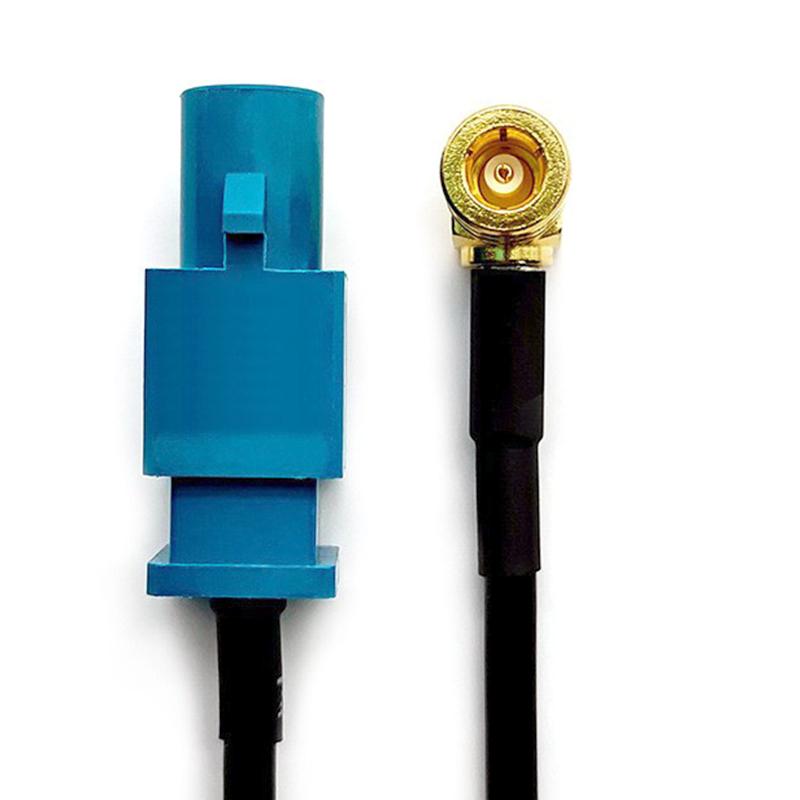

Product Name: Mini-FAKRA Z Code Male to SMB Female Right Angle RF Coaxial Antenna Cable

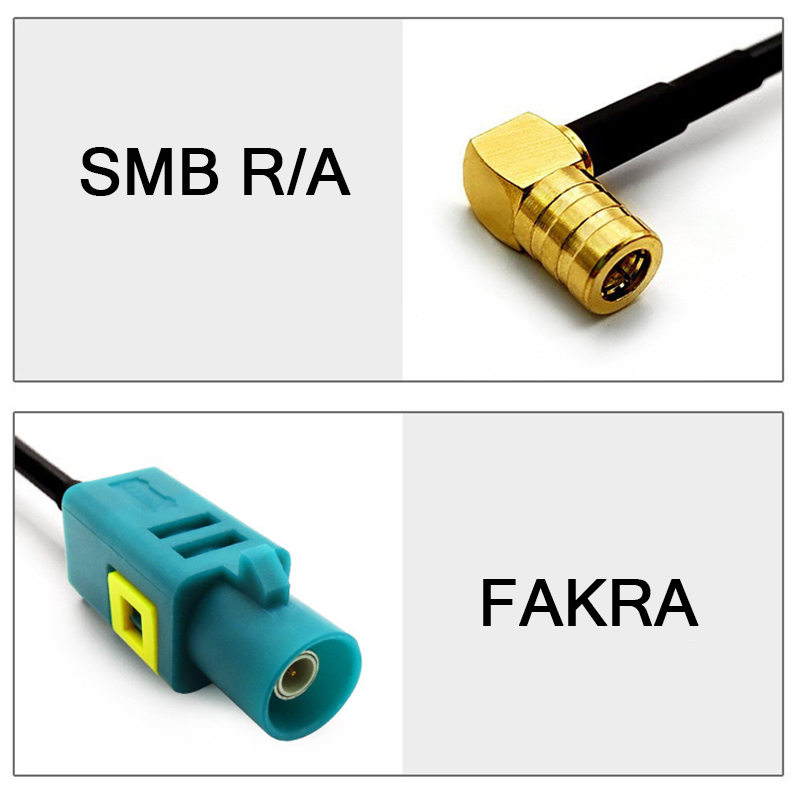

Connector Type: Mini-FAKRA Z Code Male to SMB Female Right Angle

Interface Standard: Mini-FAKRA Z Code, SMB

Frequency Range: DC to 6 GHz

Impedance: 50 Ohm

Application: Communication antenna, automotive RF, navigation, GNSS, GPS, video transmission

Typical Use: In-vehicle antenna system, GPS, infotainment modules, telematics

Data Rate: High-frequency analog or digital signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66)

Housing Color: Blue (Mini-FAKRA standard)

Coding Key: Z Coding

Latch Type: Push-pull locking (FAKRA), Snap-on (SMB)

Cable Type: RG174 Coaxial Cable

Cable Length: 30cm (customizable)

Jacket Material: PVC

Insulation Material: PE

Shielding: Braided copper

Shielding Effectiveness: ≥85dB

Temperature Range: -40°C ~ +85°C

Waterproof Rating: IP67 (Mini-FAKRA end when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥500 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: Stable signal transmission

EMI Protection: Excellent

Vibration Resistance: Excellent

Industry Standard: ISO 20860, Mini-FAKRA, SMB

Country of Origin: China

Customization: Cable length, coding, connector type, packaging

Storage Conditions: Dry and ventilated

Weight: ~30g

Packaging: PE bag or customized
