What is a USB to RJ45 console cable?

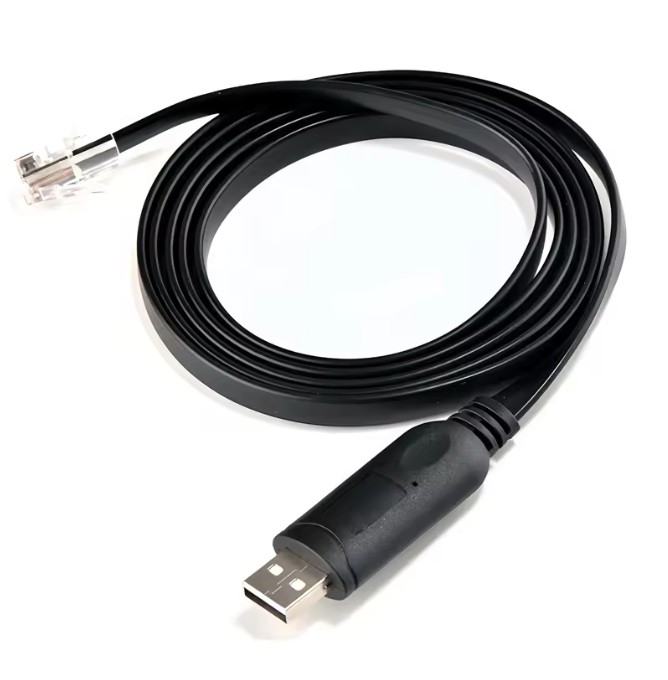

When dealing with modern networking hardware, one of the most essential accessories for system administrators is the USB to RJ45 console cable. This specialized connector bridges the gap between computers and networking devices such as switches, firewalls, and routers, enabling direct configuration and troubleshooting. But what exactly makes this type of cable so important?
.jpg)
1. Definition and Purpose
A USB to RJ45 console cable is a serial communication cable that allows engineers to connect a laptop or desktop via USB port to the console port of a networking device. Traditionally, legacy computers featured serial ports for this purpose. However, as USB has become the universal standard, manufacturers introduced adapters like the console cable with FTDI FT232RL chipset to ensure compatibility.
2. Key Features
These cables are not ordinary network patch cords. Instead, they are built with specialized chips that convert USB signals into serial signals.
Compatibility: Works with leading brands such as Cisco, Huawei, and Juniper.
Driver Support: Most modern versions are plug-and-play with Windows, macOS, and Linux.
Versatility: Supports different device types by using a rollover cable pinout standard.
For instance, many engineers rely on a Cisco router cable USB interface to enter the command-line environment for network configuration tasks.
3. Use Cases in Network Configuration
Network administrators rely on USB console cables for:
Initial Setup: When a router or switch is shipped from the factory, it may not have IP settings configured.
Firmware Updates: Allows secure upgrade processes without depending on the network itself.
Troubleshooting: Provides direct access to system logs and diagnostic tools.
An industrial-grade USB serial adapter can be invaluable when deploying equipment in data centers or remote fieldwork environments.
4. Types of Console Cables
While all serve the same function, several variations exist:
Standard rollover cable: Uses RJ45 connectors with reversed wiring.
FTDI FT232R USB to RJ45 console cable: A reliable option with robust chipset support.
USB A to RJ-45 rollover console cable: Designed for laptops without legacy ports.
Cisco compatible console cable USB-A: Offers seamless plug-and-play integration.
Each version ensures that engineers can interact with network device console interfaces regardless of hardware changes.
5. Why It Matters Today
As enterprises expand their IT infrastructure, managing dozens—or even hundreds—of switches and routers becomes more complex. Without a reliable console connection, it is impossible to configure devices during deployment. This is why IT professionals keep a USB console cable with chip FTDI FT232RL in their toolkit.
Notably, these cables also improve reliability in field operations. For example, a ruggedized console cable for field work ensures durability in outdoor environments where traditional connectors may fail.
6. Practical Example
Imagine a network engineer at a data center preparing a new rack of Cisco switches. Before connecting to the corporate LAN, the switches must be configured with security and routing parameters. By using a serial console cable with USB bridge, the engineer can quickly log in, adjust settings, and verify stability before deployment.
7. Limitations and Considerations
Although extremely useful, console cables are not substitutes for Ethernet patch cables. They are only intended for out-of-band management. In addition, some operating systems require proper FTDI drivers for flawless operation.
Conclusion
A USB to RJ45 console cable is a must-have tool for any professional working with enterprise networking equipment. From initial setup to emergency troubleshooting, these cables serve as the backbone of direct device access.
👉 In the next discussion, we will look deeper into another critical accessory: What is an FTDI cable?
