How to connect serial console cable?

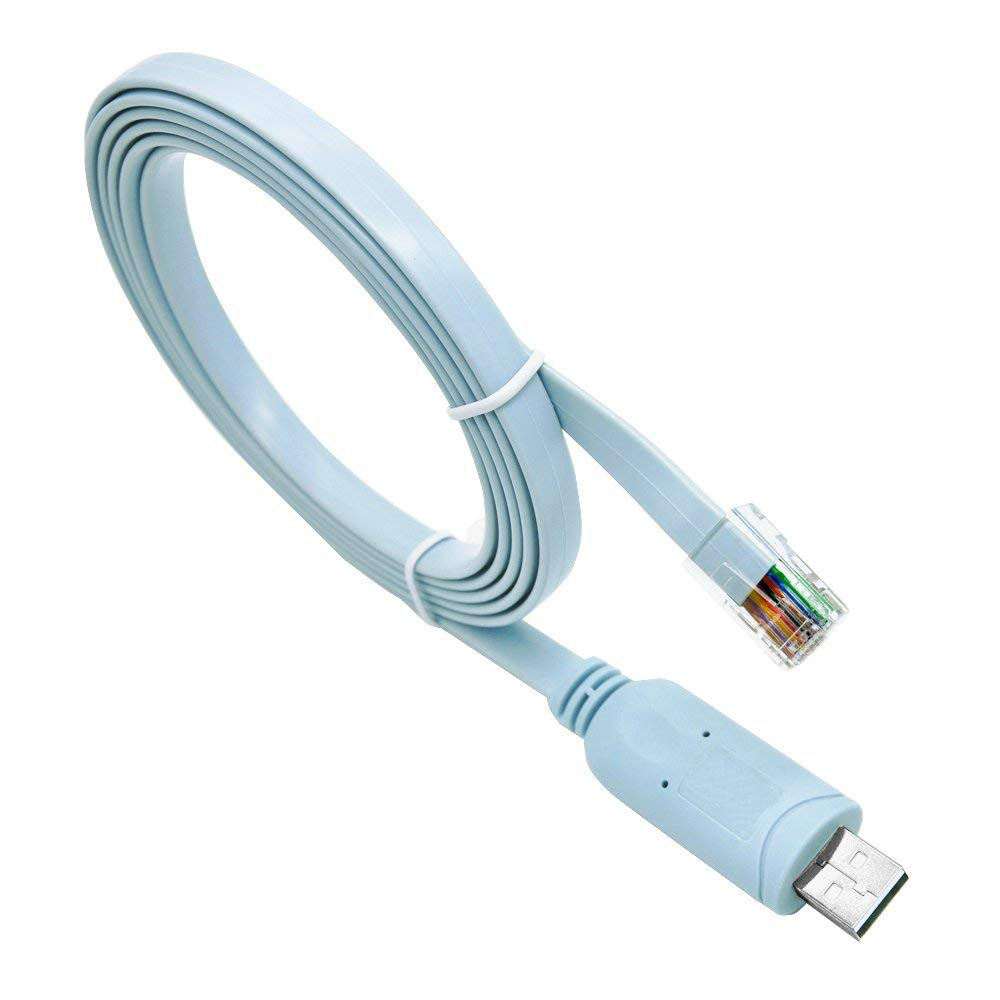

Network engineers frequently rely on a serial console cable when configuring or troubleshooting enterprise equipment such as Cisco routers and switches. While Ethernet cables establish network connectivity, a serial console cable creates a direct management channel that bypasses network traffic entirely. This article explains step by step how to connect and use a serial console cable effectively, with special focus on the USB to RJ45 Console Cable with FTDI Chip Compatible with Cisco Router Switches.
.jpg)
.jpg)
1. Why Use a Serial Console Cable?
Initial setup, troubleshooting, firmware recovery, and secure sessions all require direct console access.
2. Tools You Need
A USB to RJ45 Console Cable with FTDI Chip Compatible with Cisco Router Switches, a laptop, terminal software, and access to the router or switch console port.
3. Step-by-Step Connection Guide
Connect the USB end to your laptop.
Connect the RJ45 end to the device console port.
Install FTDI drivers if needed.
Launch terminal software (e.g., PuTTY).
Configure settings: 9600 bps, 8N1, no flow control.
Open the session and start configuring.
4. Why the FTDI Chip Matters
The USB to RJ45 Console Cable with FTDI Chip Compatible with Cisco Router Switches ensures stable, cross-platform connectivity, unlike cheaper models without FTDI.
5. Best Practices
Label your cables, test before deployment, keep spares, and use shielded cables.
6. Common Issues and Solutions
No COM port detected → reinstall drivers. Garbled characters → check baud rate. Disconnections → switch to FTDI cable.
7. Conclusion
Connecting a serial console cable is straightforward once you know the steps. With the right cable, such as the USB to RJ45 Console Cable with FTDI Chip Compatible with Cisco Router Switches, you can reliably configure and troubleshoot Cisco equipment.
