How Does EPS Power Steering Work?

Electric Power Steering (EPS) has become the standard steering technology in modern vehicles, replacing traditional hydraulic systems with a smarter, more efficient, and electronically controlled setup. But how exactly does EPS work, and what makes it more advanced than older systems? Let’s break down the science and engineering behind EPS.

1. The Core Principle of EPS

At its core, EPS uses an electric motor instead of a hydraulic pump to provide steering assistance. The system detects how much force the driver applies to the steering wheel and then uses that data to determine how much assistance to provide. The amount of electric assist depends on factors like vehicle speed, torque input, and road conditions.

The EPS ECU (Electronic Control Unit) is the brain of the system. It processes sensor data and sends power commands to the motor through high-efficiency cables such as the EPS motor phase cable assembly and Battery to EPS fuse/relay lead. This combination allows precise control over steering feel and response, improving both comfort and safety.

2. Key Components of an EPS System

• Torque Sensor – Measures the twisting force applied to the steering wheel, using a shielded line like the EPS torque sensor shielded twisted pair for accurate data transmission.

• Electric Motor – Provides the actual steering assist. Depending on the design, it can be mounted on the steering column, rack, or pinion.

• Control Unit (ECU) – Processes sensor signals and calculates the necessary assistance level.

• Power Supply Network – Includes high-voltage lines such as the 48 V micro-hybrid EPS power cable for hybrid or EV applications.

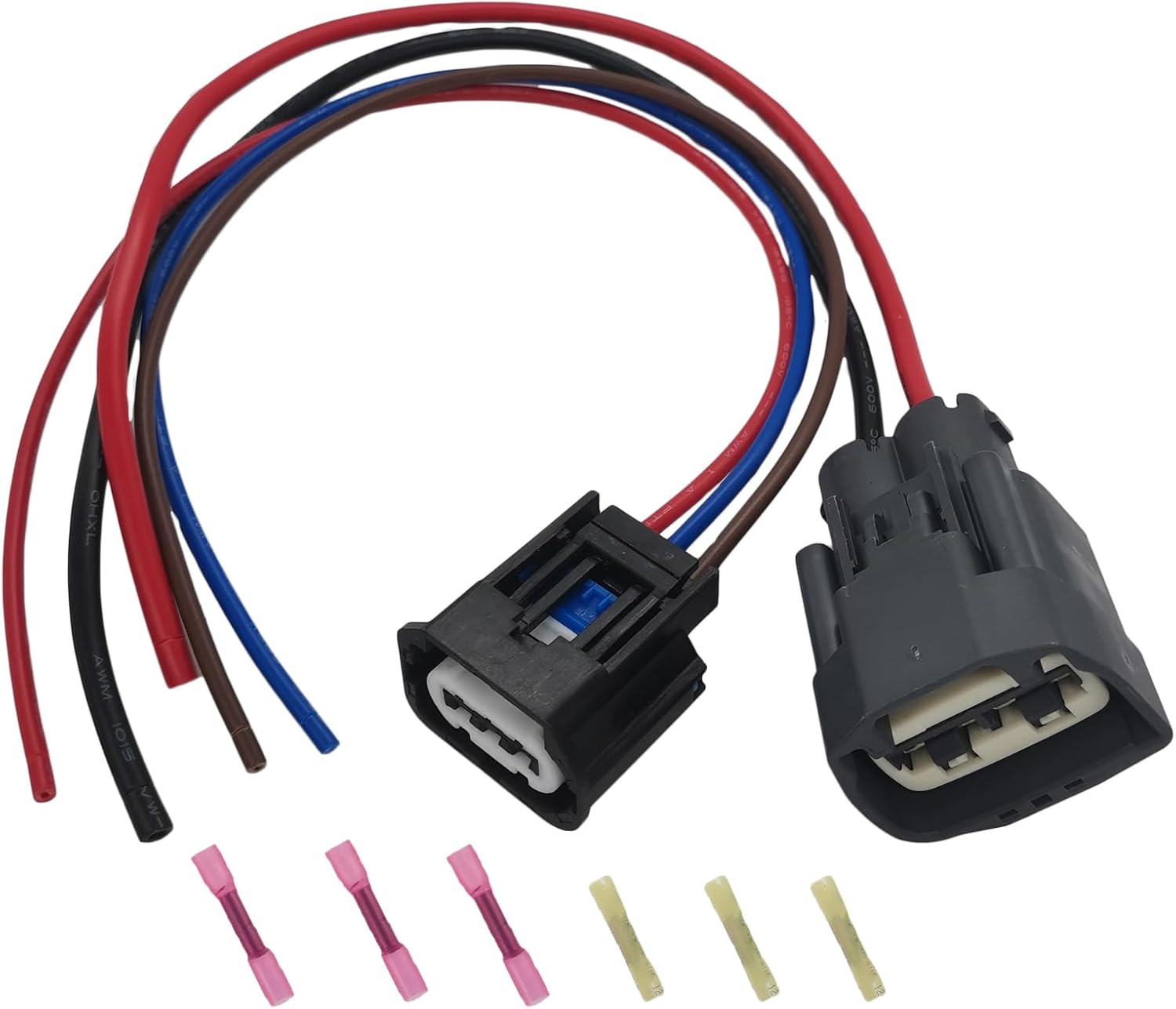

• Wiring Looms and Pigtails – Components like the Column-assist EPS wiring loom and EPS control unit pigtail ensure clean communication and stable power delivery.

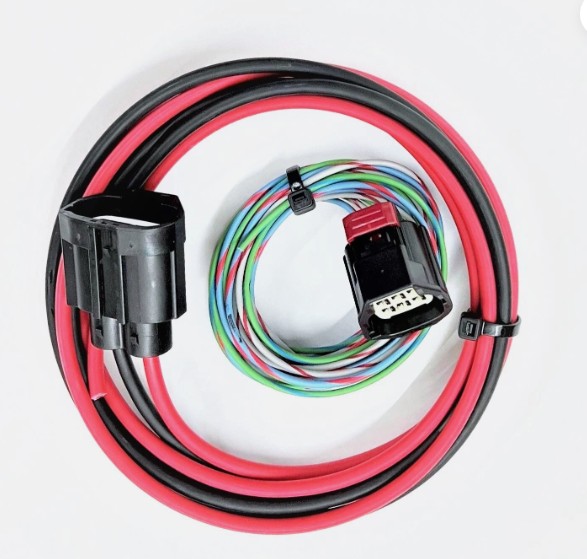

Each of these elements is connected through a Professional Customization EPS Electric Power Steering Automotive Wiring Harness, which ensures reliable and interference-free operation even in harsh environments.

3. How Electronic Control Creates Smooth Steering

EPS is more than just an electric motor—it’s an adaptive system that continuously adjusts based on your driving. Here’s how it works step by step:

1. Input Detection: When you turn the steering wheel, the torque sensor detects the applied force.

2. Signal Processing: The sensor sends this information to the ECU through shielded twisted-pair lines.

3. Power Command: The ECU calculates the required assist level and sends current to the motor via the EPS motor phase cable assembly.

4. Steering Assistance: The motor delivers torque to the steering column, reducing the driver’s effort.

5. Feedback Monitoring: The ECU constantly monitors motor speed, current, and temperature, ensuring consistent performance.

The result? Smooth, responsive, and energy-efficient steering at all times.

4. Advantages of EPS over Hydraulic Systems

• Efficiency: No engine-driven pump means less fuel consumption.

• Precision: Digital control enables variable assist levels based on speed and conditions.

• Maintenance-Free: Fewer moving parts mean lower long-term maintenance costs.

• Eco-Friendly: Reduced hydraulic fluid use makes it more environmentally sustainable.

• Integration: Compatible with advanced driver-assistance systems (ADAS) and lane-keeping technology.

These advantages make EPS essential for modern vehicles, especially hybrids and EVs, where electrical systems dominate.

5. The Role of Wiring and Connectivity

One often overlooked factor in EPS reliability is the wiring system. The Column-assist EPS wiring loom connects critical sensors and motor control circuits, ensuring consistent data flow. The EPS control unit pigtail links the ECU to power and communication modules, while the Battery to EPS fuse/relay lead ensures power safety.

In hybrid vehicles, the 48 V micro-hybrid EPS power cable delivers stable energy, while the Professional Customization EPS Electric Power Steering Automotive Wiring Harness allows manufacturers to tailor layout and shielding for maximum performance and safety.

6. Future of EPS Technology

The future of EPS is moving toward full steer-by-wire systems—where there’s no physical connection between the steering wheel and the wheels. Instead, all steering input is processed electronically through sensors and actuators. Current EPS systems already lay the groundwork for this evolution, offering precision and reliability that traditional setups could never achieve.

The EPS ECU’s ability to interpret thousands of data points per second makes it a central player in autonomous vehicle steering systems. Expect to see next-generation EPS setups integrating AI algorithms for real-time road adaptation and predictive steering correction.

7. Conclusion

EPS isn’t just about convenience—it’s a cornerstone of modern vehicle safety and control. From the EPS torque sensor shielded twisted pair to the EPS motor phase cable assembly, each component contributes to a seamless, adaptive driving experience. By using digitally controlled assistance and high-efficiency wiring like the Professional Customization EPS Electric Power Steering Automotive Wiring Harness, the system offers the perfect balance of power, precision, and reliability.
