How Does ABS Wiring Work?

How Does ABS Wiring Work?

The Anti-lock Braking System (ABS) is one of the most critical safety technologies in modern vehicles. It prevents the wheels from locking during sudden braking, maintaining steering control and reducing stopping distance. While most drivers know the system exists, few understand how the ABS wiring network makes it all function — transmitting electrical signals that keep you safe every time you hit the brakes.

1. The Foundation: How ABS Sensors Communicate

The heart of the ABS system lies in its wheel-speed sensors, each mounted close to a toothed tone ring or magnetic encoder on the wheel hub. These sensors detect wheel rotation and send electrical pulses through a wheel-speed sensor harness to the ABS control module.

Each wheel has its own dedicated line — wheel-speed sensor harness front left, front right, rear left, and rear right — ensuring individual monitoring and real-time data. These signals tell the control unit how fast each wheel spins, which allows it to detect potential lockup before it happens.

In advanced vehicles, Active Hall-effect ABS sensor leads replace older passive designs. They can detect both speed and direction, providing faster, more accurate feedback.

2. The ABS Control Circuit

The signals from all four sensors converge into the ESC control module harness, which houses the Electronic Stability Control (ESC) and ABS computers. Here, the system analyzes data and determines whether one or more wheels are decelerating too rapidly.

If wheel slip is detected, the control module activates the ABS modulator pump harness and HCU (Hydraulic Control Unit) harness to regulate brake fluid pressure. This rapid modulation prevents wheel lock while maintaining maximum traction.

At the same time, the Brake pressure sensor pigtail and Master cylinder pressure transducer lead monitor the driver’s braking force, ensuring balanced hydraulic control across all four wheels.

3. Wiring Design and Power Flow

The ABS wiring harness operates as the central nervous system of the braking electronics. Power typically originates from a fused circuit connected to the vehicle’s battery and ignition system.

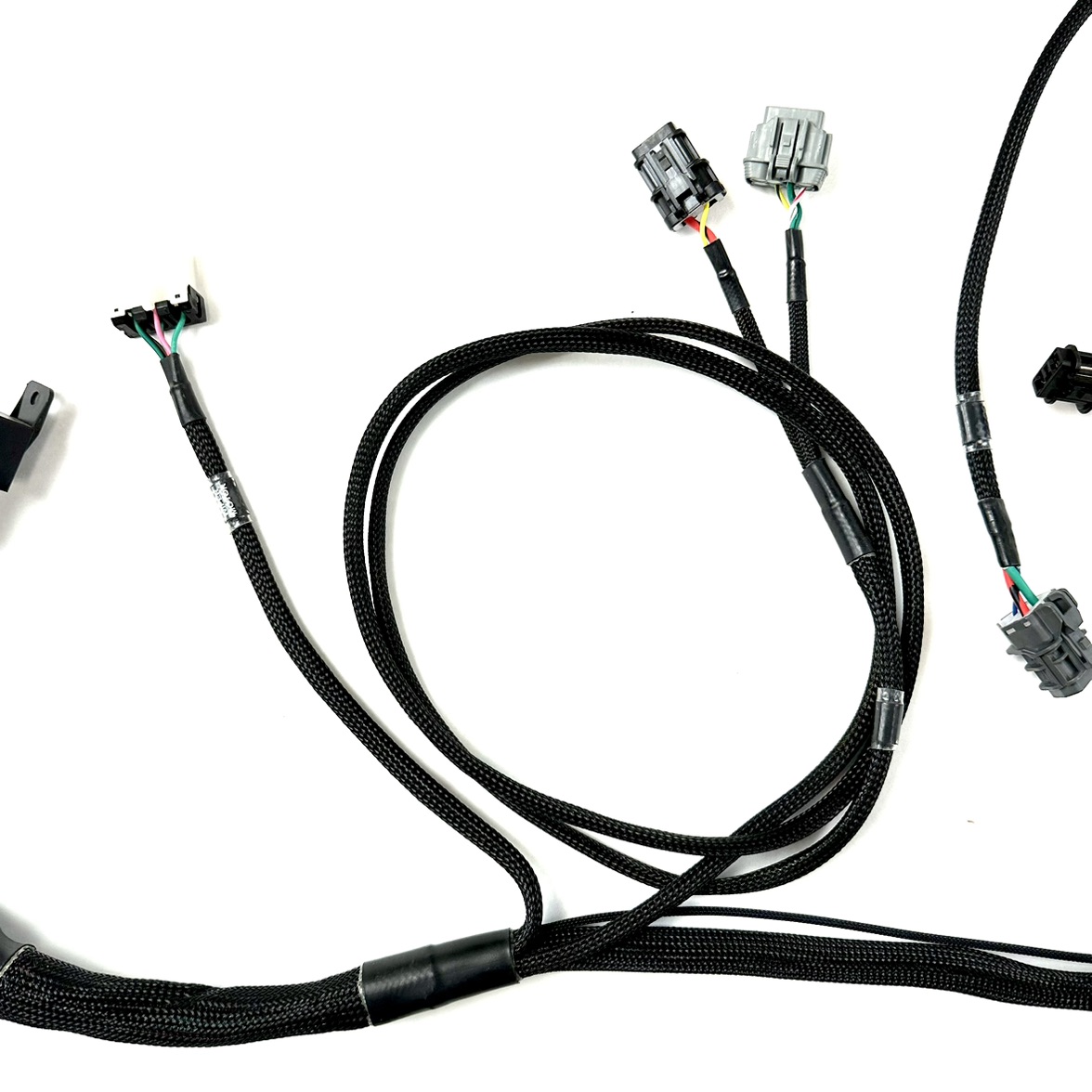

The Custom Connect ABS/ESP system automotive chassis wiring harness then distributes this power to the sensors, hydraulic unit, and electronic control modules. The system includes:

• Signal wires (for sensor communication)

• Ground wires (for system stability)

• Power feeds (for pump and module operation)

The wiring must be perfectly shielded to prevent electromagnetic interference, especially near high-current components like the ABS modulator pump harness. In performance or commercial vehicles, manufacturers often install a Custom ABS/ESP chassis wiring harness to withstand high temperatures, vibration, and road debris.

4. The Hydraulic-Electronic Integration

The interaction between the electronic and hydraulic systems is what makes ABS so effective. When the control unit detects rapid deceleration in a wheel, it activates solenoid valves in the HCU harness, which release or apply brake pressure to that wheel.

Simultaneously, the ESC control module harness and ABS modulator pump harness maintain communication loops, allowing pressure to adjust up to 20 times per second. This rapid electrical-hydraulic coordination is what prevents the wheels from locking and keeps the car stable.

In advanced systems, the Custom Connect ABS/ESP system automotive chassis wiring harness integrates the ABS, ESC, and traction control functions into a single communication bus — ensuring that stability corrections occur in real time, without lag.

5. Common Wiring Issues and Diagnostics

Like any electrical system, ABS wiring can degrade over time due to heat, moisture, and vibration. Some of the most common wiring faults include:

• Broken or corroded wheel-speed sensor harness connectors.

• Damaged brake pressure sensor pigtails or loose terminals.

• Faulty grounding in the HCU harness, leading to intermittent system faults.

Technicians use digital multimeters or scan tools to test circuit resistance and continuity. A single damaged wire can trigger the ABS or ESC warning lights, even if all sensors are working correctly.

Replacing worn connectors with high-quality, sealed versions — particularly OEM or Custom ABS/ESP chassis wiring harness assemblies — ensures long-term reliability and signal integrity.

6. The Role of ABS Wiring in Vehicle Dynamics

ABS wiring doesn’t just manage braking — it supports multiple vehicle stability systems:

• ESC (Electronic Stability Control): Uses sensor data to adjust braking for understeer or oversteer.

• TCS (Traction Control System): Prevents wheel spin by modulating torque and brake pressure.

• Adaptive Braking Systems: In luxury or electric vehicles, integrates regenerative braking with hydraulic braking.

All these systems depend on high-fidelity electrical signals carried through the Active Hall-effect ABS sensor lead and related harnesses. A stable electrical link ensures smooth communication between mechanical motion and electronic control.

7. Future Trends: Smart ABS Wiring Systems

As automotive electronics advance, ABS wiring systems are evolving into “smart networks.” These include:

• Self-diagnostic harnesses that detect short circuits or voltage drops automatically.

• Fiber-optic signal transmission for faster communication.

• Integrated sensor modules that reduce wiring complexity and improve durability.

Future Custom Connect ABS/ESP system automotive chassis wiring harnesses will likely feature embedded sensors capable of monitoring temperature, resistance, and even vibration, providing real-time health monitoring of the braking system.

👉 Keep Going

Now that you understand how ABS wiring transmits, powers, and regulates one of the most vital systems in your car, it’s time to explore how to handle real-world problems.

🔗 Comment réparer une panne ABS ESP ?
Discover in our next article — written in French — how to diagnose and fix ABS/ESP faults, from wiring issues to sensor calibration.
