How Do I Choose a Wiring Harness?

Choosing the right wiring harness for your car is not just about connecting wires — it’s about ensuring safety, reliability, and long-term performance. A well-designed harness protects your electrical system from overloads, enhances diagnostic efficiency, and ensures that all components communicate effectively. Whether you're upgrading your vehicle or designing a custom electrical system, selecting the correct harness is a crucial step in automotive engineering.

1. Understanding What You Need

Before purchasing or designing a harness, you must first identify your vehicle’s specific requirements:

• Purpose of the harness: Is it for the entire vehicle, or a specific subsystem (engine, dashboard, lighting, etc.)?

• Electrical load: Estimate the maximum voltage and current flow for each circuit.

• Vehicle environment: Will the harness be exposed to heat, moisture, vibration, or chemicals?

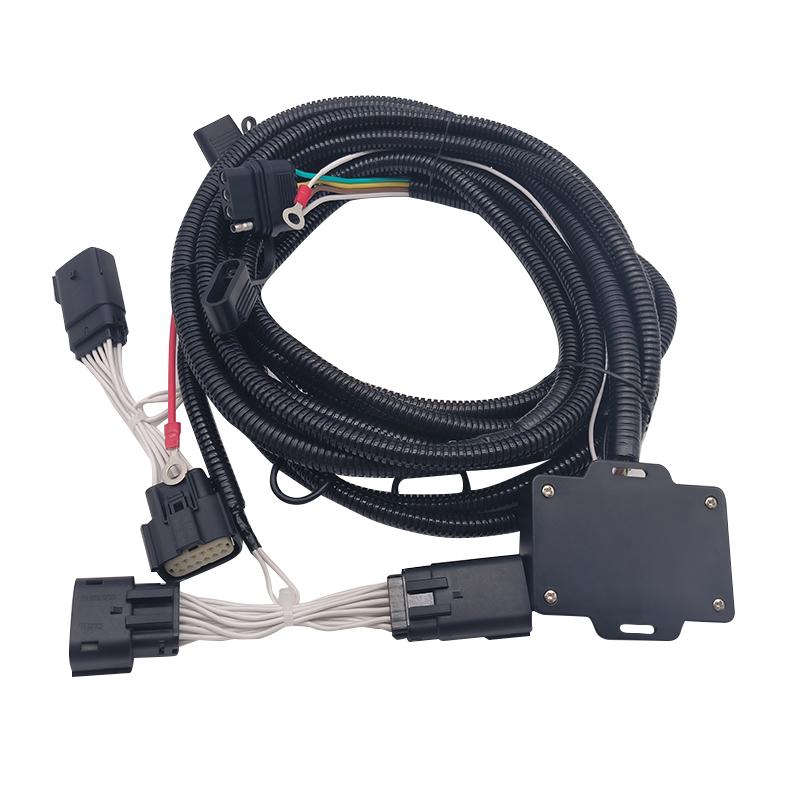

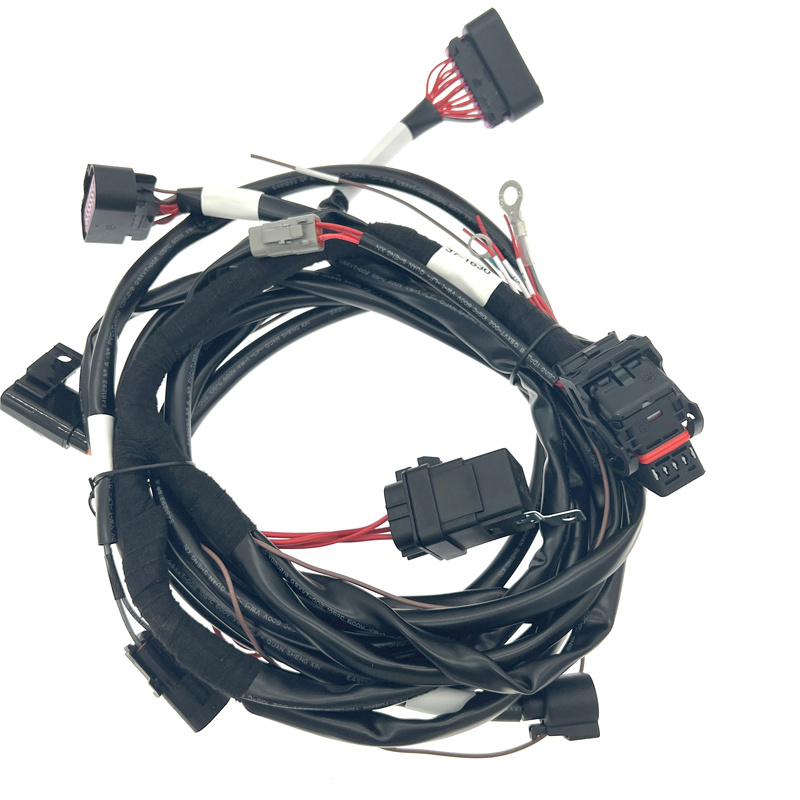

For demanding environments, such as engine bays or off-road vehicles, consider using a Custom Electrical Harness for Cars with Integrated Fuse Holder for Unmatched Safety and Reliability, which combines protective fusing with robust construction to resist harsh conditions.

2. Types of Wiring Harnesses to Consider

There are different types of wiring harnesses available for various automotive systems. Some of the most common include:

• Main wiring harness: Distributes power and signals to the entire car.

• Engine harness: Controls ignition, fuel injectors, and sensors.

• Lighting harness: Powers headlights, taillights, and indicators.

• Dashboard harness: Connects gauges, infotainment, and controls.

• Accessory harness: For custom add-ons such as cameras, LED lighting, or power amplifiers.

Selecting the correct type helps you avoid unnecessary complexity while improving system efficiency.

3. Pay Attention to Material and Insulation Quality

The materials used in a wiring harness determine its durability and electrical performance. Look for the following:

• Conductor material: High-purity copper is ideal for low resistance and flexibility.

• Insulation: Cross-linked polyethylene (XLPE) or PVC ensures temperature and chemical resistance.

• Shielding: Essential for data cables to prevent electromagnetic interference (EMI).

If your setup involves high-current circuits, consider a custom automotive wiring harness with integrated fuse holder, which adds protection against electrical surges and simplifies maintenance by localizing the fuse directly within the harness body.

4. Fuse and Safety Integration

One of the most important aspects of a modern wiring harness is fuse integration. Fuses prevent short circuits and protect sensitive electronics. A car electrical wiring harness with inline fuse box allows safe distribution of power while isolating faults automatically.

For performance or modified cars, a custom car wire harness with blade fuse holder is often preferred because it supports higher amperage and easier fuse replacement.

When choosing your harness, make sure the fuse configuration matches your vehicle’s voltage (12V or 24V) and current requirements.

5. Waterproofing and Environmental Protection

Moisture and dirt are the enemies of any electrical system. For vehicles exposed to rain, mud, or engine heat, waterproof harnesses are essential. A custom 12V car harness with waterproof fuse holder ensures safe operation even under extreme weather or pressure washing conditions.

Waterproofing also prevents oxidation of terminals, extending the harness lifespan and maintaining consistent electrical performance.

6. Customization and Modularity

If your vehicle includes aftermarket modifications — such as upgraded audio systems, off-road lighting, or custom ECUs — a standard harness may not suffice. In such cases, opt for a custom-built automotive power distribution harness with fuse module, which allows you to design specific branches and fuse ratings for each new device.

Customized harnesses reduce clutter, prevent mismatched connections, and simplify troubleshooting, particularly for complex systems.

7. Compatibility and Standards

Before installation, verify that your harness complies with relevant automotive standards such as ISO 6722 or SAE J1128. These ensure that materials, insulation, and performance meet global safety benchmarks.

Additionally, check compatibility with your vehicle’s connectors and terminal types — mismatched pins can lead to loose connections or electrical failure. A vehicle main harness with built-in fuse protection ensures compliance while minimizing assembly errors.

8. Testing and Verification

Before final installation, always perform:

• Continuity tests – Ensure every circuit connects correctly.

• Load tests – Verify the harness can handle expected current without overheating.

• Insulation resistance tests – Confirm no unintended shorts.

Testing ensures the harness will perform reliably in real-world conditions. Professional installers often use pre-certified harnesses with integrated fuses and modular protection systems for quicker, safer integration.

Conclusion

Selecting the right wiring harness for your car involves balancing technical precision with safety considerations. From choosing the correct wire gauge and insulation to integrating fuses and waterproof protection, every detail matters.

Whether it’s a Custom Electrical Harness for Cars with Integrated Fuse Holder for Unmatched Safety and Reliability, a modular automotive power distribution harness with fuse module, or a custom car wire harness with blade fuse holder, the key is to choose a design that guarantees durability, safety, and efficiency.
