What Cable to Use for LED Lights?

What Cable to Use for LED Lights?

Selecting the right cable for your LED lighting project is crucial for both performance and safety. Whether you are installing single-color LED strips, RGB setups, or LED appliances, using a proper Home Wiring Harness can significantly enhance durability, reduce voltage drops, and ensure consistent illumination. Understanding the cable types, insulation materials, and connector options will help you make an informed decision for your home LED installations.

Understanding Cable Types for LED Strips

For single-color LED strips, a standard two-conductor cable is sufficient. A 2Pin Home Wiring Harness or a Home LED Wiring Harness designed for single-color LED strips allows for a simple connection between the power supply and the LEDs. These cables are usually composed of PVC-insulated wires that are flexible, heat-resistant, and suitable for indoor applications. High-quality Home LED Cable Assemblies ensure secure connections, reducing the risk of loose contacts or flickering lights.

For RGB or multi-color LED strips, a 4Pin Home Wiring Harness or a Multi-Pin Wiring Harness for Home Appliances is required. Each pin corresponds to one color channel plus a shared positive voltage, ensuring accurate color mixing and dynamic lighting effects. Using a compatible LED Appliance Wiring Harness prevents miswiring and ensures each channel receives the correct current.

Insulation Materials and Durability

The insulation of the cable plays a significant role in longevity and safety. Common materials include:

• PVC Insulation: Affordable and widely used for indoor installations. Offers flexibility and moderate heat resistance.

• Silicone Insulation: Highly flexible, ideal for tight bends and professional-grade installations. Resistant to higher temperatures, making it suitable for LED strips near heat sources.

• Teflon Insulation: High-temperature resistance and excellent chemical durability, often used in specialized home LED applications.

Choosing the right insulation ensures your Durable Home Wiring Harness can withstand the heat generated by LED strips and the surrounding environment without degrading over time.

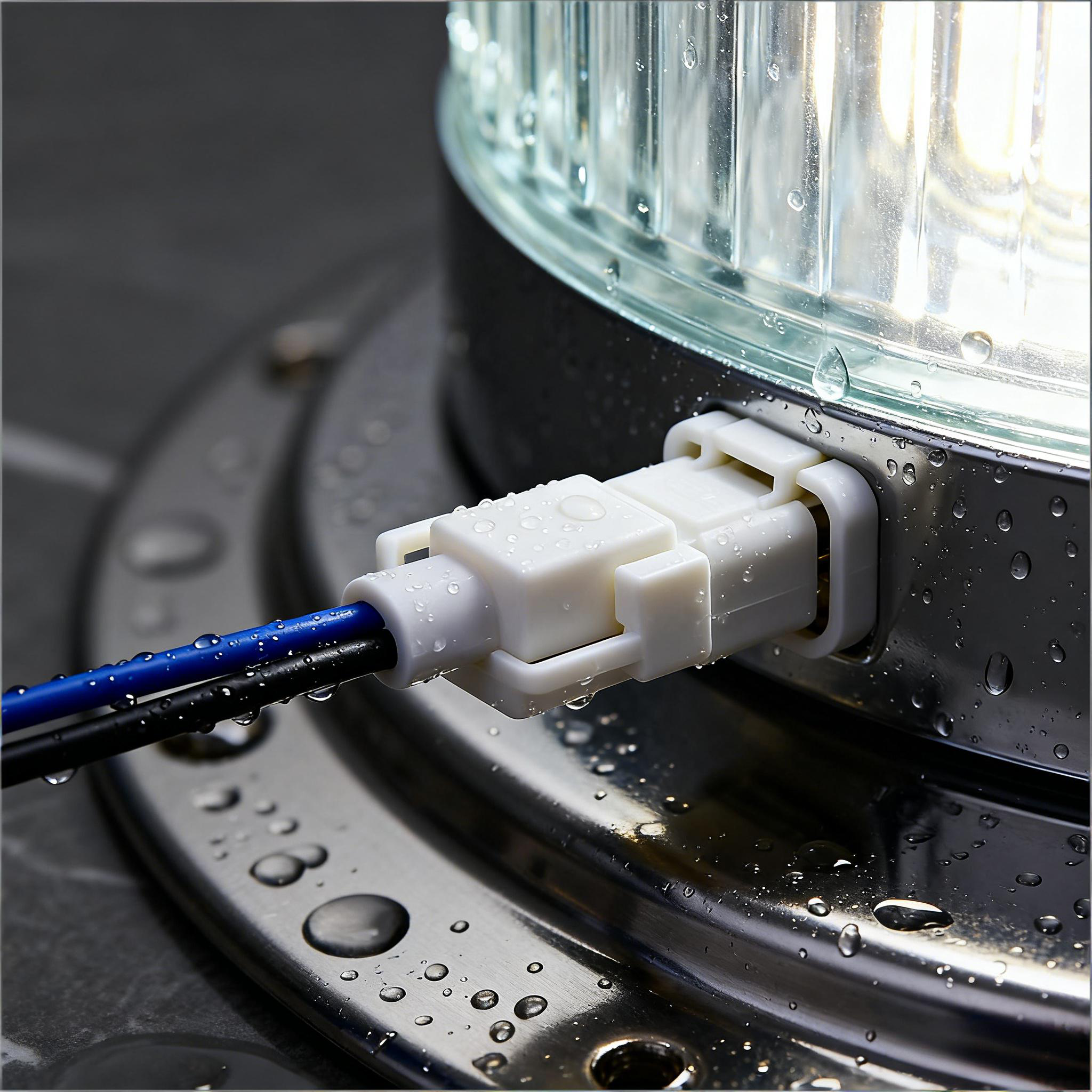

Connector Types

Cables alone are not enough; connectors are equally important. For easy installation and maintenance, Home LED Connector Harnesses allow quick plug-and-play connections. For DIY projects, snap-on connectors can simplify assembly, while soldered connectors with heat shrink tubing provide a more permanent solution. Multi-pin connectors are essential for RGB strips, while single-pin connectors suffice for 2 pin LED strips.

Cable Gauge and Voltage Considerations

The thickness of the wire, often referred to as the gauge, impacts current-carrying capacity and voltage drop. Using too thin a cable can lead to dimming, flickering, or even overheating. For most home LED strip applications:

• 18–22 AWG wires are suitable for short runs of single-color LED strips.

• 16–18 AWG wires are recommended for RGB or longer runs.

A High-Quality Home Wiring Harness typically uses appropriately gauged wires to maintain consistent voltage across all connected strips.

Tips for a Professional Installation

• Plan the layout: Determine the total length of strips and the number of connections.

• Use color-coded wires: Simplifies identifying positive and negative terminals or RGB channels.

• Avoid overloading: Ensure the power supply matches the total wattage of the connected LED strips.

• Secure connections: Use proper connectors, soldering, or crimping for durability.

High-quality LED Strip Wiring Harnesses often include features like heat-resistant insulation, multi-pin connectors, and pre-assembled lengths to streamline installation.

Conclusion

Choosing the right cable for LED lights involves considering the type of LED strip, insulation material, connector type, and wire gauge. A properly selected Home Wiring Harness or Home LED Wiring Harness ensures consistent lighting, safe operation, and long-term reliability. By using cables and connectors designed specifically for your LED setup, whether single-color or RGB, you can achieve a professional-looking installation without unnecessary complications.

To continue your LED journey and understand pin configurations in detail, the next guide will explain “What Are 4 Pin Connectors for LED Strips?”, covering types, applications, and tips for seamless multi-channel connections.
