What Are 4 Pin Connectors Used For?
Introduction
The 4 pin home wiring harness has become a staple in both residential and industrial electrical systems. These connectors provide efficient power and signal transmission while maintaining stability in compact spaces. In home appliances or automation devices, 4 pin connectors balance performance and simplicity, making them a preferred choice for OEM manufacturers.
.png)
.png)
1. Understanding 4 Pin Connectors
A 4 pin connector typically consists of two pairs of pins: one for power and one for signal transmission. This dual-function setup allows for both energy delivery and communication between components, such as in washing machines, coffee makers, and UV sterilizers.
The design ensures secure, vibration-resistant connections, often integrated into durable wiring harnesses built with PE/PVC insulation for added safety.
2. Applications Across Industries
The 4 pin waterproof connector cable is widely used in:
Home appliances: linking control boards and sensors
Industrial automation: powering relays, lights, and sensors
Renewable energy systems: connecting solar or battery modules
Automotive electronics: ensuring reliable communication in vehicle systems
Its versatility and compactness make it ideal for residential wiring harnesses where space and durability matter.
3. Advantages of 4 Pin Connectors
Compact design suitable for multi-functional circuits
Waterproof and dustproof options (IP67) for harsh conditions
Ease of assembly in modular or custom wiring harnesses
Reliable signal integrity for data or sensor transmission
A custom home wiring harness with a 4 pin connector offers long-term reliability and easier maintenance.
4. Material and Build Quality

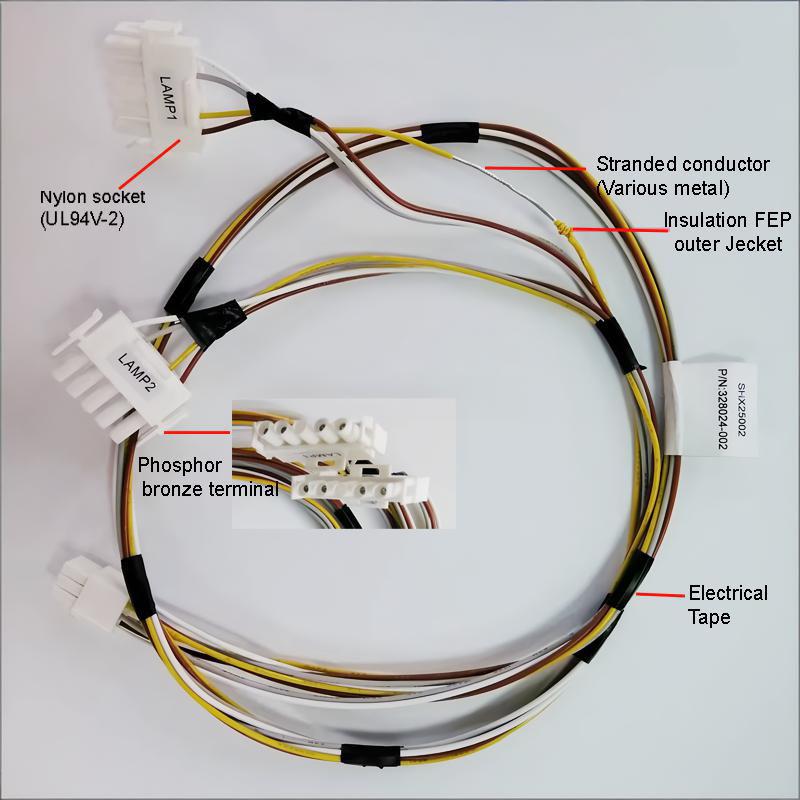

High-quality connectors use tinned copper conductors and nickel-plated terminals to prevent oxidation. Combined with waterproof sealing and durable housing, they support stable performance even under vibration or humidity.
Conclusion and Transition
From smart washing machines to robotic vacuums, 4 pin connectors form the backbone of efficient and safe electrical connectivity. But they’re only one type among many. To design the best system, it’s crucial to know the full range of connectors available.
