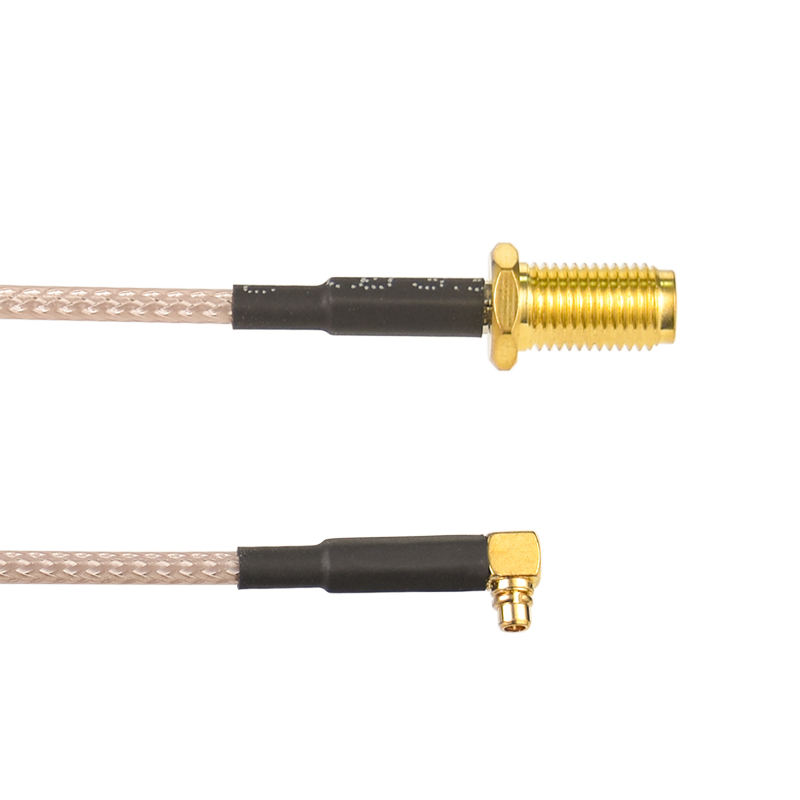

MMCX Male Right Angle to RP-SMA Female Bulkhead Pigtail Cable

• Product Name: MMCX Male to RP-SMA Female Pigtail Cable

• Connector A: MMCX Male Right Angle

• Connector B: RP-SMA Female Bulkhead

• Cable Type: 1.13mm coaxial cable

• Impedance: 50 Ohms

• Frequency Range: DC to 6GHz

• Signal Loss: Very low

• Conductor: Silver-plated copper

• Insulation: FEP

• Jacket: Black PVC

• Length: Approx. 15cm (customizable)

• Temperature Range: -40℃ to +85℃

• Connector Finish: Gold-plated

• Connection Method: Snap-on / Threaded

• Use Case: WiFi modules, GPS, LTE, embedded systems

• VSWR: ≤1.3

• Durability: ≥1000 mating cycles

• Shielding: Yes

• Application: RF signal transmission

• RoHS Compliant: Yes

• Weight: Approx. 10g

• Packaging: Individual bag

• Plating Material: Gold

• Connector Gender: Male to Female

• Signal Quality: Excellent

• Flexibility: High

• Installation: Easy to install

• Bend Radius: Very small (micro coax)

• Custom Length: Supported

• Brand: Generic

• Category: RF Pigtail Cable

• Use Environment: Indoor

• Magnetic Ring: No

• Waterproof: No

• Application Scenarios:

•


• Company Profile:

•

•

•

•

•

• FAQ:

• Q1: Can I get some samples?

• A: Yes,sample order is available for quality check and market test.


  Q2: What's the delivery time?
  A: It usually takes about 1-3 days to produce samples.
  It usually takes about 3-7 days to produce the products.


  Q3: What's your payment term?
  A: We usually accept PAYPAL,T/T as the main payment term,and other payments can also be negotiated.



  Q4: Quality problems?
  A: If thers is any quality problem or question,we could offer technical support or return service.




  Q5:How to contact us?

  A: Send your inquiry details in the below,click"send" now !!! Free sample sample and best answers are waiting for you.
