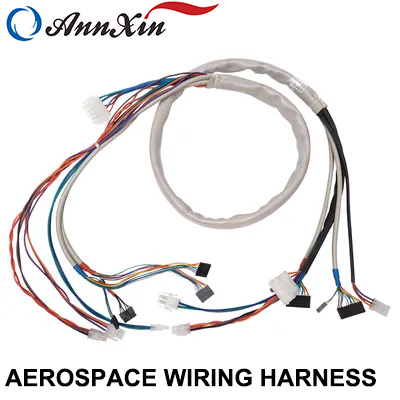

The M12/M16 Waterproof Aviation Connector Aerospace Custom Wire Harness is designed with high precision and durability to meet the demanding requirements of aerospace and industrial sectors. Below are the detailed attributes:
Connector Type: M12, M16
Application: Aerospace, Aviation, Industrial Equipment
Waterproof Rating: IP67
Material: Copper Conductor, PVC/XLPE Insulation, Braided Shield
Outer Sheath: Flame-retardant PVC
Wire Gauge: 20AWG - 28AWG
Temperature Range: -40°C to +125°C
Voltage Rating: 300V
Current Rating: 3A - 10A
Flame Retardant: UL94V-0
EMI/RFI Shielding: Yes
Connector Gender: Male/Female
Contact Material: Gold-plated Copper
Durability: 5000+ Mating Cycles
Insulation Resistance: ≥1000 MΩ
Contact Resistance: ≤10 mΩ
Mechanical Strength: High Tensile Strength
Flexibility: High Flex Life
Customization: Length, Connector Type, Cable Color
Standards: RoHS, CE, UL Certified
Protection: Waterproof, Dustproof, Vibration Resistant
Operating Environment: Aerospace, Aviation, Harsh Industrial
Connector Locking System: Screw Lock
Cable Jacket Color: White/Black Options
Signal Type: Power & Data Transmission
Assembly Method: Hand-soldered/Crimped
Service Life: Long-term, Reliable
Compatibility: Multiple Aerospace Systems
Packaging: Anti-static Bag / Customized
Quality Control: 100% Electrical Testing
Weight: Lightweight Design
Maintenance: Easy Replacement
Resistance: Oil, UV, Corrosion Resistant
Performance: Stable Signal Integrity
Connector Housing: Metal/Plastic Options
Wire Protection: Braided Sleeve
Thermal Resistance: High Heat Endurance
Safety: Shockproof & Insulated
Environmental Protection: Eco-friendly Materials
Production Lead Time: 7-15 days
MOQ: 100 Pieces
