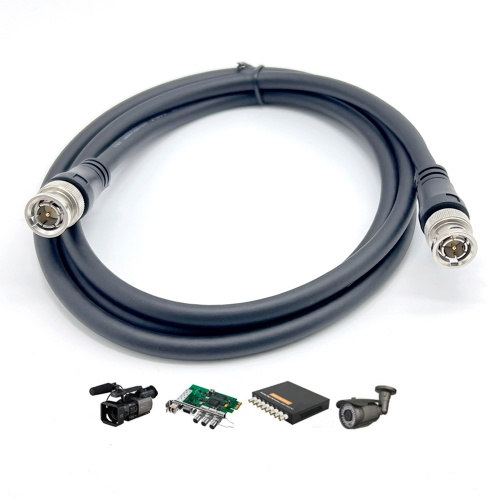

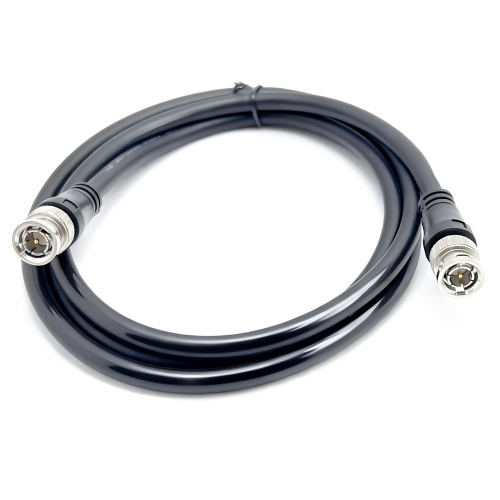

Industrial RF Coaxial Cable Harness with BNC Connectors

High-Performance RF Cable Assembly for Industrial & Professional Applications

The Industrial RF Coaxial Cable Harness with BNC Connectors is engineered to deliver exceptional signal transmission, durability, and stability across demanding environments. Built with premium coaxial materials such as RG58, RG6, or customized RF cables, this harness ensures low-loss performance and excellent shielding against electromagnetic interference (EMI). It is widely used in industrial automation, RF communication systems, CCTV surveillance, broadcasting, test equipment, and high-frequency signal transmission.

Key Product Features

✔ High-Quality RF Signal Transmission

Designed with 50 Ohm or 75 Ohm impedance options, the harness ensures accurate, low-loss signal delivery suitable for RF communication and high-definition video transmission.

✔ Durable BNC Connectors

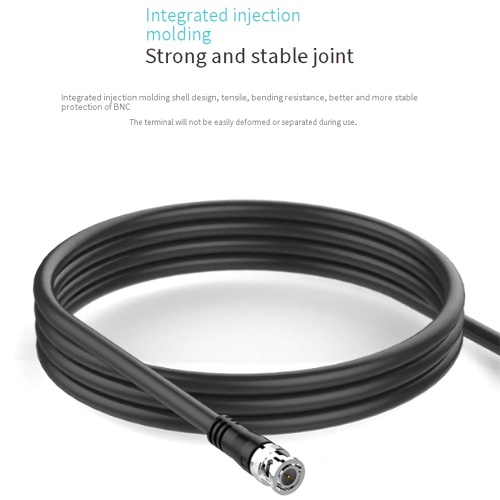

Equipped with precision-machined BNC male connectors, offering stable locking, corrosion resistance, and long-term reliability in continuous-use environments.

✔ Excellent Shielding & Noise Immunity

Multi-layer shielding provides strong immunity against EMI and RFI, making the cable suitable for complex industrial or electronic environments.

✔ Industrial-Grade Construction

Made with robust, flexible jackets and crimped connectors designed to withstand heat, vibration, bending, and long-term mechanical stress.

✔ Customizable Options Available

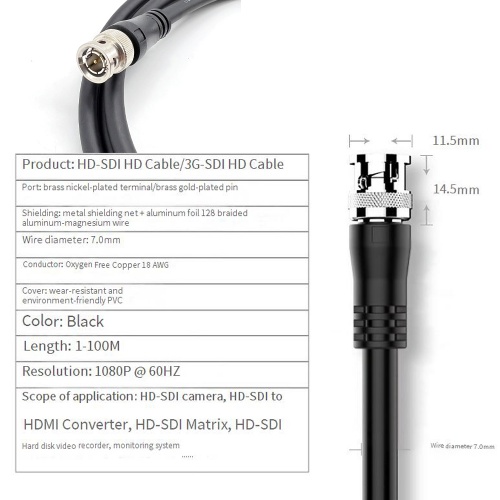

• Cable type: RG58 / RG59 / RG6 / RG174 / LMR type
• Connector type: BNC / SMA / F-Type / N-Type
• Length: 0.3 m – 20 m
• Impedance: 50 Ohm / 75 Ohm
• Jacket: PVC, PE, TPU, LSZH
OEM & ODM services available for special industrial equipment.

Application Scenarios

The Industrial RF Coaxial Cable Harness is ideal for:

• CCTV & Security Surveillance Systems

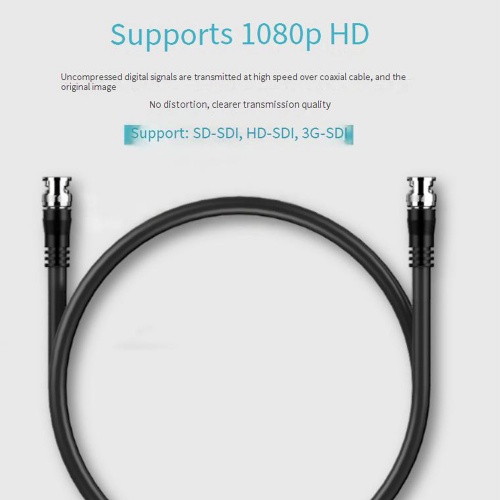

Supports HD-SDI, 3G-SDI, analog, and digital video transmission.

• RF Communication & Wireless Systems

Used in signal testing, RF modules, antennas, and wireless base stations.

• Industrial Automation Equipment

Provides stable data transmission for industrial sensors, controllers, and monitoring systems.

• Broadcasting & Video Production

Ensures reliable high-frequency video transfer in studios and field applications.

• Test & Measurement Instruments

Compatible with oscilloscopes, analyzers, and precision RF equipment requiring dependable connectivity.

Why Choose Us

✔ Professional RF Cable & Wire Harness Manufacturer

Over 10 years of experience producing RF coaxial cable assemblies and custom wire harnesses for global industrial clients.

✔ Custom OEM/ODM Solutions

We support connector customization, cable length options, multi-connector harness integration, and special RF requirements.

✔ Strict Quality Control

All products undergo:
• 100% signal continuity testing
• Bending and durability tests
• Impedance and VSWR performance verification
• Environmental resistance checks

✔ Fast Lead Time & Stable Supply

With a modern factory and automated production lines, we guarantee consistent quality, short delivery cycles, and competitive pricing.

✔ Certified Production

Products can meet:
• ISO9001
• RoHS / REACH
• UL cable requirements
• CE compliance
Perfect for global distribution and industrial equipment integration.
