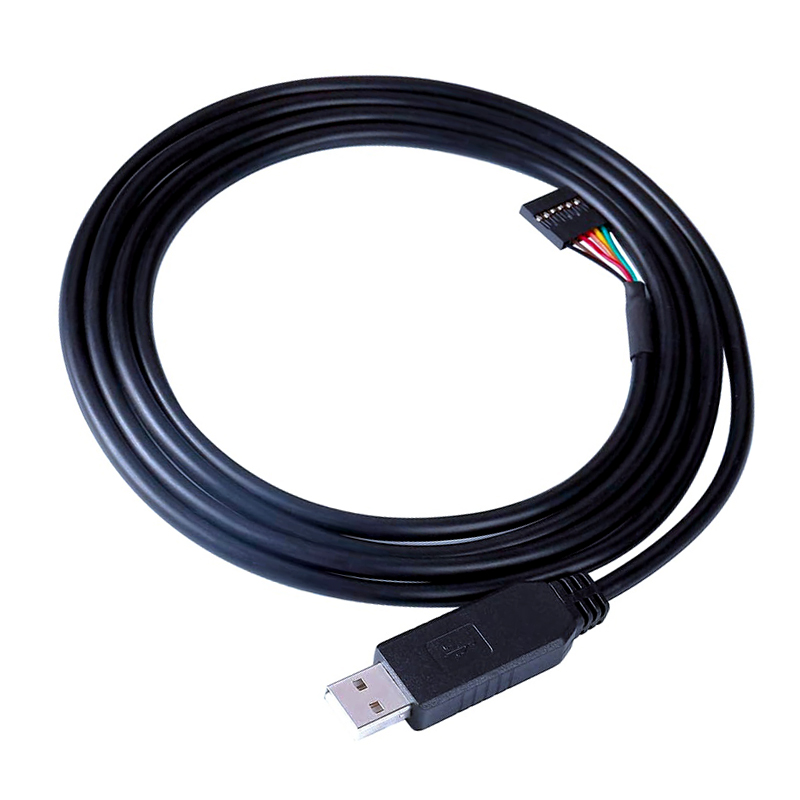

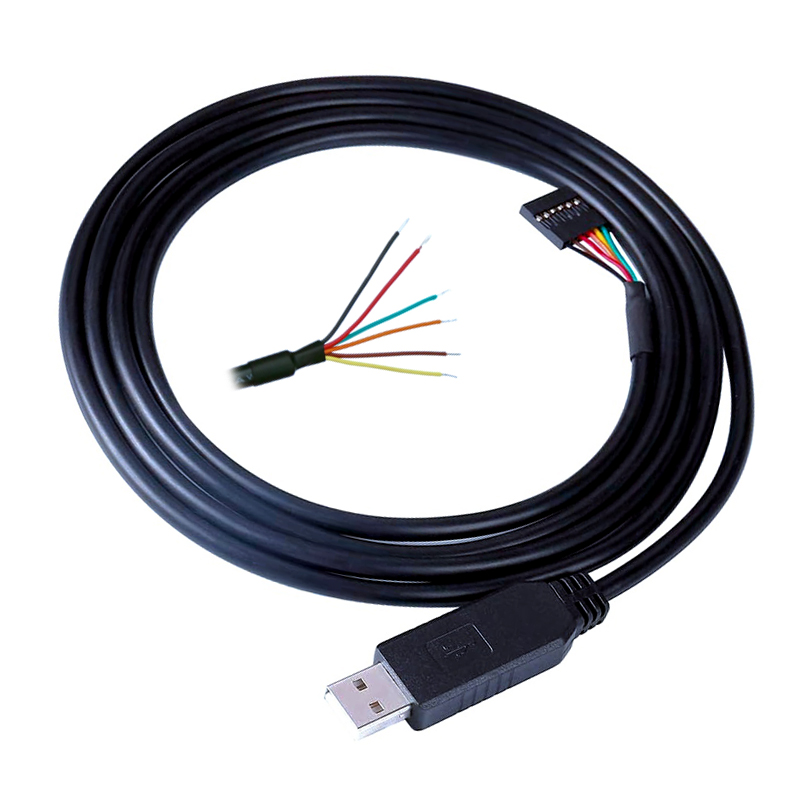

Product Name: FTDI Programming Cable

Chipset: FT232RL

USB Connector: USB Type-A Male

Output End: 6-pin jumper wire (DuPont female header)

Communication Protocol: TTL Serial

Output Voltage: 3.3V / 5V selectable

Baud Rate Supported: 300bps to 3Mbps

Pin Definition: TXD, RXD, VCC, GND, CTS, DTR

Power Output: Can power target board

Driver Support: FTDI official drivers

Compatible OS: Windows XP/7/8/10/11, Linux, Mac OS

Cable Length: Approx. 1.5 meters

Conductor Material: Pure copper

Insulation Material: Eco-friendly PVC

Wire Core Structure: Multi-strand copper

Anti-interference: High

Shielded: Yes

Color: Black

Durability: >10,000 plug-in/out cycles

Connector Plating: Nickel-plated

Stable Transmission: Yes

Safety Protection: Built-in overcurrent protection

ESD Protection: Supported

Overvoltage Protection: Yes

Weight: Approx. 60g

Hot Swappable: Supported

Operating Temperature: -20℃ to +70℃

Storage Temperature: -40℃ to +85℃

Humidity Range: 5% to 95% RH non-condensing

Application Targets: Arduino, ESP8266, STM32, router flashing

Use Scenarios: Firmware flashing, embedded communication, module debugging

Cable Flexibility: Soft and bendable

Manufacturing Process: Injection molding

Voltage Selection: Internal jumper or software-controlled

Power Supply: Via USB port

Transmission Direction: Bidirectional

Customizable: OEM/ODM supported

Warranty: 1 year

Packing: Individual PE bag

Protection Level: IP20 (for indoor use)

Certifications: CE/FCC/RoHS

Origin: China
