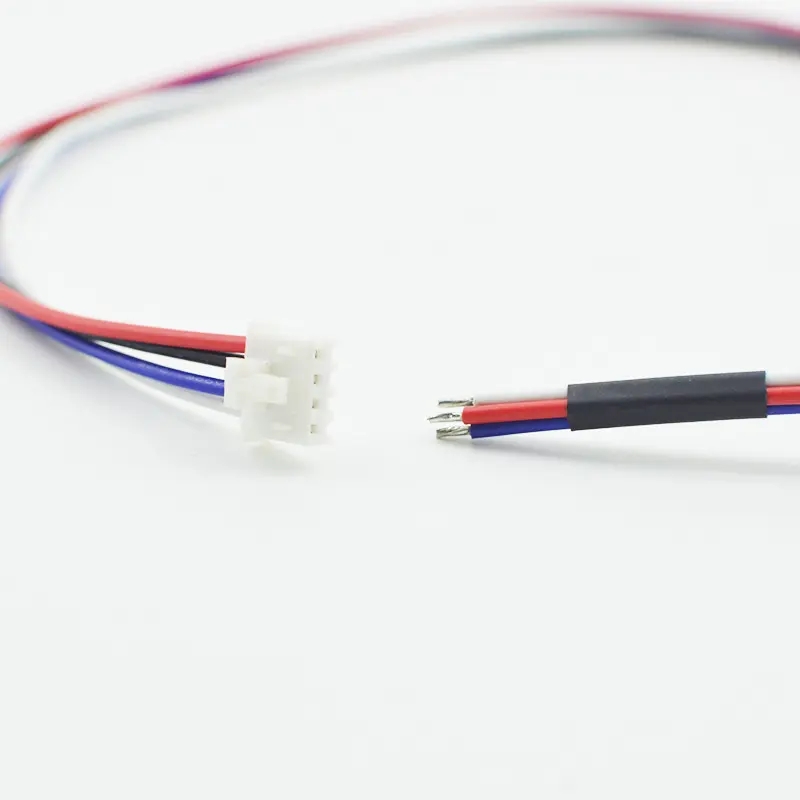

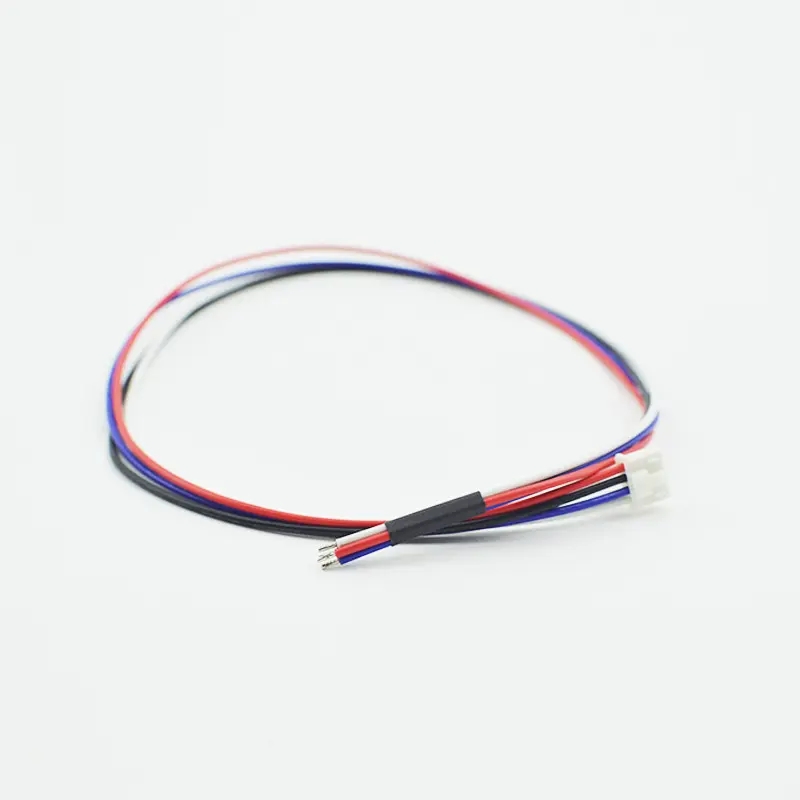

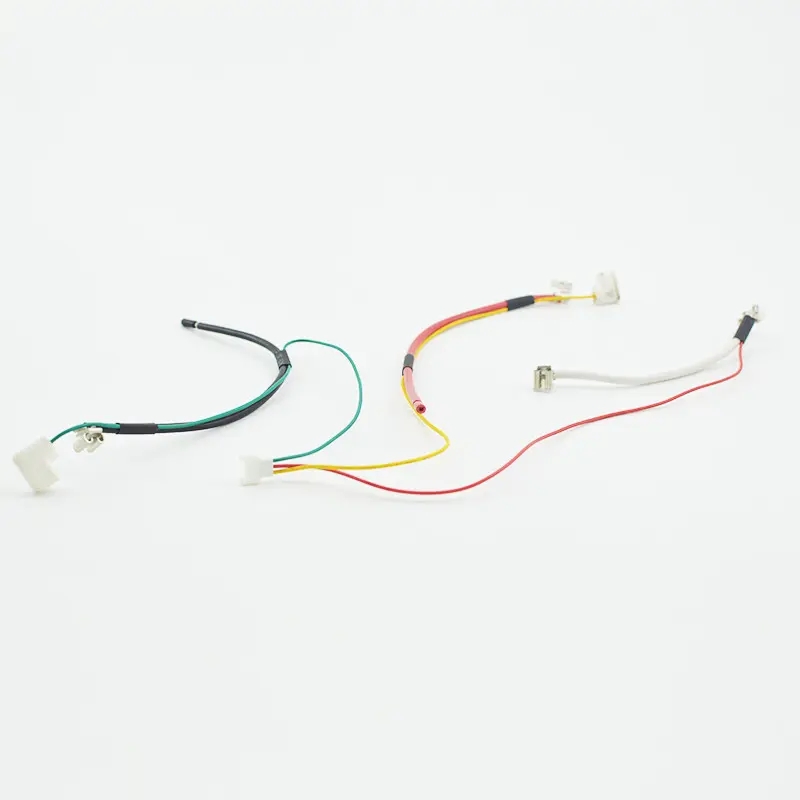

4 pin Water Dispenser Internal Wiring Harness

In the world of appliance manufacturing, where performance, safety, and longevity are non-negotiable, the importance of a reliable internal wiring system cannot be overstated. It is the central nervous system that ensures seamless operation. Our UL1430/1452/1316 4-Pin Wiring Harness with a 2.0mm Pitch Connector is precisely engineered to fulfill this critical role. More than just a cable, it is a comprehensive connectivity solution designed specifically for the demanding environment inside water dispensers and other compact appliances, representing the perfect synergy of advanced materials, precision engineering, and rigorous quality control.

Uncompromising Material Science: Built to Endure

At the core of our wiring harness is a commitment to material excellence, ensuring every component contributes to overall durability and performance.

1. Superior PVC Jacket: The First Line of Defense
The primary insulation is a high-grade, flame-retardant PVC rubber compound. This is not a standard PVC; it is formulated to provide a unique combination of properties that are essential for reliable operation:

High Tensile Strength & Anti-Fatigue: The jacket resists stretching, cracking, and deformation caused by continuous vibration from pumps and compressors, ensuring the internal conductors remain protected throughout the appliance's lifespan.

Excellent Flame Retardancy (UL94 V-0 compliant): Safety is paramount. Our PVC compound is engineered to self-extinguish, significantly reducing the risk of fire propagation in the unlikely event of an electrical fault.

Exceptional Flexibility & Bend Resistance: Despite its strength, the wire maintains remarkable flexibility. This allows for easy and safe routing through the tight, complex spaces of a water dispenser chassis during assembly, without compromising the integrity of the copper strands within.

Stable Dimensions & Robust Aging Profile: The insulation is resistant to environmental stress cracking and maintains its shape and properties across a wide temperature range, preventing brittleness in the cold and softening in the heat.

2. Engineered for Thermal Resilience
Appliances like water dispensers experience significant thermal cycles, from the heat generated by heating elements to the cool environments they may be installed in. Our wiring harness is rated for a continuous operational temperature range of -40°C to 105°C. This ensures reliable performance year-round, whether in a cold garage or a hot kitchen, without degradation of its electrical or physical properties.

Precision-Engineered Connectors: Ensuring Flawless Connectivity

A wire is only as good as its connection. Our 4-pin connector is a masterpiece of functional design, built to ensure stable and efficient electrical transmission.

High-Conductivity Brass Terminals: The connector pins are crafted from high-purity brass, a material chosen for its excellent balance of electrical conductivity and mechanical strength. This ensures minimal voltage drop and power loss at the connection points, guaranteeing that heating elements, sensors, and control boards receive stable and consistent power.

Anti-Oxidation Tin Plating: Each brass terminal is finished with a uniform layer of tin plating. This serves a critical dual purpose:

Corrosion Resistance: It effectively prevents oxidation (tarnishing) that can occur from exposure to humidity, a common factor in water-related appliances. Oxidation increases electrical resistance, leading to heat buildup and potential failure.

Enhanced Solderability & Contact: The tin plating ensures a reliable, low-resistance contact surface and improves solderability if required during the assembly process.
This combination guarantees a stable electrical interface, dramatically extending the operational lifespan of the connection and, by extension, the entire appliance.

Rigorous Certification & Environmental Compliance

We do not simply claim quality; we validate it through internationally recognized standards and certifications. This provides our clients with absolute confidence in the safety and reliability of our products.

UL & VDE Certification: Our wires (UL1430, UL1452, UL1316) are certified to meet or exceed the stringent requirements of Underwriters Laboratories (UL) and VDE.

Environmental Stewardship (REACH & ROHS 2.0): We are committed to sustainable and responsible manufacturing. Our wiring harness is fully compliant with REACH and ROHS 2.0 regulations, guaranteeing that it is free from hazardous substances like lead, mercury, cadmium, and specific phthalates. This makes our product safe for end-users and easier to integrate into markets with strict environmental regulations.

Your Vision, Our Customization: A Perfect Fit for Your Design

We understand that a one-size-fits-all approach does not work in innovative appliance design. Therefore, we offer comprehensive OEM customization options to ensure this wiring harness integrates perfectly into your specific product.

Custom Lengths: We can produce harnesses in any specific length you require, minimizing excess wire inside your units for a cleaner, more efficient assembly.

Connector Configuration: While we specialize in the 2.0mm pitch 4-pin configuration, we can discuss variations to suit different board layouts and connection needs.

Wire Harness Assemblies: We can integrate this specific wire into a larger, more complex harness assembly, bundling it with other wires, cables, or tubes as needed for your application.

Our engineering team is ready to collaborate with you to develop a tailored solution that meets your exact specifications, helping to streamline your production process and reduce costs.

Conclusion: The Definitive Choice for Reliability

Choosing our UL1430/1452/1316 4-Pin Wiring Harness is more than a procurement decision; it is an investment in the quality and reputation of your final product. From its robust PVC jacket and wide temperature tolerance to its corrosion-resistant brass connectors and full suite of international certifications, every detail is meticulously crafted for excellence.

Do not compromise on the component that powers your performance. For your next water dispenser or similar electrical project, choose a wiring solution that guarantees reliability, ensures safety, and is built to last.

Contact us today to request samples, discuss your customization needs, and experience the difference that true engineering precision makes. Partner with us for wiring harnesses you can trust.
