Factory supply N Type female Jack flange to u.fl UFL with RG178 RG-178 RF Coaxial pigtail Extension Antenna Cable assembly
Product Name:

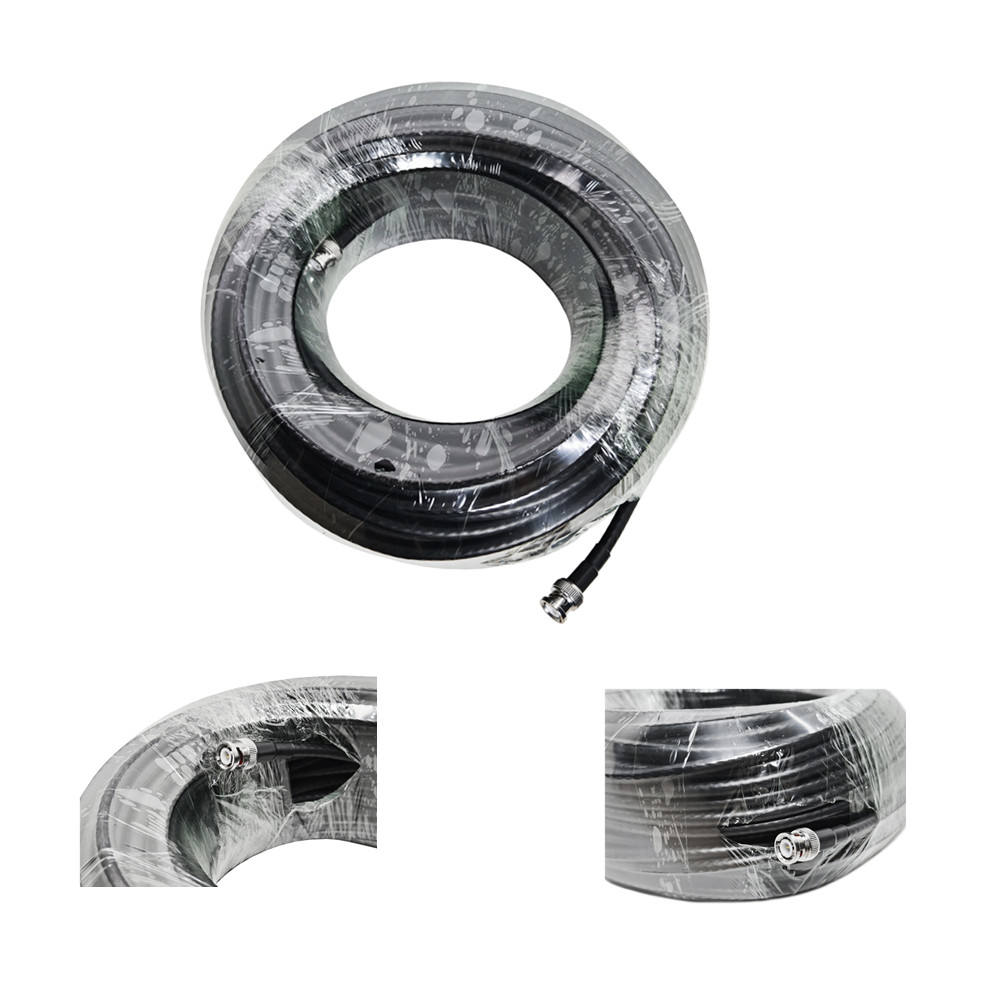

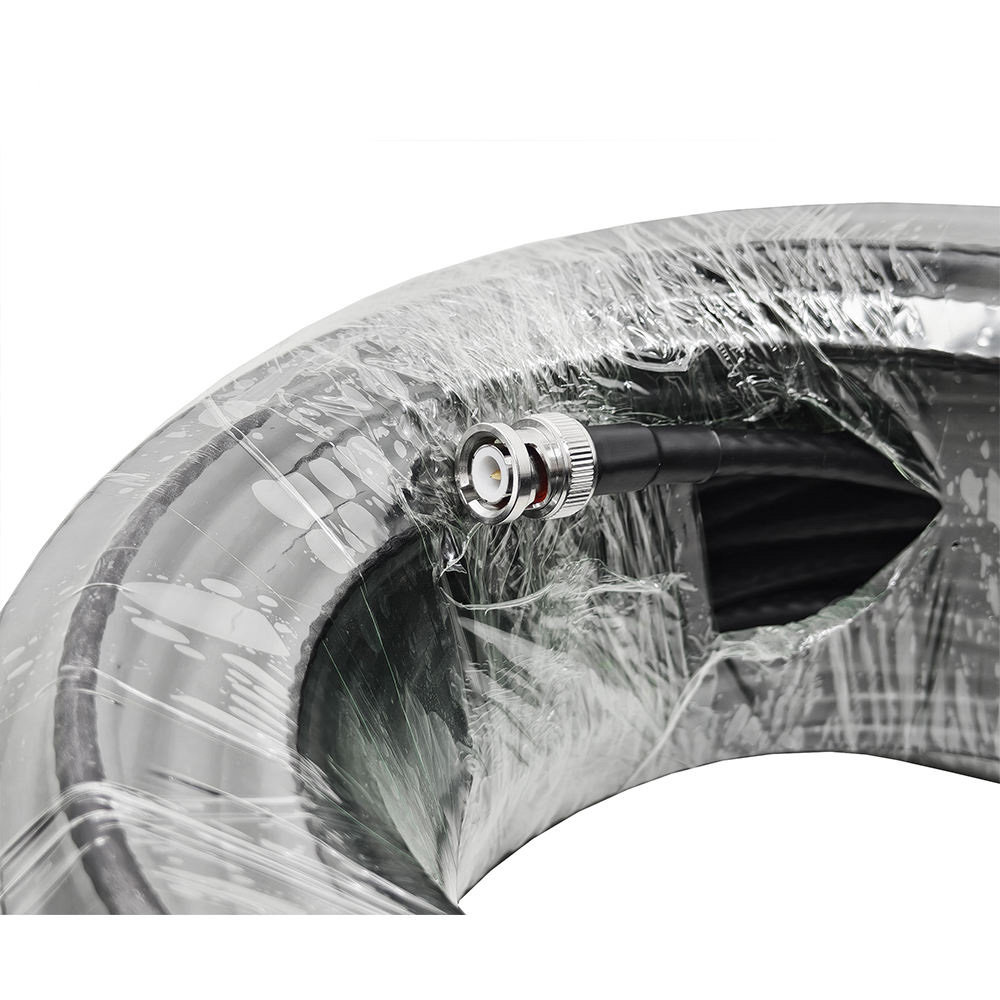

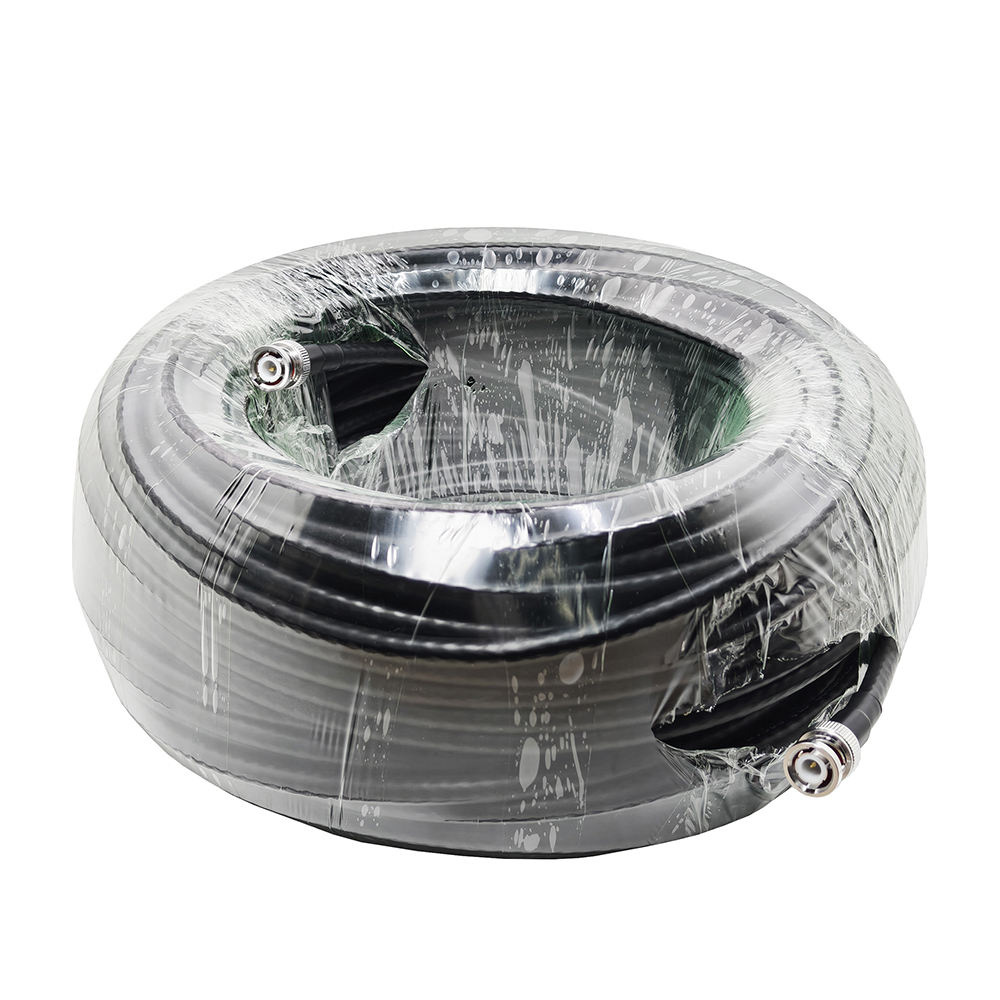

BNC Male Plug to BNC Male Plug Connector for RG6 Rf Pigtail Extension Cable Assembly
.jpg)
We focus on coaxial assemblies
Our custom RF cable assemblies are built-in and shipped worldwide
RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as
BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department
temperature range | -40～+60°C |
Vibration | 100m/s2 (10~500Hz) |
Impedance | 50Ω |
Frequency Range | DC～1GHz |
Working Voltage | 170V max |
Break-down Voltage | 4000V rms @ sea level |
Contact resistance | Center Conductor ≤2mΩ |
Average power | 3KW max |
Insulation resistance | ≥ 1000 MΩ |
VSWR | Straight ≤ 1.20 Right angle ≤ 1.30 |
Durability (mating) | ≥500 (cycles) |
| Brand | ANNXIN |
| Connector Type | Coaxial |
| Cable Type | Coaxial |
| Compatible Devices | Reverse Camera, WiFi Router, FPV Camera, Modem |
| Special Feature | High Speed, Waterproof |
Application Scenarios:
Company Profile:
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
FAQ:
Q1: Can I get some samples?
Q2: What's the delivery time?
A: It usually takes about 1-3 days to produce samples.
It usually takes about 3-7 days to produce the products.
Q3: What's your payment term?
A: We usually accept PAYPAL,T/T as the main payment term,and other payments can also be negotiated.
A: If thers is any quality problem or question,we could offer technical support or return service.
