USB to TTL Serial 5V Adapter Cable with FTDI FT232RL Chip 6 Pin 0.1 inch Pitch Female Socket Header UART IC Windows 11 10 8 7 Linux MAC OS
❤ Add to collection

USB to TTL Serial 5V Adapter Cable with FTDI FT232RL Chip 6 Pin 0.1 inch Pitch Female Socket Header UART IC Windows 11 10 8 7 Linux MAC OS

About this item

  • 6 ft FT232 chip USB to TTL serial adapter (with 6 pin 0.1” pitch female socket header) connects devices with 5V logic level UART signals interface to a laptop via USB port

  • A genuine FT232RL chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates

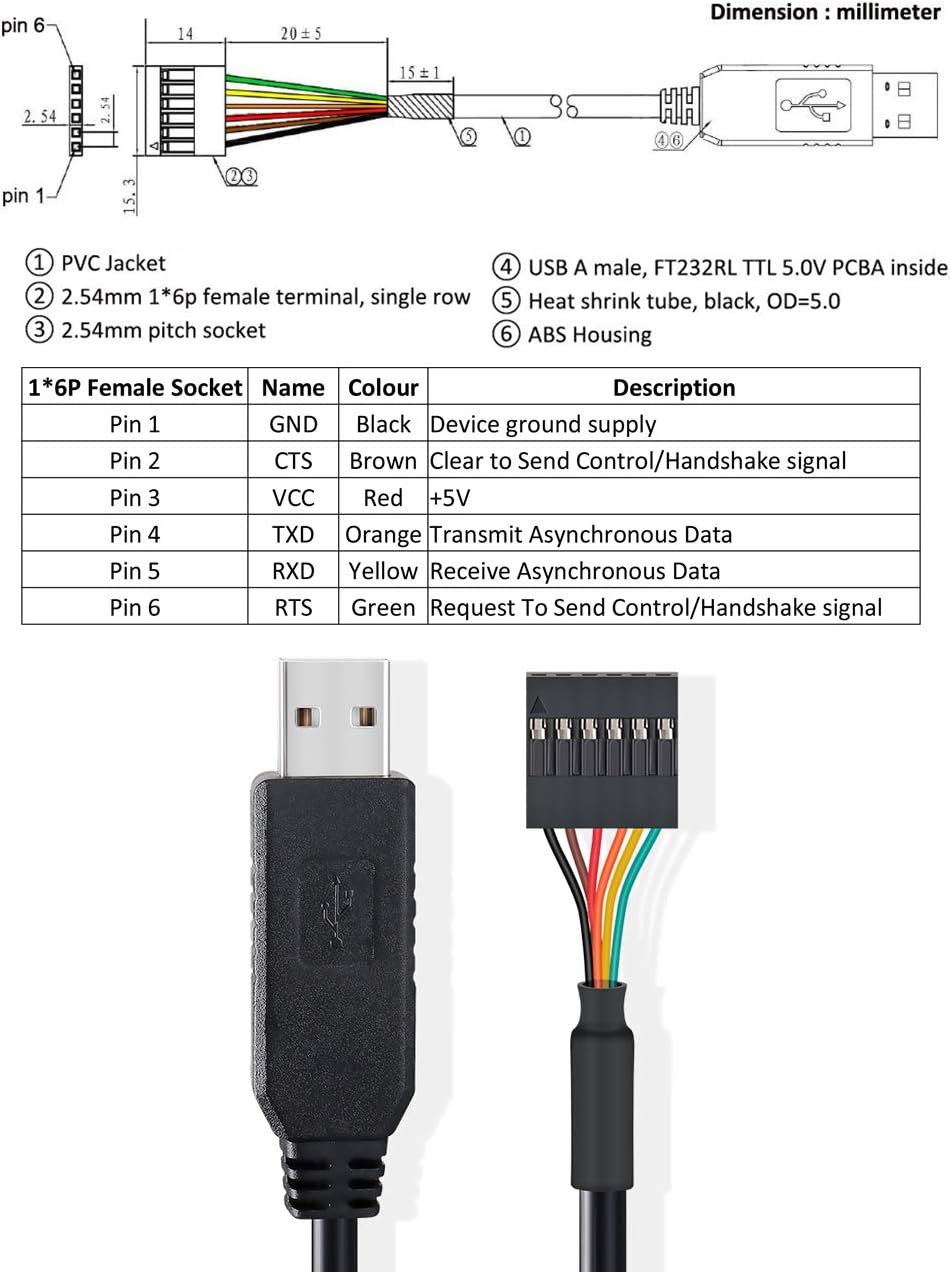

  • 6 feet FTDI chip USB to TTL serial cable (6 way outputs, Single-In-Line ) provides access to Tx, Rx, RTS#, CTS#, VCC (5v) and GND

  • FTDI chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM

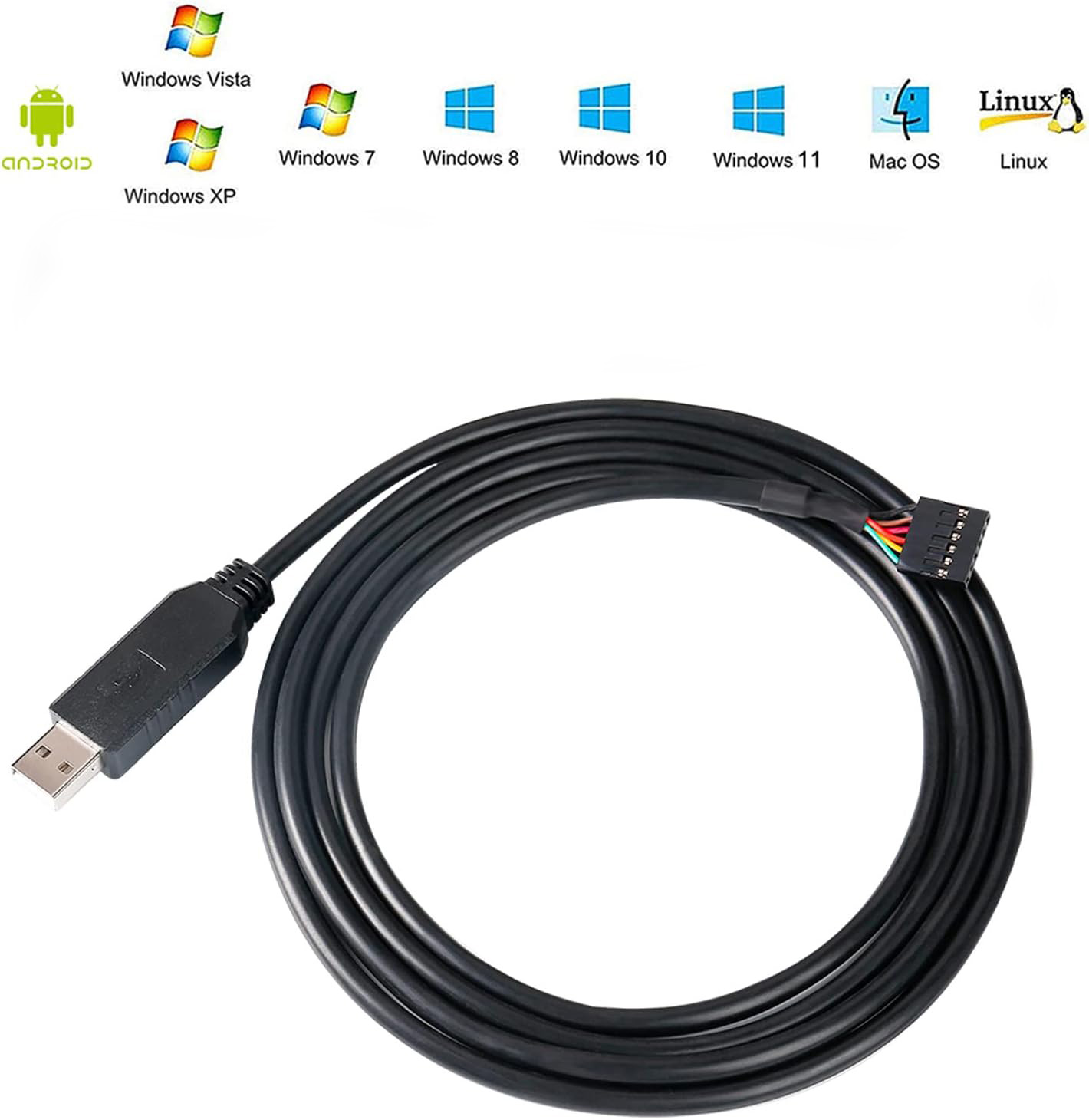

  • 6 pin header 5V TTL to USB converter cord is compatible with Windows 11,10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE, Mac OS, Linux 2.4 and greater; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.


￥0.00
0.00
￥0.00
￥0.00
Weight：0.000KG
Quantity：
Buy now
Add to cart
Description

About this item

  • 6 ft FT232 chip USB to TTL serial adapter (with 6 pin 0.1” pitch female socket header) connects devices with 5V logic level UART signals interface to a laptop via USB port

  • A genuine FT232RL chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates

  • 6 feet FTDI chip USB to TTL serial cable (6 way outputs, Single-In-Line ) provides access to Tx, Rx, RTS#, CTS#, VCC (5v) and GND

  • FTDI chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM

  • 6 pin header 5V TTL to USB converter cord is compatible with Windows 11,10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE, Mac OS, Linux 2.4 and greater; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.


Products Description




About this item

  • 6 ft FT232 chip USB to TTL serial adapter (with 6 pin 0.1” pitch female socket header) connects devices with 5V logic level UART signals interface to a laptop via USB port

  • A genuine FT232RL chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates

  • 6 feet FTDI chip USB to TTL serial cable (6 way outputs, Single-In-Line ) provides access to Tx, Rx, RTS#, CTS#, VCC (5v) and GND

  • FTDI chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM

  • 6 pin header 5V TTL to USB converter cord is compatible with Windows 11,10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE, Mac OS, Linux 2.4 and greater; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.
