Connector 1: USB Type-A Male
Connector 2: 3.5mm TRS Male Audio Plug (Right-Angle)
Chipset Compatibility: FTDI FT232RL, PL2303, CP2102
Voltage Levels Supported: 3.3V, 5V (varies by chipset)
Interface Type: TTL Serial via TRS
Supported Protocols: RS232/TTL Level Serial Communication
Compatible Devices: Embedded Boards, Consoles
Use Case: Serial Programming, Console Access
Plug-and-Play: Yes, No Driver CD Needed
Driver Support: FTDI VCP, Prolific, Silicon Labs Drivers
OS Compatibility: Windows, MacOS, Linux
Baud Rate Support: Up to 921600bps
Cable Length: Approx. 1.5m–2m
Conductor Material: Tinned Copper
Outer Jacket: Flexible PVC
Color: Black
Shielding: Foil and Braid Shielding
USB Standard: USB 2.0 Backward Compatible
Audio Jack Standard: 3.5mm TRS (Tip-Ring-Sleeve)
Environmental Compliance: RoHS
Operating Voltage: USB Bus Powered (5V)
Power Consumption: Low Power Design
Temperature Range: -20℃ to +80℃
Insulation Resistance: ≥100MΩ
Dielectric Strength: 500V AC/min
Contact Resistance: ≤30mΩ
Flexibility: High Flex Life Cable
Durability: ≥5000 Insertion Cycles
Weight: Approx. 50g–100g
ESD Protection: Built-in Chipset Features
LED Indicator: Optional (varies by model)
Plug Mold Type: High-Quality Molded Plastic
3.5mm Housing: Nickel-Plated with Right-Angle Strain Relief
Package: Polybag or Retail Box
Custom Length: Available on Request
Branding: OEM/ODM Support
Certifications: CE, FCC (on request)
Warranty: 1 Year
Driver Availability: Free Online Download
Application: Serial Programming, Embedded Development
Supported Platforms: Intel Galileo, Arduino, Custom Boards
Environmental Standards: RoHS, REACH

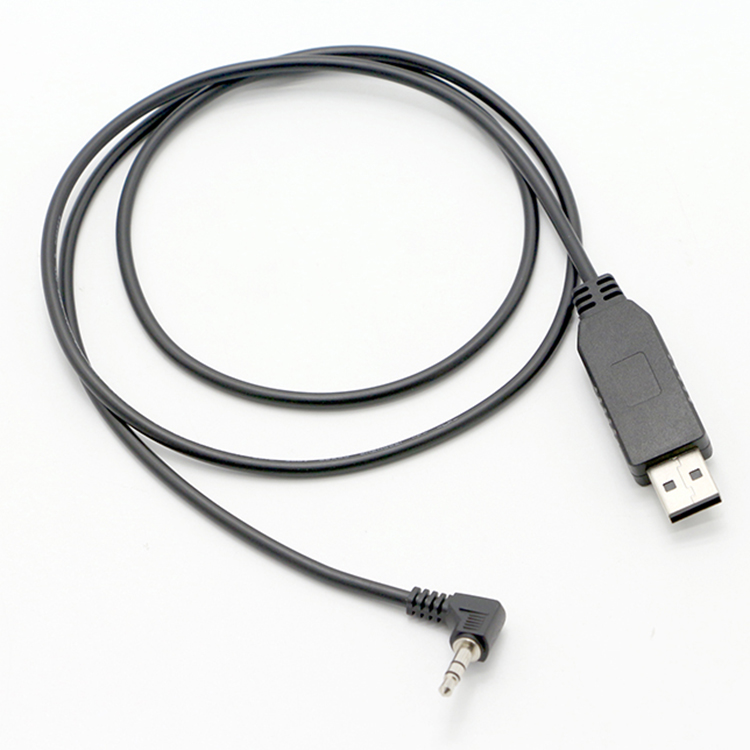

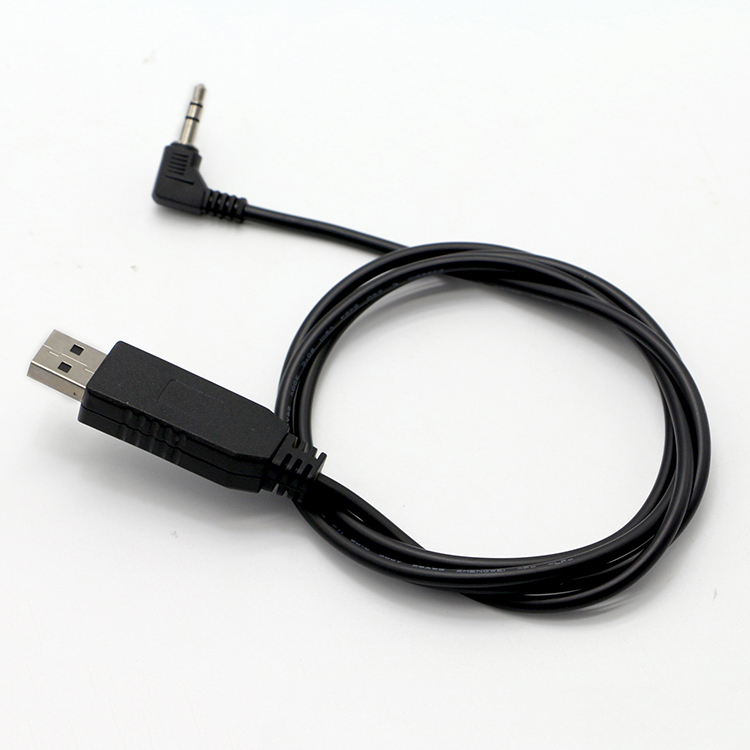

This USB-A to 3.5mm right-angle TRS TTL serial cable with support for FTDI, PL2303, and CP2102 chipsets delivers reliable, professional-grade connectivity for development boards and embedded systems. Plug-and-play support ensures easy setup across Windows, MacOS, and Linux platforms.
