Connector 1: USB Type-A Male
Connector 2: 3.5mm TRS Male Audio Plug

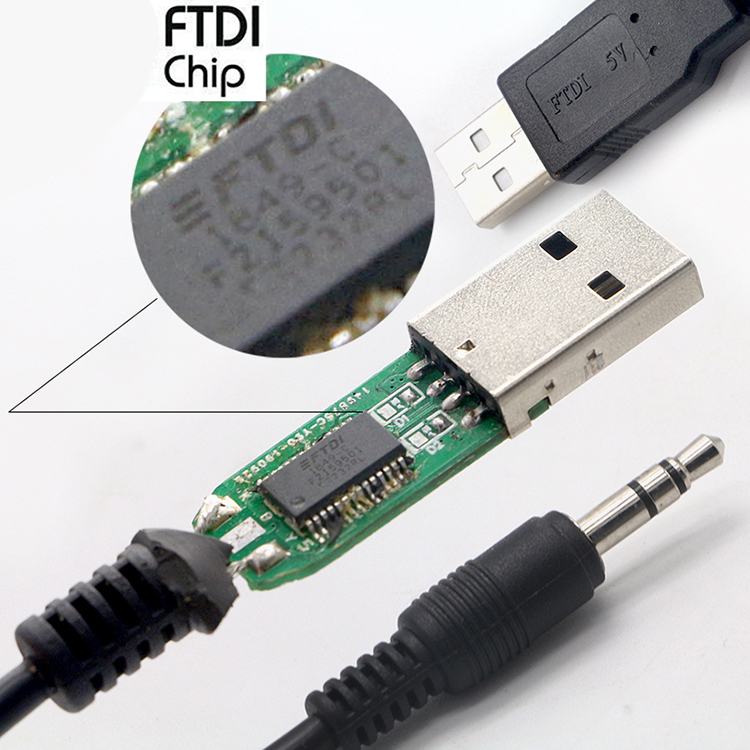

Chipset: FTDI FT232RL or Equivalent
Voltage Level: 5V TTL Logic
Interface Type: TTL Serial via TRS
Supported Protocols: RS232/TTL Serial Communication
Compatible Devices: Embedded Boards, Consoles
Use Case: Serial Programming, Console Access
Plug-and-Play: Yes, No Driver CD Needed
Driver Support: FTDI VCP Driver
OS Compatibility: Windows, MacOS, Linux
Baud Rate Support: Up to 921600bps
Cable Length: Approx. 1.5m–2m
Conductor Material: Tinned Copper
Outer Jacket: Flexible PVC
Color: Black
Shielding: Foil and Braid Shielding
USB Standard: USB 2.0 Backward Compatible
Audio Jack Standard: 3.5mm TRS (Tip-Ring-Sleeve)
Environmental Compliance: RoHS
Operating Voltage: USB Bus Powered (5V)
Power Consumption: Low Power Design
Temperature Range: -20℃ to +80℃
Insulation Resistance: ≥100MΩ
Dielectric Strength: 500V AC/min
Contact Resistance: ≤30mΩ
Flexibility: High Flex Life Cable
Durability: ≥5000 Insertion Cycles
Weight: Approx. 50g–100g
ESD Protection: Built-in FTDI Features
LED Indicator: Optional (varies by model)
Plug Mold Type: High-Quality Molded Plastic
3.5mm Housing: Nickel-Plated with Strain Relief
Package: Polybag or Retail Box
Custom Length: Available on Request
Branding: OEM/ODM Support
Certifications: CE, FCC (on request)
Warranty: 1 Year
Driver Availability: Free Online Download
Application: Serial Programming, Embedded Development
Supported Platforms: Intel Galileo, Arduino, Custom Boards
Environmental Standards: RoHS, REACH
This USB-A to 3.5mm TRS TTL serial cable with integrated FTDI chipset delivers professional-grade connectivity for embedded boards and devices using audio-style serial console ports at 5V logic level. Plug-and-play support ensures easy setup on Windows, MacOS, and Linux systems.
