Connector 1: USB Type-A Male
Connector 2: RJ45 Male
Chipset: FTDI FT232RL or Equivalent
Interface Type: RS232/TTL Serial Console
Supported Protocols: Cisco Console Pinout
Compatible Devices: Routers, Switches, Firewalls
Use Case: Network Console Management
Plug-and-Play: Yes, No Driver CD Needed
Driver Support: FTDI VCP Driver
OS Compatibility: Windows, MacOS, Linux
Baud Rate Support: Up to 921600bps
Cable Length: Approx. 1.5m–2m
Conductor Material: Tinned Copper
Outer Jacket: Flexible PVC
Color: Black
Shielding: Foil and Braid Shielding
USB Standard: USB 2.0 Backward Compatible
RJ45 Pinout: Cisco Standard Console
Connector Finish: Gold-Plated Contacts
Environmental Compliance: RoHS
Operating Voltage: USB Bus Powered (5V)
Power Consumption: Low Power Design
Temperature Range: -20℃ to +80℃
Insulation Resistance: ≥100MΩ
Dielectric Strength: 500V AC/min
Contact Resistance: ≤30mΩ
Flexibility: High Flex Life Cable
Durability: ≥5000 Insertion Cycles
Weight: Approx. 50g–100g
ESD Protection: Built-in FTDI Features
LED Indicator: Optional (varies by model)
Plug Mold Type: High-Quality Molded Plastic
RJ45 Housing: Gold-Plated with Strain Relief
Package: Polybag or Retail Box
Custom Length: Available on Request
Branding: OEM/ODM Support
Certifications: CE, FCC (on request)
Warranty: 1 Year
Driver Availability: Free Online Download
Application: IT Networking, Field Service
Compatibility Brands: Cisco, Juniper, Huawei, HP, Ubiquiti, Mikrotik
Environmental Standards: RoHS, REACH

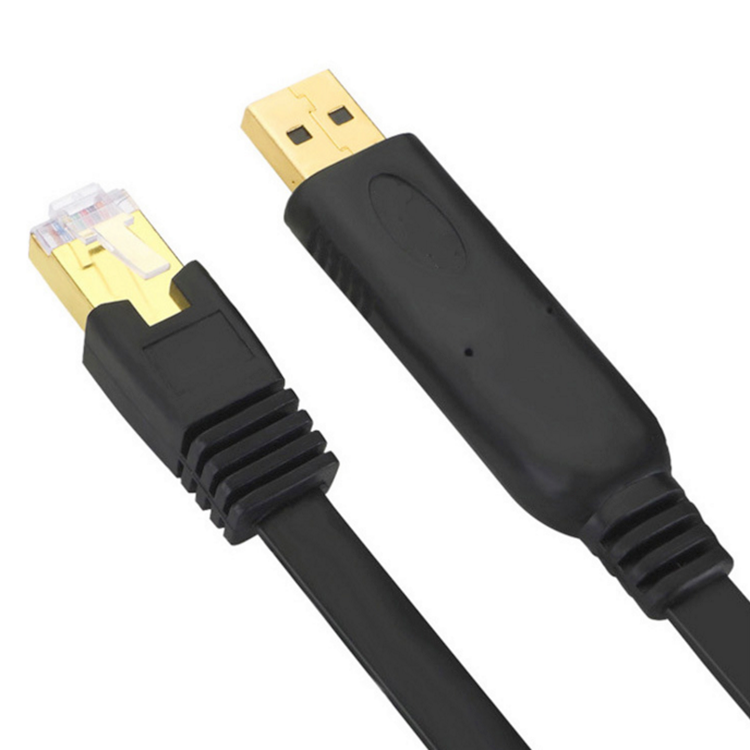

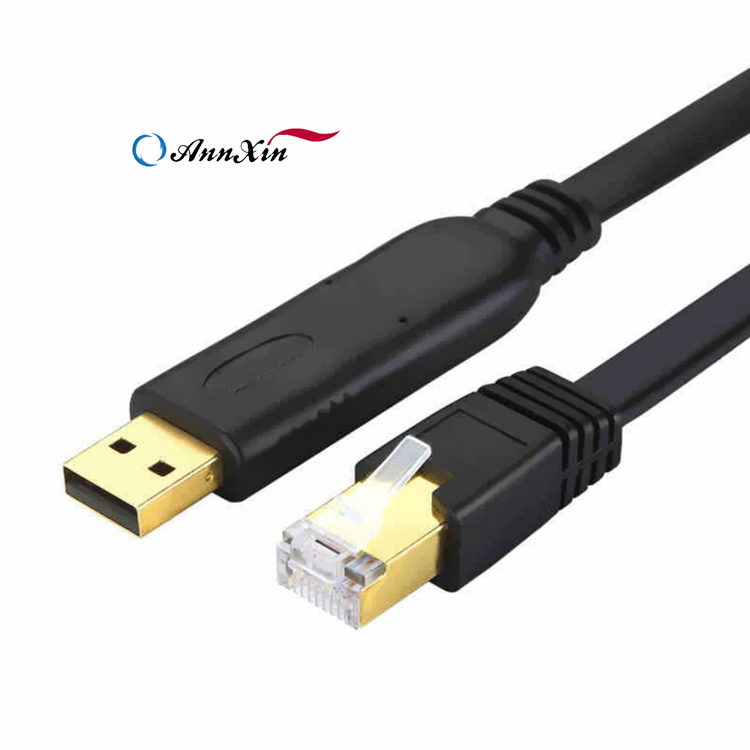

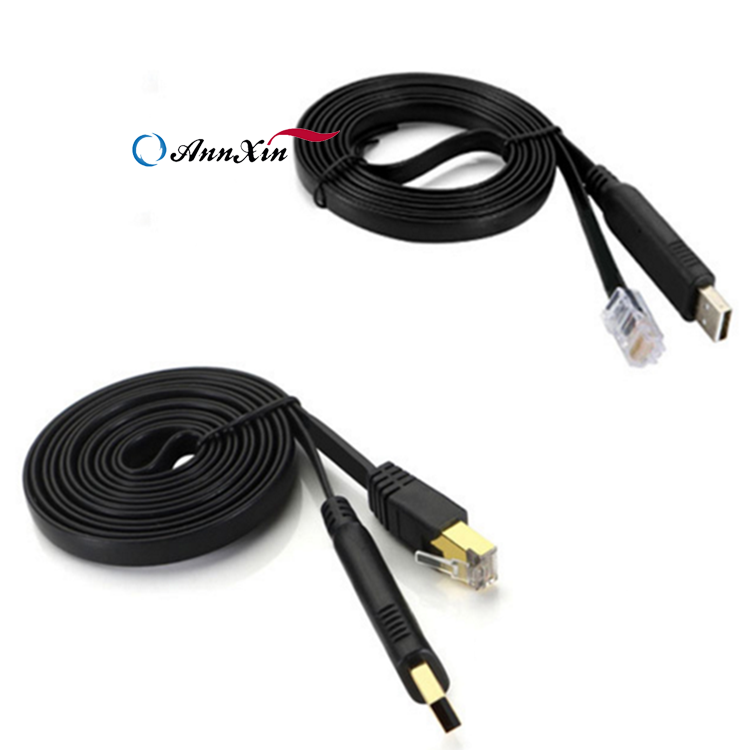

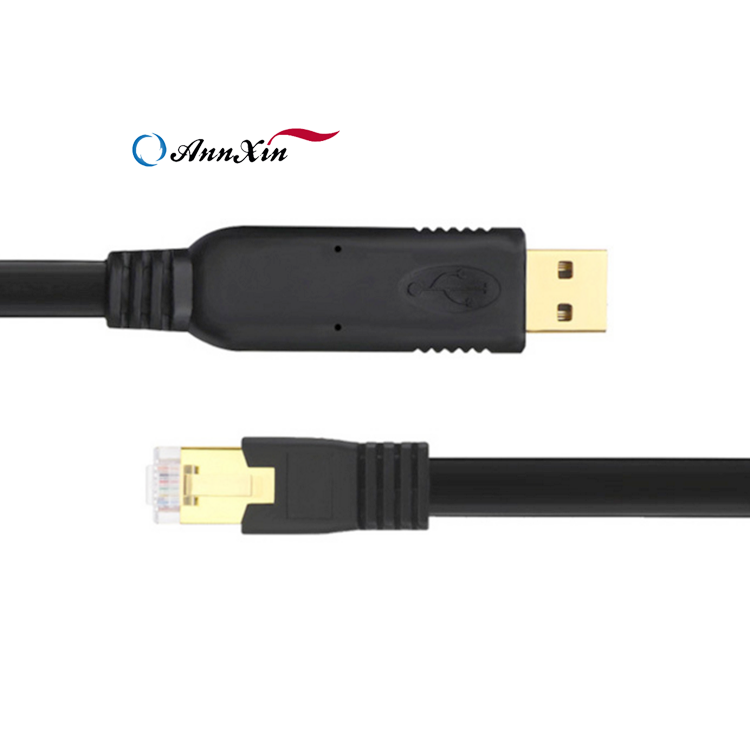

This USB-A to RJ45 console cable with gold-plated connectors and integrated FTDI chipset offers professional-grade, reliable connectivity for managing network devices with console ports. Plug-and-play support ensures hassle-free deployment across Windows, MacOS, and Linux systems.
