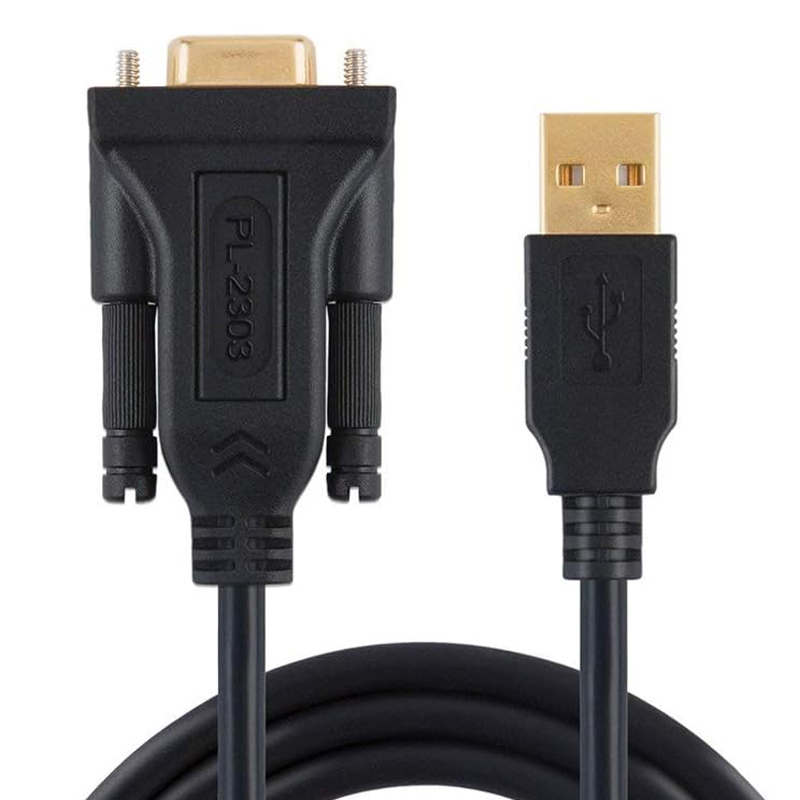

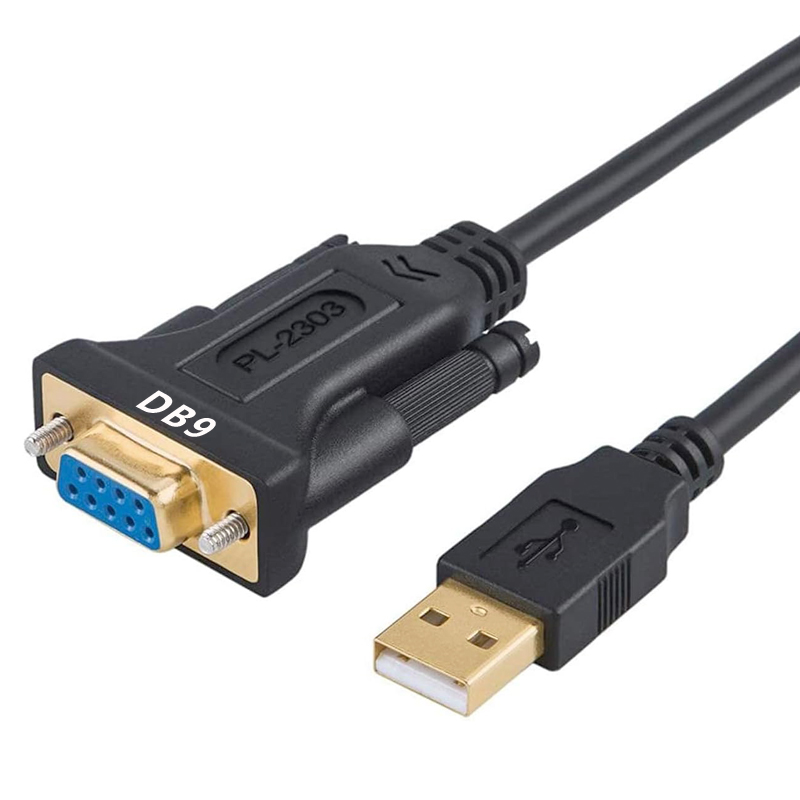

Product Name: USB to RS232 DB9 Serial Adapter Cable

Interface: USB 2.0 Type-A Male to DB9 Female

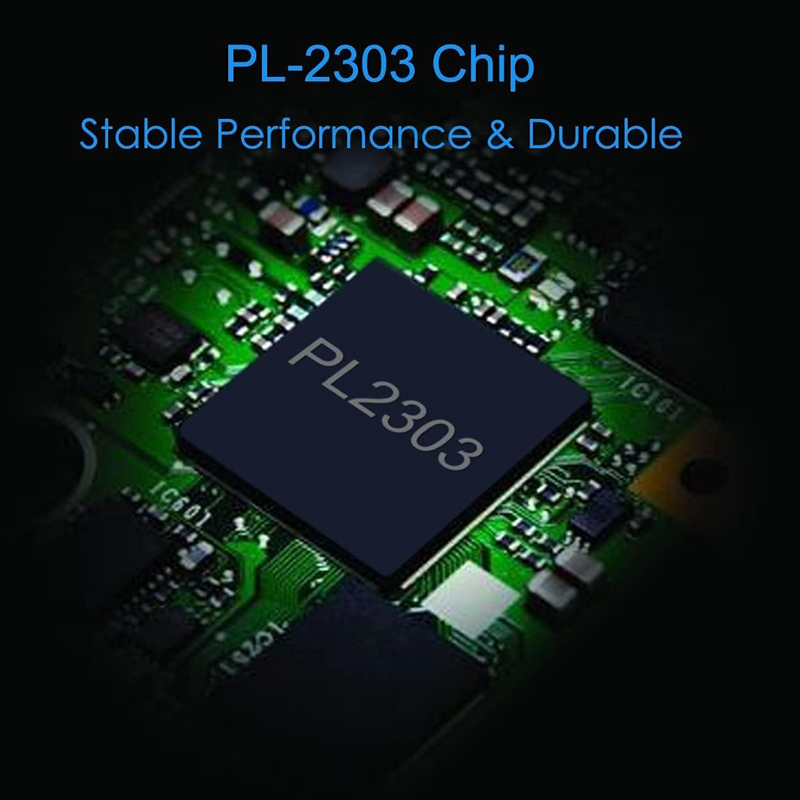

Chipset: Prolific PL2303

Connector Type: DB9 9-pin female

USB Standard: USB 2.0 backward compatible with 1.1

Baud Rate: Up to 1Mbps

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Mark, Space

Flow Control: RTS/CTS, XON/XOFF

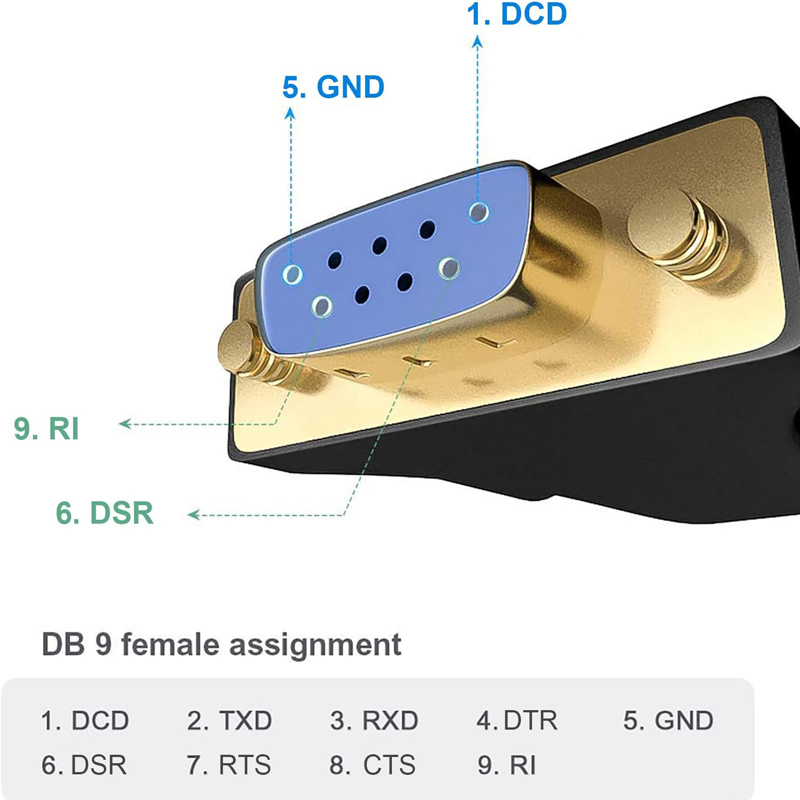

Signal: TXD, RXD, GND, RTS, CTS, DSR, DTR, DCD, RI

Operating System: Windows, Linux, Mac OS

Driver: Required (PL2303 official driver)

Cable Length: 1.0m (custom lengths available)

Color: Black

Connector Material: Gold-plated for corrosion resistance

Shell Material: ABS

Conductor: Tinned Copper

Outer Jacket: PVC Insulated

Shielding: Aluminum Foil + Braid

Installation: Plug and Play (after driver installation)

Power Supply: USB-powered

LED Indicator: Optional

Working Temperature: -10°C to 70°C

Storage Temperature: -20°C to 85°C

Humidity: 10% ~ 90% RH

Application: POS, modem, serial printers, CNC, GPS receivers

Durability: >10,000 plug cycles

Compliance: CE, FCC, RoHS

OEM/ODM: Accepted

Weight: Approx. 60g

Compatibility: USB 1.1 / 2.0 / 3.0

Mounting: Inline

Latency: Low latency conversion

Transfer Mode: Asynchronous

Wire Gauge: 28AWG

Environmental Rating: Indoor use

Corrosion Resistance: Yes (gold-plated)

Use Case: Industrial serial port expansion

Firmware Upgradeable: No

Packaging: PE Bag / Blister / OEM package

Country of Origin: China
