Product Name: USB to RS232/RS485/RS422 Serial Converter Cable

Brand: OEM

Chipset: FTDI FT232RL

Input Interface: USB Type-A Male

Output Interface: 5-position Terminal Block

Supported Protocols: RS232, RS485 (2-wire), RS422 (4-wire)

Cable Length: 1.5m / 5FT (custom available)

Color: Black

Material: PVC jacket, tinned copper wires

Operating Voltage: 5V (USB-powered)

Baud Rate: Up to 3Mbps

Signal Direction: Full duplex/half duplex (auto detection)

Isolation: Yes (electrical isolation on board)

Driver Support: FTDI official driver

Compatible OS: Windows, macOS, Linux

Installation: Plug and Play

Working Temperature: -20°C ~ 70°C

Humidity Range: 10% ~ 90% RH

Application: PLC, HMI, Modbus, industrial sensors

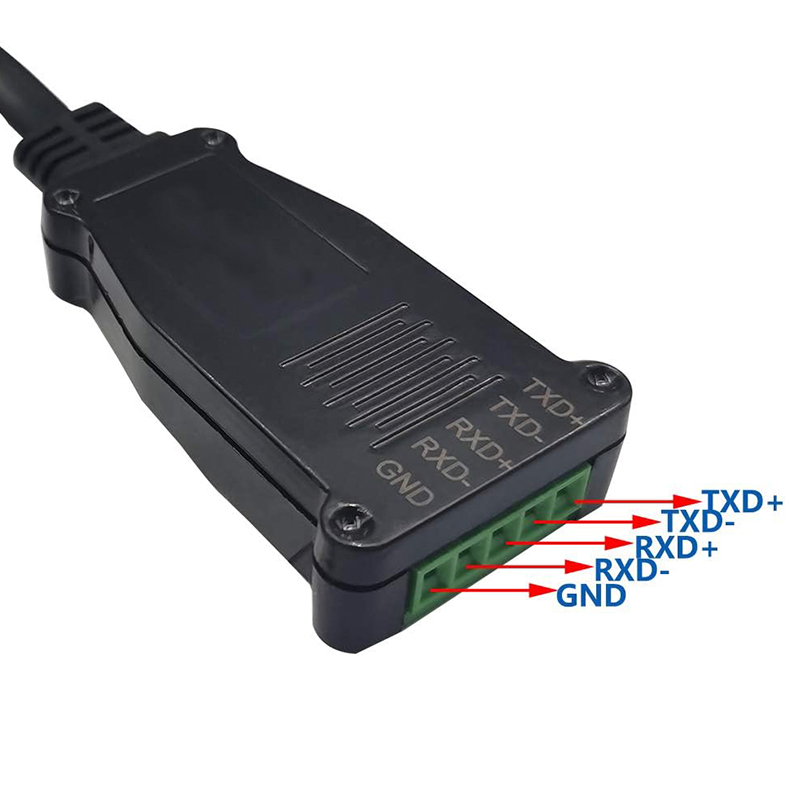

Pinout: RXD, TXD, GND, VCC, A/B or T+/T-, R+/R-

Signal Protection: ESD protection

LED Indicator: TXD, RXD, Power

Mount Type: Terminal block connection

Durability: >5000 mating cycles

Certification: CE, FCC, RoHS

Shielding: Foil + Braid

Wire Gauge: 26AWG

Power Source: USB bus-powered

Cable Type: Round

Isolation Voltage: 2.5KV

Data Bits: 7, 8

Stop Bits: 1, 2

Parity: None, Even, Odd

Flow Control: RTS/CTS, XON/XOFF

Use Environment: Industrial & Embedded

Protection: Surge and short-circuit protection

Connector Material: ABS + copper

Operating Mode: Asynchronous

Firmware Upgradeable: Yes

Packaging: PE Bag or OEM package

Country of Origin: China
