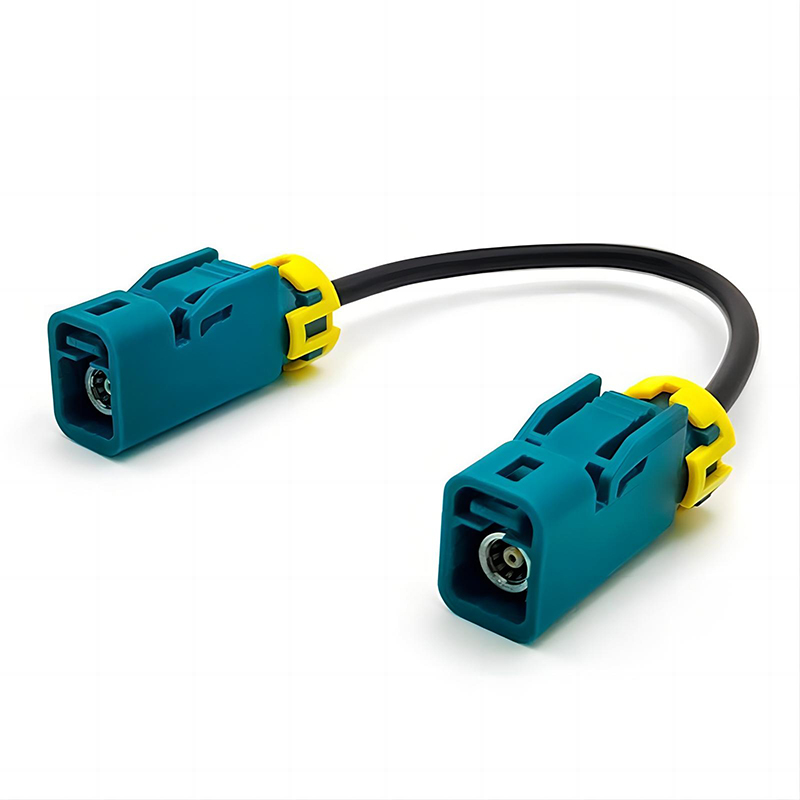

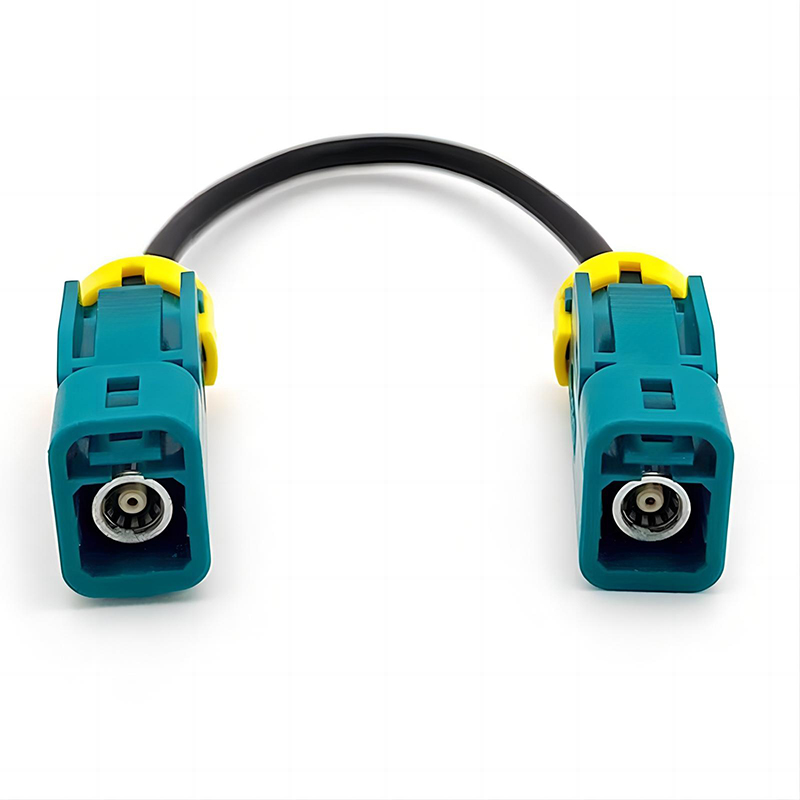

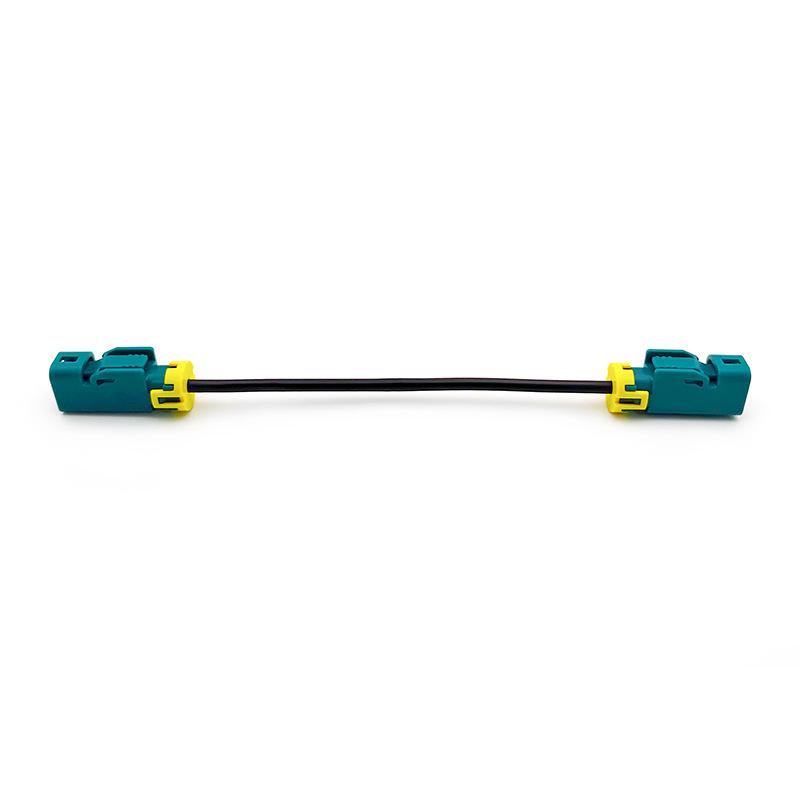

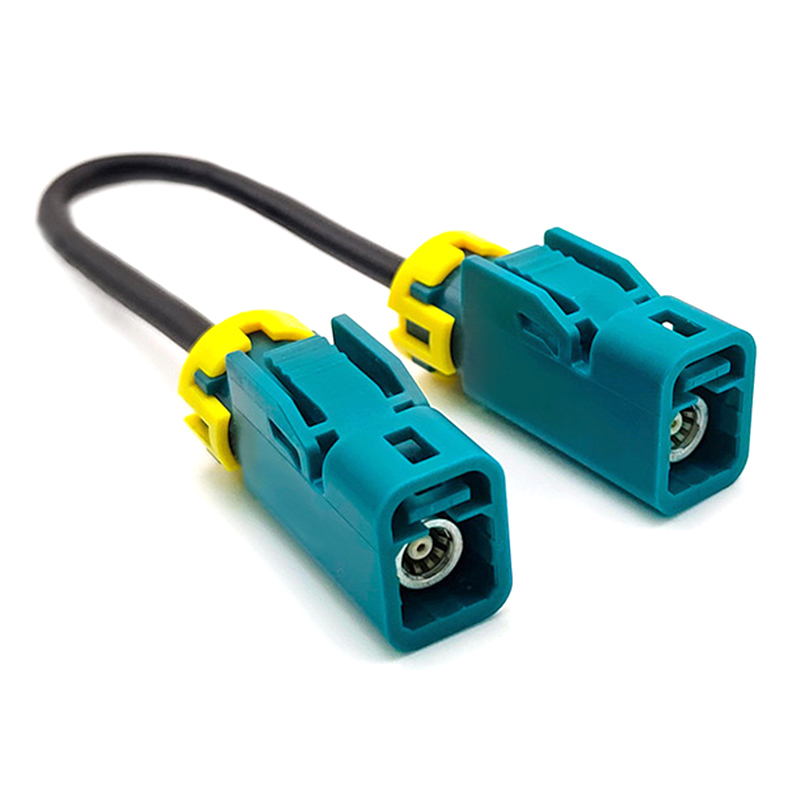

Product Name: FAKRA Z Type Female to Female Bulkhead Mount RF Coaxial Jumper Cable

Connector Type: FAKRA Z Code Female to Female

Interface Standard: FAKRA Z Code

Frequency Range: DC to 6 GHz

Impedance: 50 Ohm

Application: Automotive multimedia, antenna extension, GPS, navigation, camera

Typical Use: Antenna extension, signal jumper, rearview system, GPS navigation

Data Rate: High-frequency analog or digital signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66)

Housing Color: Blue with yellow coding

Coding Key: Z Coding

Latch Type: Push-pull locking

Cable Type: RG174 or equivalent coaxial cable

Cable Length: 20cm (customizable)

Jacket Material: PVC

Insulation Material: PE

Shielding: Braided copper

Shielding Effectiveness: ≥80dB

Temperature Range: -40°C ~ +85°C

Waterproof Rating: IP67 (when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥500 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: Stable signal transmission

EMI Protection: Excellent

Vibration Resistance: Excellent

Industry Standard: ISO 20860, FAKRA

Country of Origin: China

Customization: Length, coding, packaging

Storage Conditions: Dry and ventilated

Weight: ~25g

Packaging: PE bag or customized
