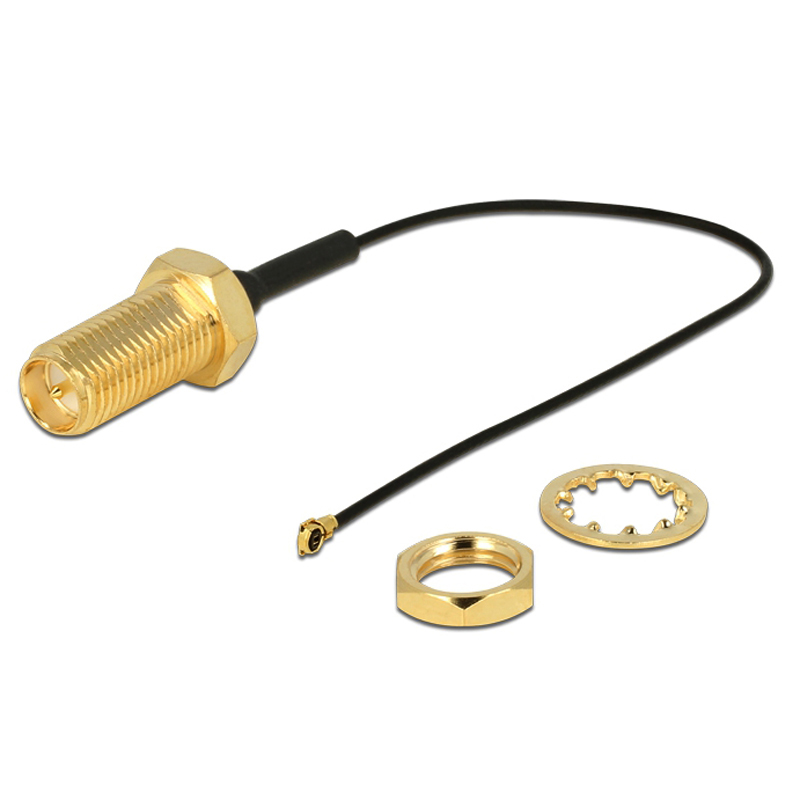

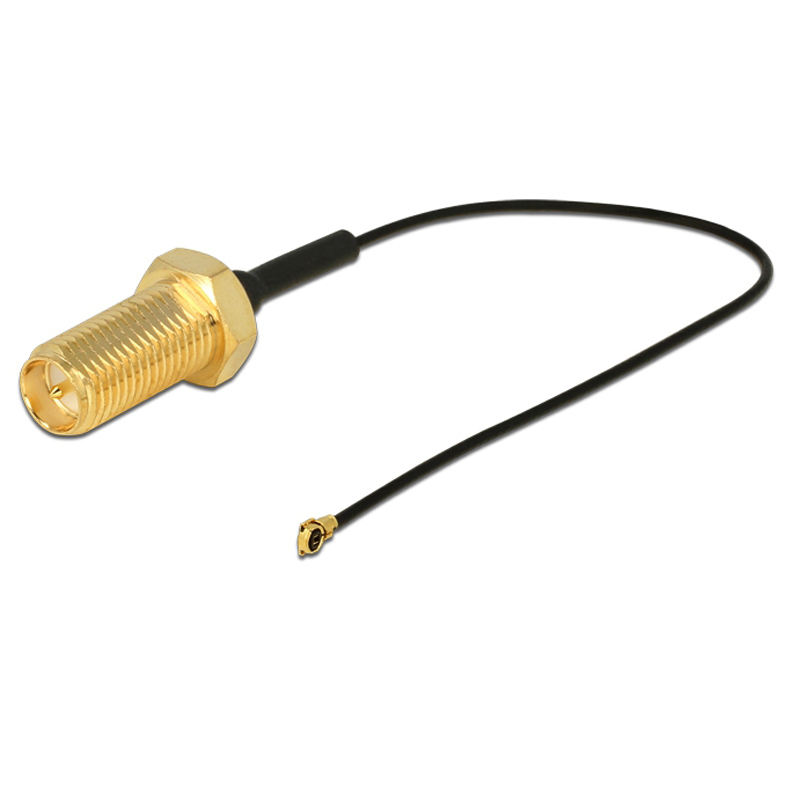

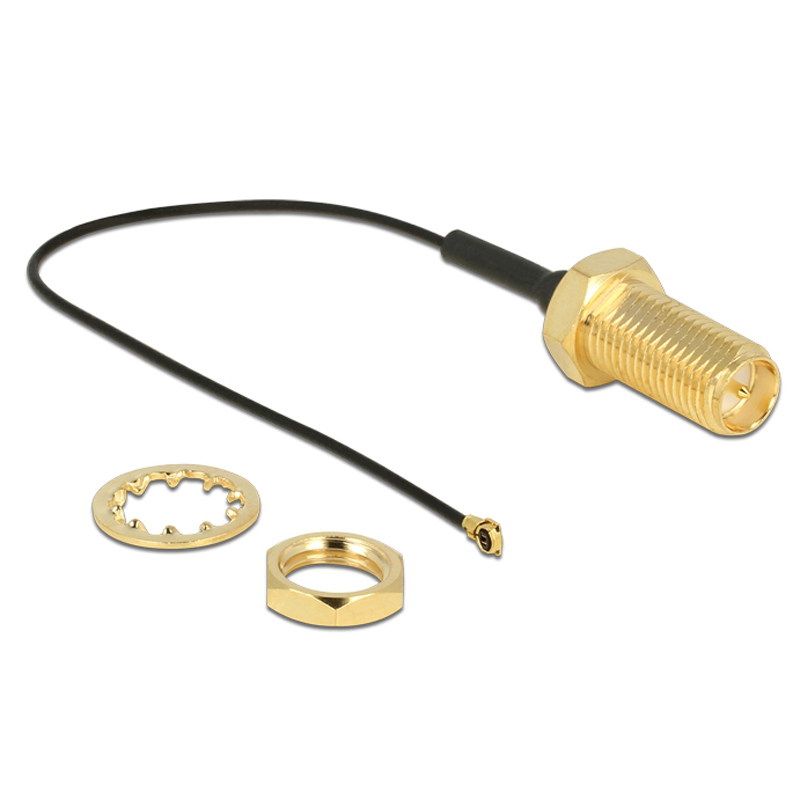

Ipex MHF4 U.FL to RP-SMA Female Bulkhead Connector Jack RG 0.81mm Coaxial Cable Assembly
❤ Add to collection

Ipex MHF4 U.FL to RP-SMA Female Bulkhead Connector Jack RG 0.81mm Coaxial Cable Assembly

This Ipex MHF4 U.FL to RP-SMA female bulkhead connector coaxial cable assembly uses ultra-thin RG 0.81mm coaxial cable, ensuring excellent flexibility, low loss, and stable high-frequency transmission up to 6GHz. Ideal for WiFi, IoT devices, drones, wireless communication, and antenna extensions, the assembly features gold-plated brass connectors and high-quality shielding. OEM/ODM customization is available, RoHS compliant, and supports stable long-term performance.
￥0.00
0.00
￥0.00
￥0.00
Weight：0.000KG
Quantity：
Quick Inquiry
Description
This Ipex MHF4 U.FL to RP-SMA female bulkhead connector coaxial cable assembly uses ultra-thin RG 0.81mm coaxial cable, ensuring excellent flexibility, low loss, and stable high-frequency transmission up to 6GHz. Ideal for WiFi, IoT devices, drones, wireless communication, and antenna extensions, the assembly features gold-plated brass connectors and high-quality shielding. OEM/ODM customization is available, RoHS compliant, and supports stable long-term performance.

Product Description

  • Product Name: Ipex MHF4 U.FL to RP-SMA Female Bulkhead Connector Jack RG 0.81mm Coaxial Cable Assembly

  • Connector A: RP-SMA Female Bulkhead Jack

  • Connector B: Ipex MHF4 U.FL Connector

  • Cable Length: Customizable (Standard length approx. 1 meter)

  • Cable Color: Black

  • Cable Type: RG 0.81mm Ultra-Thin Coaxial Wire

  • Cable Diameter: 0.81mm

  • Interface Type: RF Coaxial Interface

  • Frequency Range: DC~6GHz

  • Impedance: 50 Ohm

  • Transmission Rate: High-Speed Signal Transmission

  • Connector Material: Brass Gold-Plated

  • Conductor Material: Tinned Copper

  • Insulation Material: PTFE

  • Jacket Material: Polyethylene (PE)

  • Shielding: Single Shielded

  • Waterproof: No

  • Tensile Strength: Good

  • Flexibility: High Flexibility

  • Service Life: Long-Term Durable

  • Environmental Compliance: RoHS Compliant

  • Temperature Range: -40℃ ~ +85℃

  • Flame Retardant: Customizable

  • Mechanical Performance: High Plug/Unplug Durability, Corrosion Resistance

  • Compatible Devices: Wireless Routers, WiFi Modules, Bluetooth Modules, Drones, Surveillance Systems, IoT Devices

  • Application Scenarios: Antenna Extension, RF Module Connection, IoT, WiFi, Drones, Wireless Communication

  • Compatibility: Compatible with Various RF Modules and Antennas

  • Installation: Bulkhead Mount with Nut

  • Packing: Individual or Customized Packaging

  • Customization: OEM/ODM Supported

  • MOQ: Small Batch Accepted

  • Origin: China

  • Delivery Time: 3-5 Days

  • Quality Certification: ISO9001

  • Performance Advantages: Low Loss, Low VSWR, High Stability

  • Connection Advantages: Easy Installation, Secure Contact

  • Other Features: Lightweight, Compact Design

  • Shipping Methods: Express, Logistics

  • After-Sales Service: Technical Support and After-Sales Guidance
