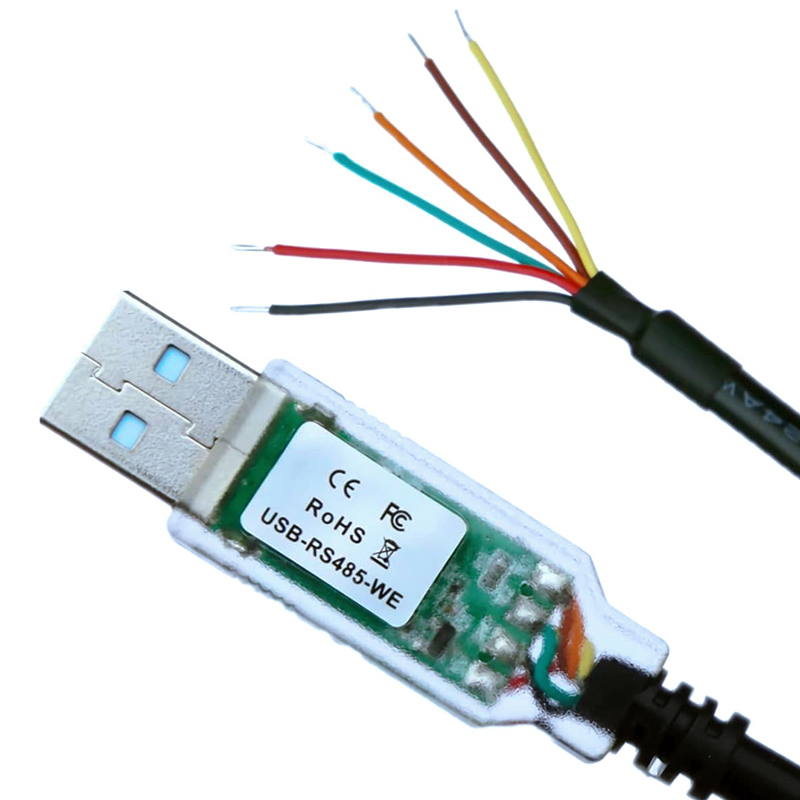

Product Name: USB to RS485 Converter Cable with Bare Wire Ends

Model: USB-RS485-WE

Chipset: FTDI FT232RL

Connector A: USB Type-A Male

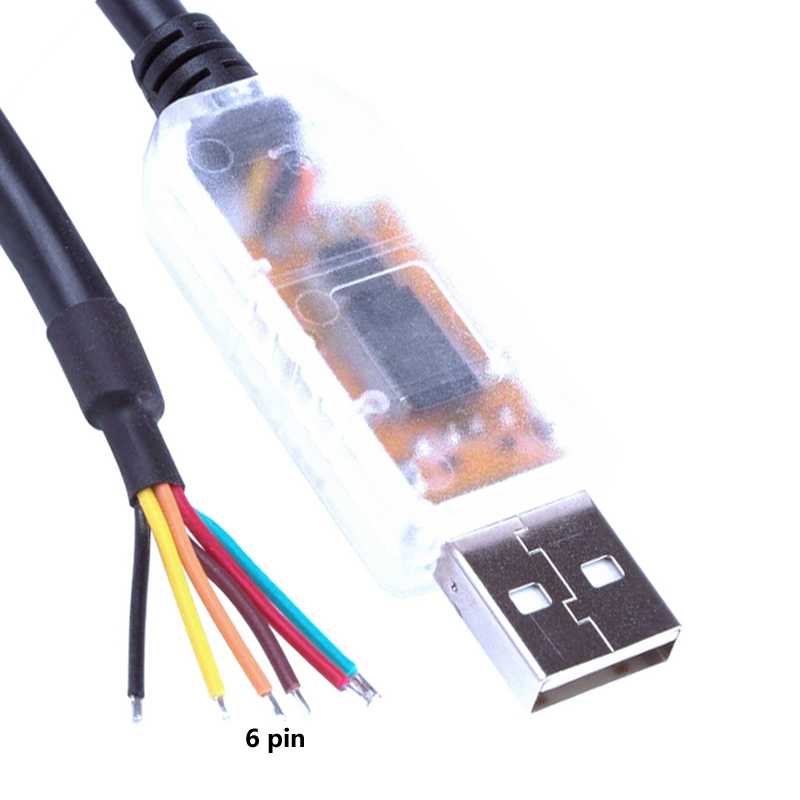

Connector B: Bare wire (6-pin)

Number of Wires: 6 (TXD, RXD, GND, VCC, D+, D-)

Signal Type: RS485/TTL serial

Baud Rate: Up to 3 Mbps

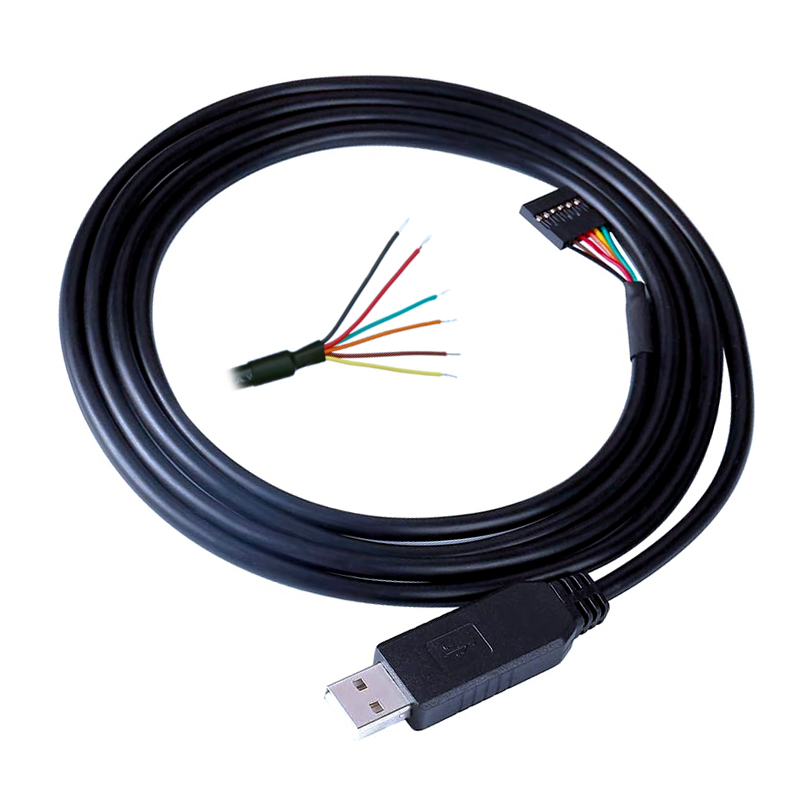

Cable Length: Approx. 1.8 meters (6FT)

Cable Jacket: PVC

Conductor: Tinned copper

Color: Transparent USB head + black cable

Operating Voltage: 5V USB-powered

Driver Support: FTDI official drivers

Compatible OS: Windows, macOS, Linux

Isolation: No (non-isolated)

Plug and Play: Yes

Usage: Serial device programming, Modbus, RS485 bus, embedded control

Certification: CE, FCC, RoHS

Shielding: No

Signal Direction: Full-duplex

Protection: Short-circuit and overvoltage protection

Data Bits: 8

Stop Bits: 1

Parity: None (default)

Humidity: 5%~95% RH

Temperature Range: -20°C to +75°C

Weight: Approx. 50g

USB Protocol: USB 2.0

Power Source: USB bus-powered

RoHS Compliant: Yes

Packaging: PE bag

Wire Colors: Multi-color labeled for easy wiring

Strain Relief: Molded connectors

OEM Support: Available

Use Environment: Industrial, laboratory, development

Warranty: 12 months

Application Fields: PLC, sensor networks, RS485 communication

Product Category: Serial Communication Adapter

Brand: OEM/ODM optional

Country of Origin: China
