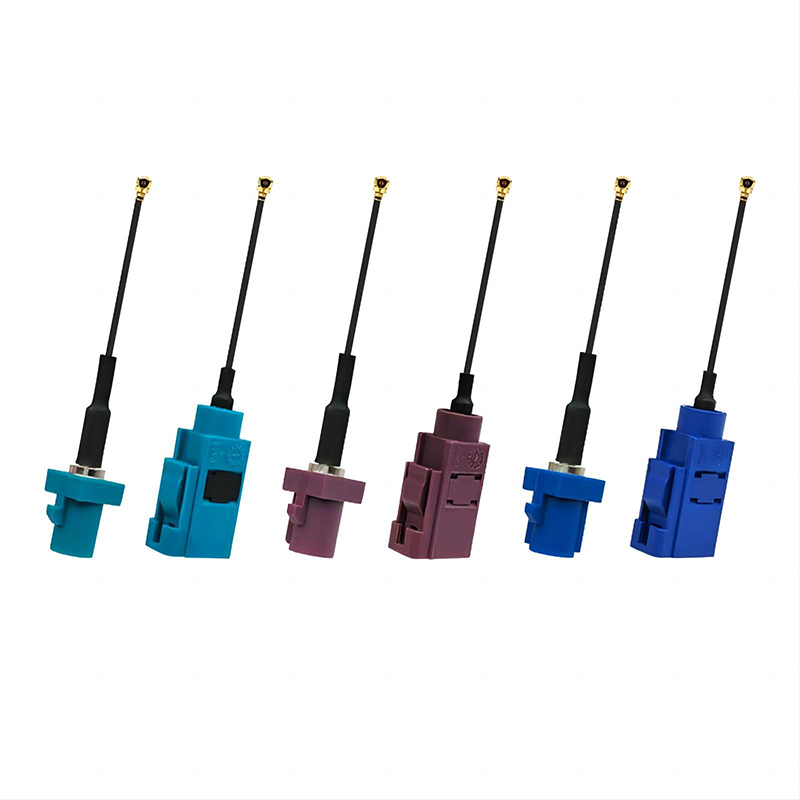

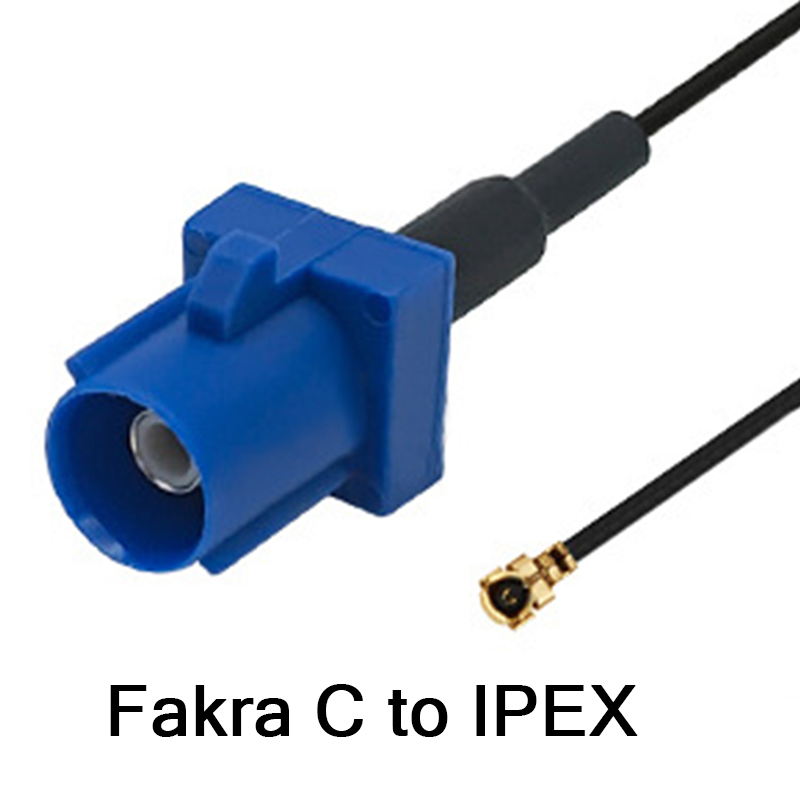

Product Name: FAKRA Code C Female to IPEX/U.FL RF Coaxial Pigtail Cable

Connector Type: FAKRA Code C Female to IPEX/U.FL

Interface Standard: FAKRA Code C, IPEX MHF

Frequency Range: DC to 6 GHz

Impedance: 50 Ohm

Application: GNSS, GPS, LTE, 4G/5G, antenna connection, RF modules

Typical Use: Automotive telematics, navigation systems, cellular modules, router boards, wireless antennas

Data Rate: High-frequency analog or digital signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66)

Housing Color: Blue

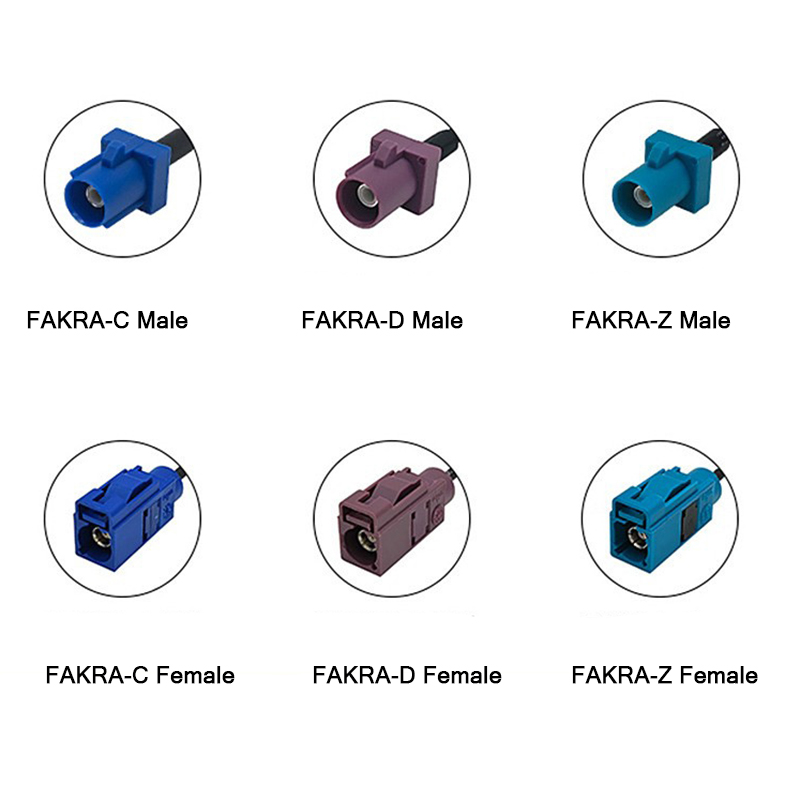

Coding Key: C Coding

Latch Type: Push-pull locking (FAKRA), snap-on (IPEX)

Cable Type: 1.13mm Micro Coaxial Cable

Cable Length: 15cm (customizable)

Jacket Material: FEP

Insulation Material: PTFE

Shielding: Braided silver copper

Shielding Effectiveness: ≥90dB

Temperature Range: -40°C ~ +85°C

Waterproof Rating: IP67 (FAKRA end when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥1000 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: Stable signal transmission

EMI Protection: Excellent

Vibration Resistance: Excellent

Industry Standard: ISO 20860, FAKRA, IPEX

Country of Origin: China

Customization: Cable length, coding, connector type, packaging

Storage Conditions: Dry and ventilated

Weight: ~10g

Packaging: PE bag or customized
