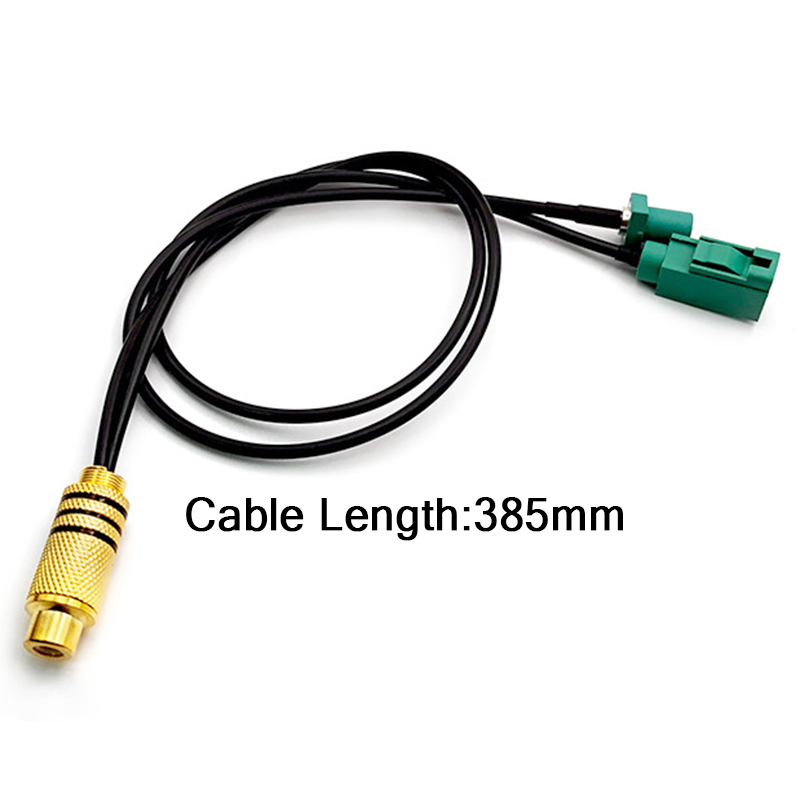

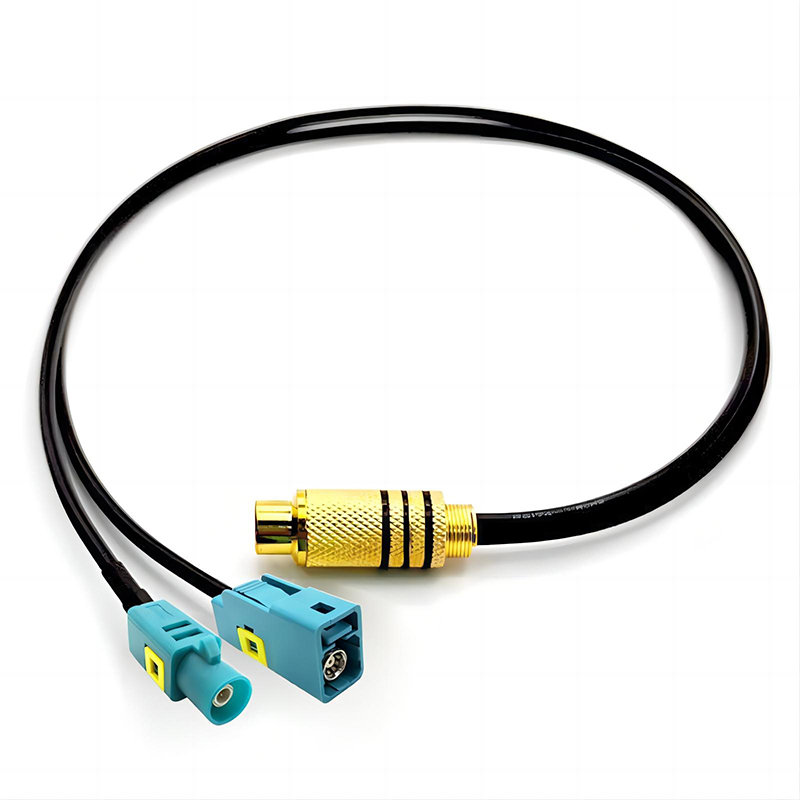

Product Name: FAKRA Adapter Splitter Video RCA Cable for Automotive Multimedia

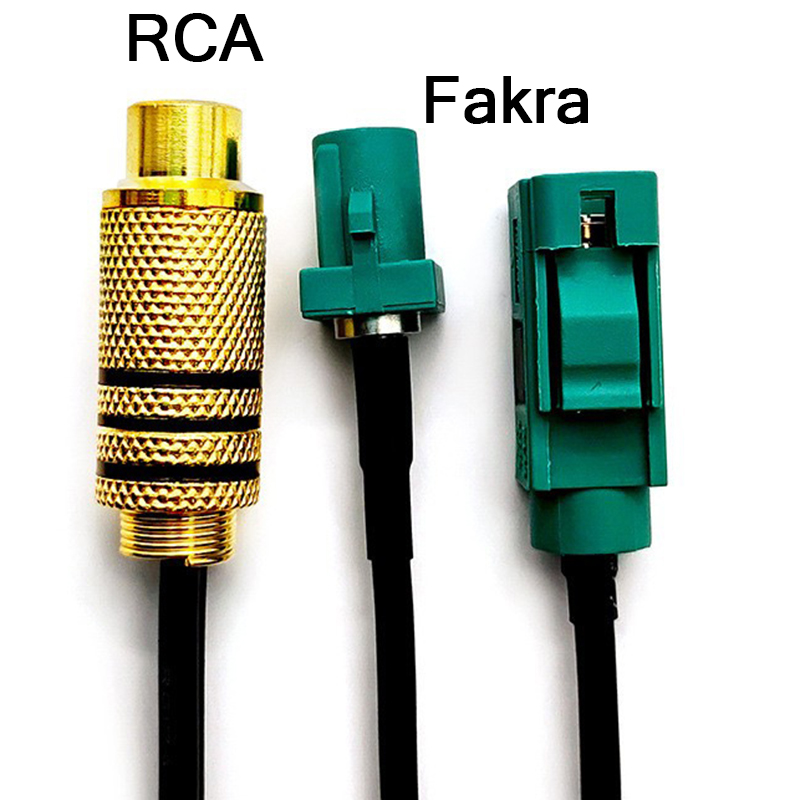

Connector Type: Dual FAKRA Z Code (Female + Male) to RCA Male

Interface Standard: FAKRA Z Code, RCA

Frequency Range: DC to 3 GHz

Impedance: 50 Ohm (FAKRA), 75 Ohm (RCA)

Application: Automotive multimedia system, camera, video splitter

Typical Use: Car reverse camera, parking assist, infotainment video

Data Rate: Analog composite video signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66)

Housing Color: Blue with yellow coding (FAKRA)

Coding Key: Z Coding

Latch Type: Push-pull locking (FAKRA) / RCA plug

Cable Type: Coaxial Splitter Cable

Cable Length: 50cm (customizable)

Jacket Material: PVC

Insulation Material: PE

Shielding: Braided copper

Shielding Effectiveness: ≥80dB

Temperature Range: -40°C ~ +85°C

Waterproof Rating: IP67 (FAKRA end when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥500 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: Stable video signal transmission

EMI Protection: Good

Vibration Resistance: Good

Industry Standard: ISO 20860, FAKRA, RCA

Country of Origin: China

Customization: Cable length, connector coding, color

Storage Conditions: Dry and ventilated

Weight: ~45g

Packaging: PE bag or customized
