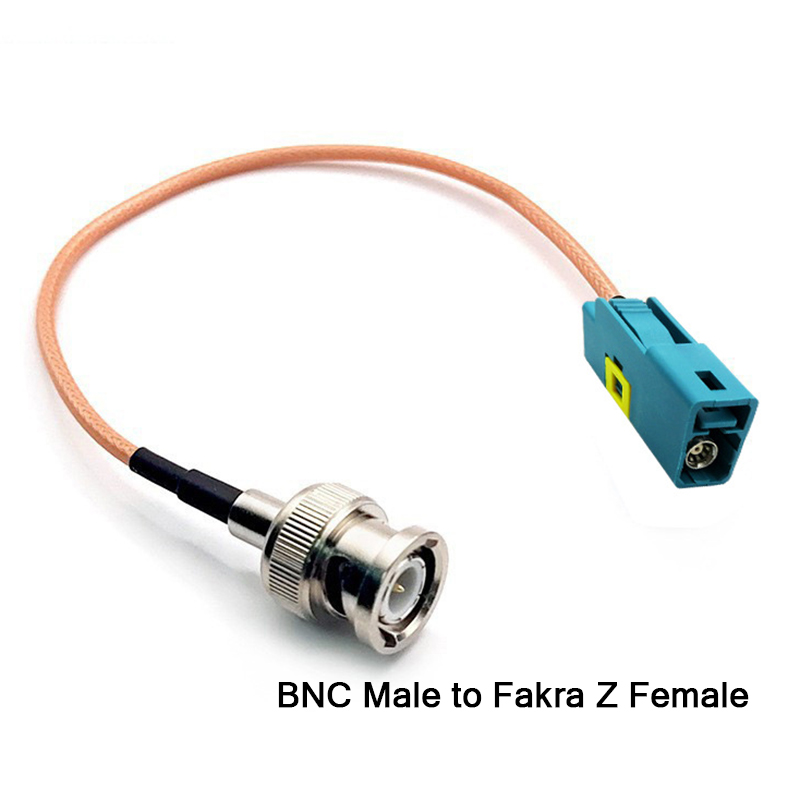

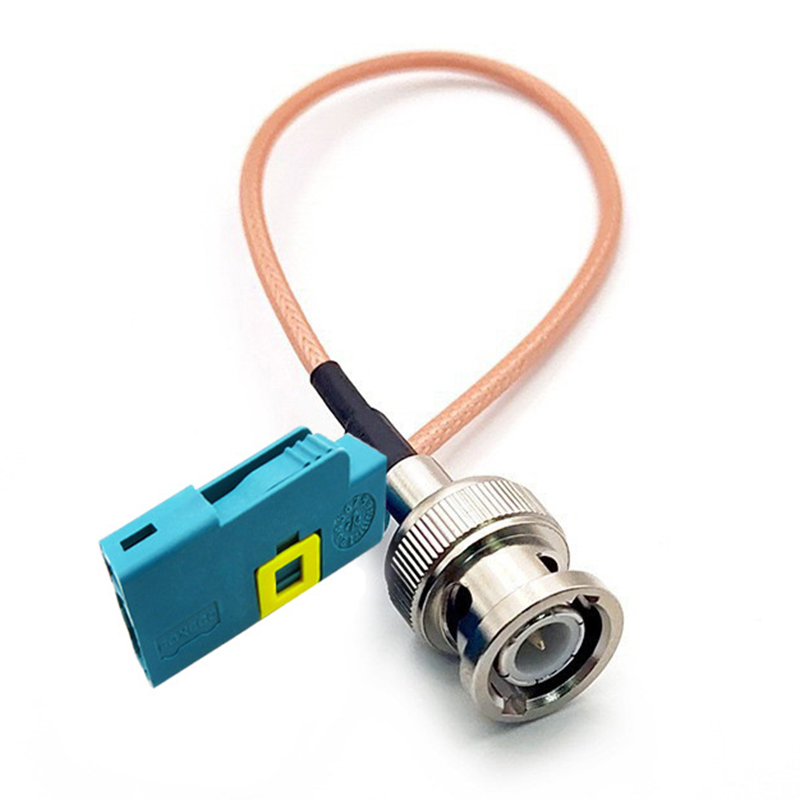

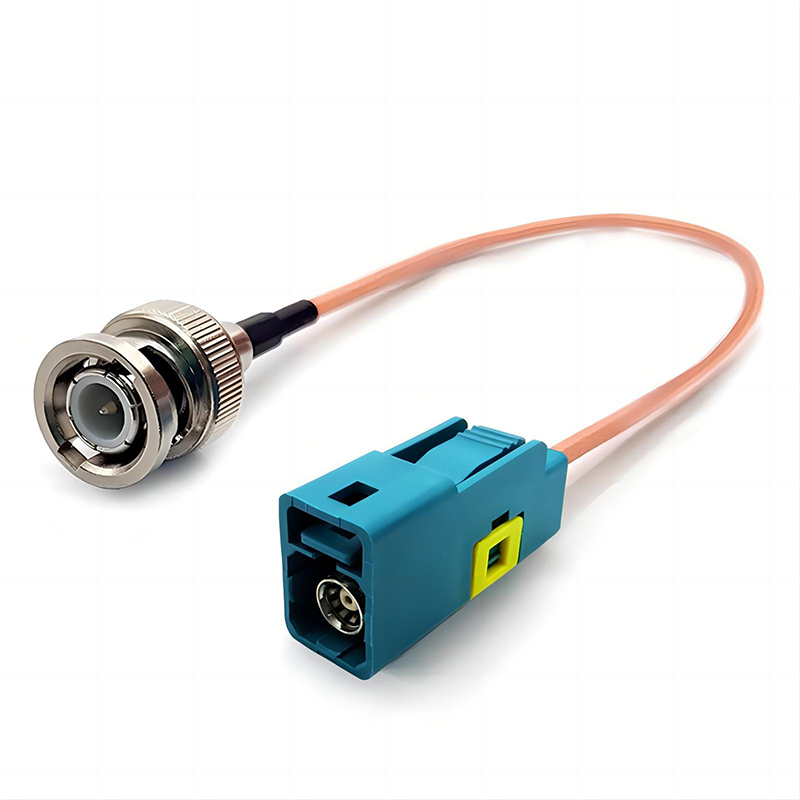

Product Name: FAKRA Z Type Female to BNC Male RF Coaxial Cable for Automotive Rearview Camera

Connector Type: FAKRA Z Code Female to BNC Male

Interface Standard: FAKRA Z Code, BNC

Frequency Range: DC to 3 GHz

Impedance: 50 Ohm

Application: Automotive reverse camera, rearview video system, dash cam

Typical Use: Car reversing systems, video signal transmission

Data Rate: Analog video or digital video signal

Connector Material: Brass with gold plating

Contact Material: Beryllium copper with gold plating

Shell Material: Thermoplastic (PA66)

Housing Color: Blue with yellow coding

Coding Key: Z Coding

Latch Type: Push-pull locking (FAKRA) / Bayonet lock (BNC)

Cable Type: RG316 Coaxial Cable

Cable Length: 50cm (customizable)

Jacket Material: FEP

Insulation Material: PTFE

Shielding: Braided silver copper

Shielding Effectiveness: ≥85dB

Temperature Range: -40°C ~ +85°C

Waterproof Rating: IP67 (FAKRA end when mated)

Flame Resistance: UL94 V-0

RoHS Compliant: Yes

REACH Compliant: Yes

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥1000MΩ

Dielectric Strength: ≥500V

Mating Cycles: ≥500 mating cycles

Assembly Method: Crimp and solder

Electrical Performance: Stable video signal transmission

EMI Protection: Excellent

Vibration Resistance: Excellent

Industry Standard: ISO 20860, FAKRA, BNC

Country of Origin: China

Customization: Cable length, connector coding, packaging

Storage Conditions: Dry and ventilated

Weight: ~40g

Packaging: Individual PE bag
