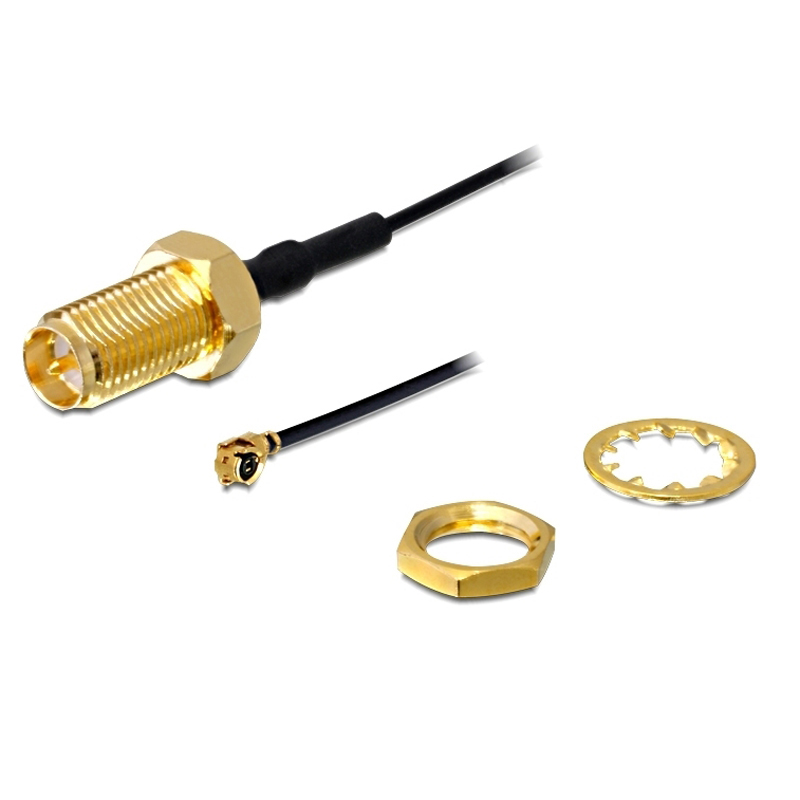

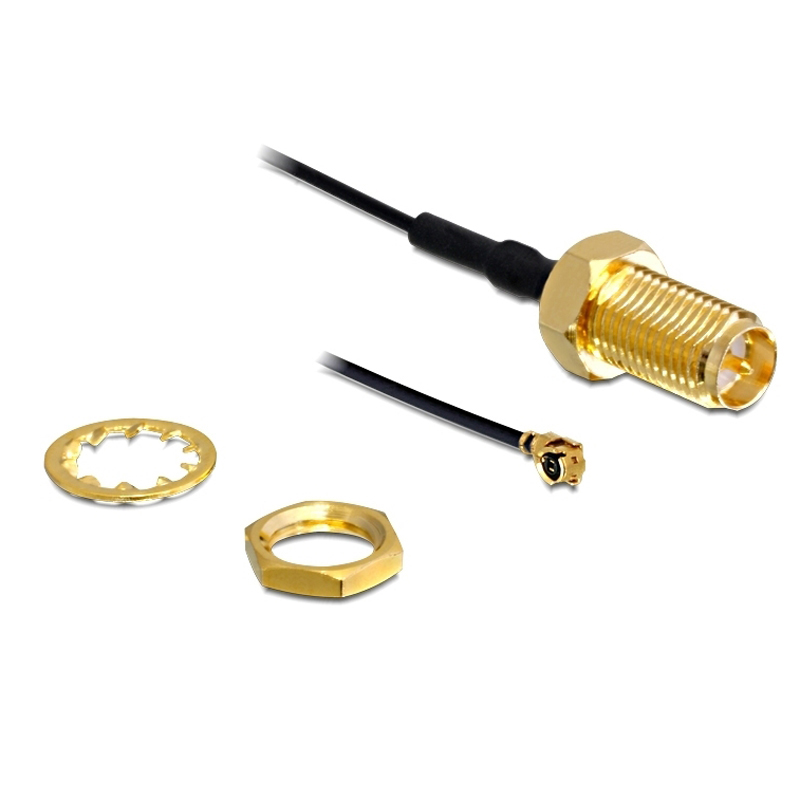

RP-SMA Female Bulkhead to IPEX U.FL RF1.13 Pigtail Coaxial Cable Assembly
❤ Add to collection

RP-SMA Female Bulkhead to IPEX U.FL RF1.13 Pigtail Coaxial Cable Assembly

This RP-SMA female bulkhead to IPEX U.FL RF1.13 coaxial pigtail cable assembly offers stable and efficient RF signal transmission. Constructed with ultra-thin RF1.13 cable and gold-plated brass connectors, it supports frequencies up to 6GHz with low loss and excellent flexibility. Widely used for WiFi, IoT devices, wireless modules, drones, surveillance systems, and antenna extensions. Supports OEM/ODM customization and complies with RoHS standards.
￥0.00
0.00
￥0.00
￥0.00
Weight：0.000KG
Quantity：
Quick Inquiry
Description
This RP-SMA female bulkhead to IPEX U.FL RF1.13 coaxial pigtail cable assembly offers stable and efficient RF signal transmission. Constructed with ultra-thin RF1.13 cable and gold-plated brass connectors, it supports frequencies up to 6GHz with low loss and excellent flexibility. Widely used for WiFi, IoT devices, wireless modules, drones, surveillance systems, and antenna extensions. Supports OEM/ODM customization and complies with RoHS standards.

Product Description

  • Product Name: RP-SMA Female Bulkhead to IPEX U.FL RF1.13 Pigtail Coaxial Cable Assembly

  • Connector A: RP-SMA Female Bulkhead

  • Connector B: IPEX U.FL Connector

  • Cable Length: Customizable (Standard length approx. 1 meter)

  • Cable Color: Black

  • Cable Type: RF1.13 Ultra-Thin Coaxial Wire

  • Cable Diameter: 1.13mm

  • Interface Type: RF Coaxial Interface

  • Frequency Range: DC~6GHz

  • Impedance: 50 Ohm

  • Transmission Rate: High-Speed Signal Transmission

  • Connector Material: Brass Gold-Plated

  • Conductor Material: Tinned Copper

  • Insulation Material: PTFE

  • Jacket Material: Polyethylene (PE)

  • Shielding: Single Shielded

  • Waterproof: No

  • Tensile Strength: Good

  • Flexibility: High Flexibility

  • Service Life: Long-Term Durable

  • Environmental Compliance: RoHS Compliant

  • Temperature Range: -40℃ ~ +85℃

  • Flame Retardant: Customizable

  • Mechanical Performance: High Plug/Unplug Durability, Corrosion Resistance

  • Compatible Devices: Wireless Routers, WiFi Modules, Bluetooth Modules, Drones, Surveillance Systems, IoT Devices

  • Application Scenarios: Antenna Extension, RF Module Connection, IoT, WiFi, Bluetooth, Security Monitoring

  • Compatibility: Compatible with Various RF Modules and Antennas

  • Installation: Bulkhead Mount with Nut

  • Packing: Individual or Customized Packaging

  • Customization: OEM/ODM Supported

  • MOQ: Small Batch Accepted

  • Origin: China

  • Delivery Time: 3-5 Days

  • Quality Certification: ISO9001

  • Performance Advantages: Low Loss, Low VSWR, High Stability

  • Connection Advantages: Easy to Install, Reliable Contact

  • Other Features: Lightweight, Compact Design

  • Shipping Methods: Express, Logistics

  • After-Sales Service: Technical Support and After-Sales Guidance
