High-quality Dual FAKRA Z Female to FAKRA Z Connector GPS Antenna Communication Cable designed for automotive GNSS/GPS modules, infotainment, and telematics systems. Built with RG316 coaxial cable for high-frequency stability and excellent EMI protection.

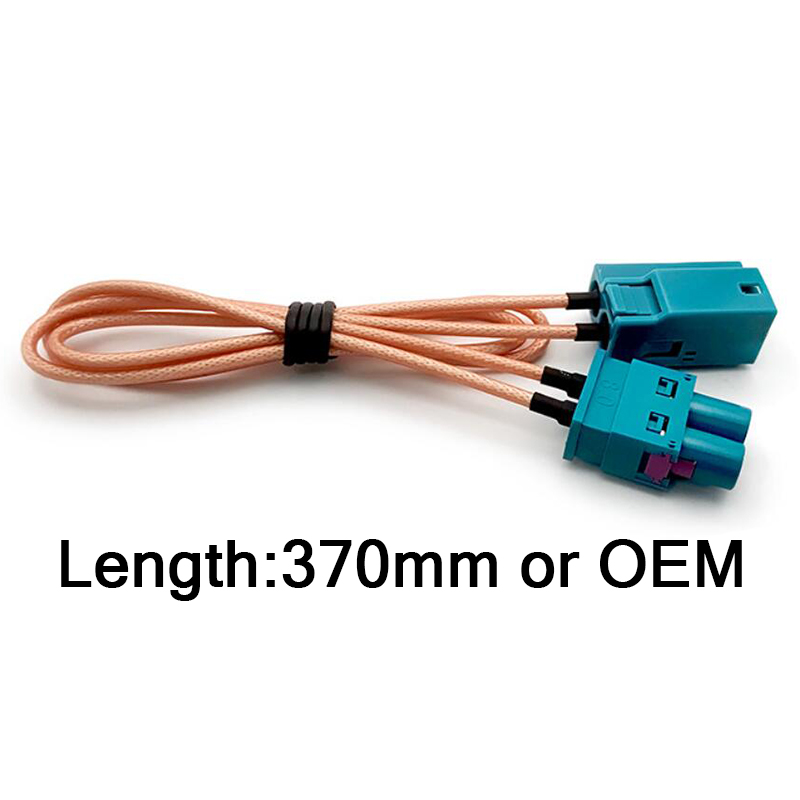

Product Name: Dual FAKRA Z Female to FAKRA Z Connector GPS Antenna Communication Cable
Connector Type: Dual FAKRA Z Code Female to FAKRA Z Code Male
Interface Standard: FAKRA Z Code
Frequency Range: DC to 6 GHz
Impedance: 50 Ohm
Application: GPS antenna, navigation system, telematics, communication, multimedia
Typical Use: Automotive GNSS/GPS modules, infotainment, camera, telematics systems
Data Rate: High-frequency analog or digital signal
Connector Material: Brass with gold plating
Contact Material: Beryllium copper with gold plating
Shell Material: Thermoplastic (PA66)
Housing Color: Blue with Z coding
Coding Key: Z Coding
Latch Type: Push-pull locking
Cable Type: RG316 Coaxial Cable
Cable Length: 30cm (customizable)
Jacket Material: FEP
Insulation Material: PTFE
Shielding: Braided silver copper
Shielding Effectiveness: ≥90dB
Temperature Range: -40°C ~ +105°C
Waterproof Rating: IP67 (when mated)
Flame Resistance: UL94 V-0
RoHS Compliant: Yes
REACH Compliant: Yes
Contact Resistance: ≤10mΩ
Insulation Resistance: ≥1000MΩ
Dielectric Strength: ≥500V
Mating Cycles: ≥1000 mating cycles
Assembly Method: Crimp and solder
Electrical Performance: Low-loss, stable high-frequency signal
EMI Protection: Excellent
Vibration Resistance: Excellent
Industry Standard: ISO 20860, FAKRA
Country of Origin: China
Customization: Cable length, coding, connector type, packaging
Storage Conditions: Dry and ventilated
Weight: ~40g
Packaging: PE bag or customized
