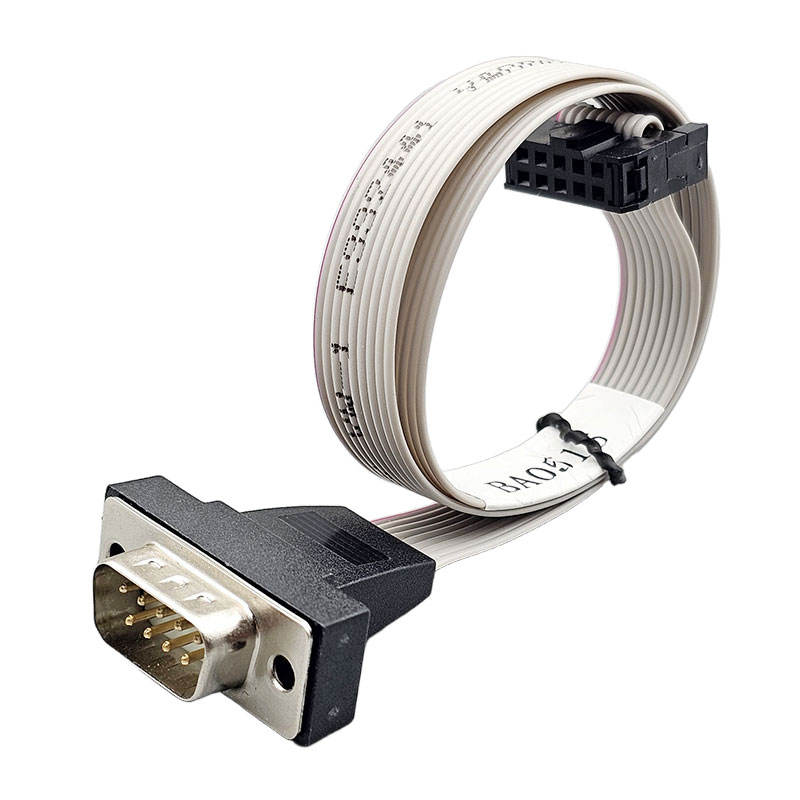

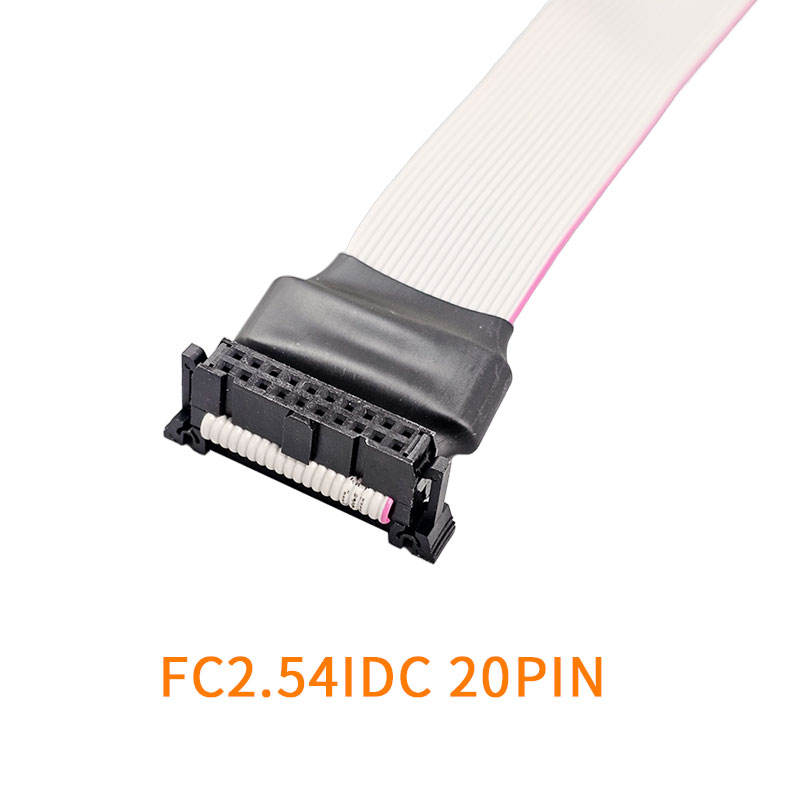

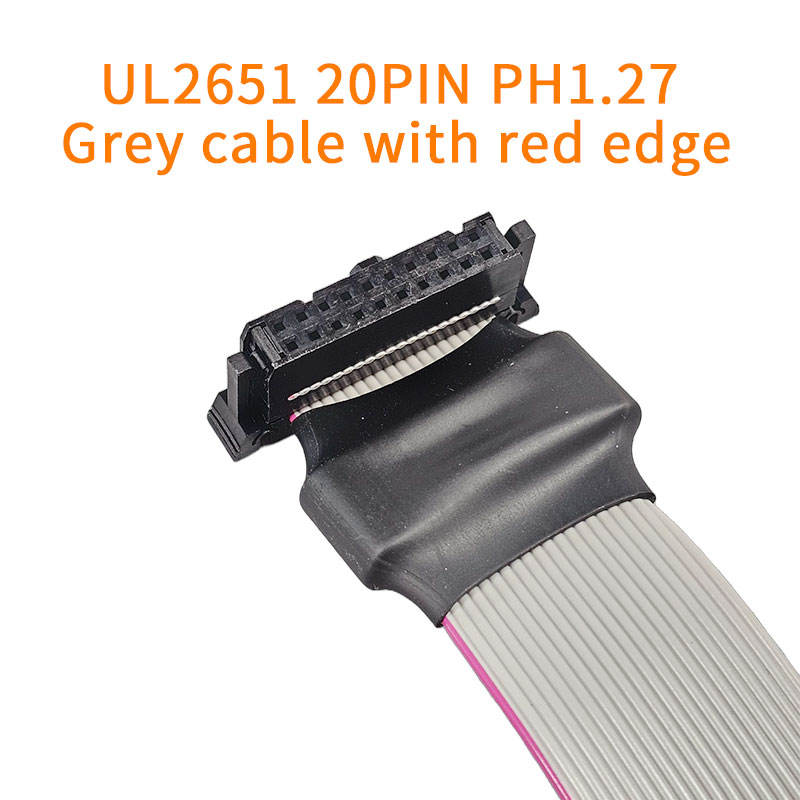

Product Introduction: Custom IDC Pitch Insulation Displacement Connector & Flat Ribbon Cable Harness

Streamline Your Mass-Termination Connections with Precision and Reliability

Our Custom IDC (Insulation Displacement Connector) Pitch Flat Ribbon Cable Harnesses offer a high-efficiency, reliable solution for internal wiring in a vast range of electronic equipment. By utilizing IDC technology, we provide a robust method for simultaneously terminating all conductors in a flat ribbon cable, ensuring consistent alignment and electrical integrity for parallel data transmission and power distribution.

Core Features & Benefits:

• High-Efficiency Mass Termination: The IDC technology allows for quick, simultaneous connection of all cable conductors to the connector contacts. This eliminates the need for individual wire stripping and crimping, significantly reducing assembly time and labor costs.

• Precision Pitch and Alignment: Available in standard pitches (e.g., 1.27mm, 2.0mm, 2.54mm) with exact conductor alignment. This ensures perfect mating with board-to-board or wire-to-board connectors, preventing misalignment and short circuits.

• Excellent Electrical Consistency: Provides stable electrical characteristics and reduced cross-talk, which is critical for reliable data transmission in digital and parallel signal applications.

• Robust and Secure Connection: The insulation displacement contacts grip each conductor firmly, creating a gas-tight connection that is highly resistant to vibration and corrosion, ensuring long-term reliability.

• Full Customization: We specialize in tailoring these harnesses to your exact needs. Customize the cable length, number of conductors, pin count, pitch, connector types (e.g., D-Sub, DIP, Box Header), and cable color.

Key Applications:

• Computer Peripherals: Internal connections for printers, scanners, and disk drives.

• Data Communication Systems: Interconnections within servers, routers, and switches.

• Industrial Control Systems (PLC): Backplane wiring and module interconnects.

• Medical Devices: Internal wiring for diagnostic and monitoring equipment.

• Test and Measurement Instruments.

• Consumer Electronics.

Commitment to Quality:

Every harness is manufactured with precision tooling and subjected to rigorous electrical testing to ensure 100% performance and compliance with industry standards.

Choose our Custom IDC Flat Ribbon Harnesses for a cost-effective, reliable, and perfectly aligned connection solution that streamlines your production process.
