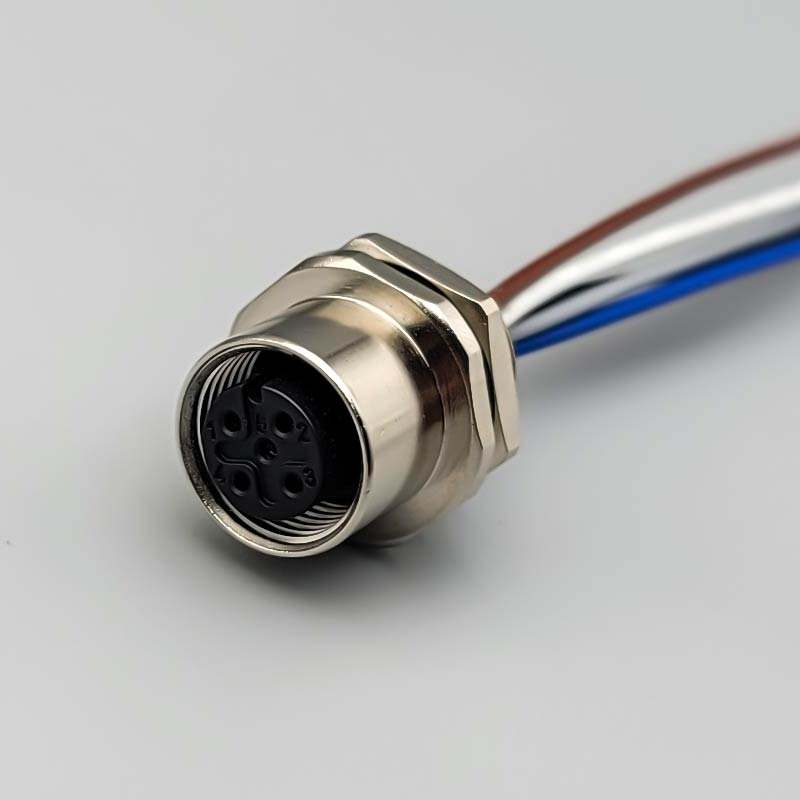

Product Introduction: Custom M12 5-Pin Waterproof Panel Mount Female Connector

A Robust Interconnection Solution for Demanding Automotive Environments

Our Custom M12 5-pin Waterproof Panel Mount Female Connector is engineered to deliver reliable, sealed performance in the challenging conditions of modern vehicles. Designed for panel or chassis installation, this connector provides a secure and durable interface for power, signal, and data transmission in a wide range of automotive and heavy-duty applications.

Core Features & Benefits:

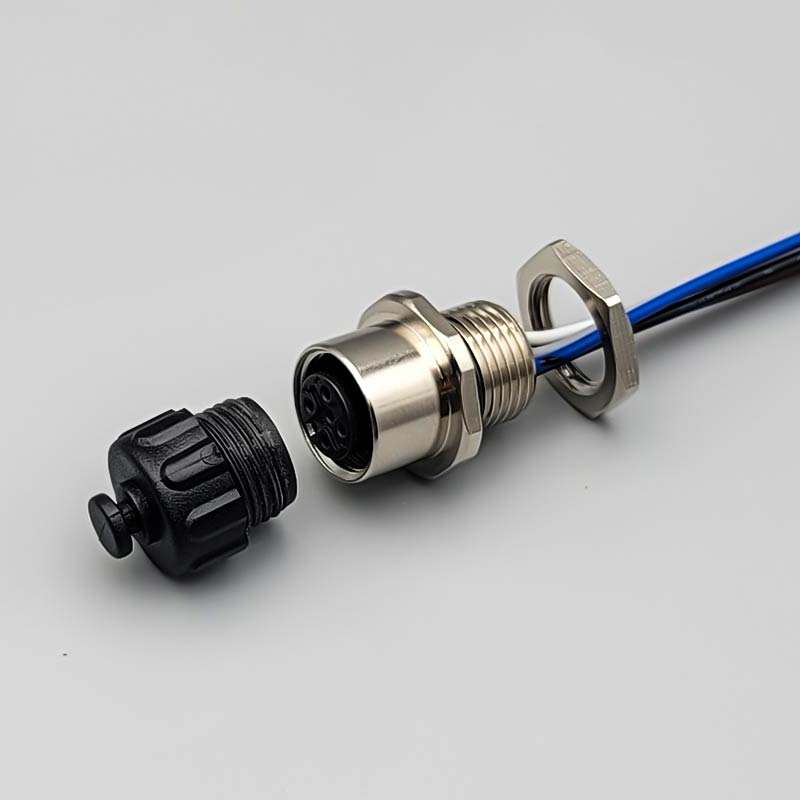

• Secure Panel Mount Design: Features a threaded nut or screw-on mounting system for easy and secure installation into panels, enclosures, or equipment walls, ensuring a stable and vibration-resistant connection point.

• Superior Environmental Sealing: Achieves a high IP67 or IP69K rating, making it completely dust-tight and protected against powerful water jets and temporary immersion. This is essential for underhood, underbody, or exterior vehicle applications.

• 5-Pin Configuration for Versatility: The 5-pin design supports a range of functions, including power with ground, sensor signals, or discrete data communication protocols commonly used in automotive systems.

• Optimized for 26 AWG Wiring: Precisely engineered to accommodate 26 AWG wires, making it ideal for low-current signal circuits, sensor connections, and data lines where smaller gauge wires are standard.

• Robust Construction & Vibration Resistance: The circular connector design with a reliable screw-locking mechanism provides excellent resistance to shock and vibration, ensuring a stable connection throughout the vehicle's lifecycle.

• High-Temperature Capability: Manufactured from engineered thermoplastics and high-quality contacts that withstand the elevated operating temperatures found in automotive environments.

• Automotive-Grade Materials: Constructed with materials that offer excellent resistance to fuels, oils, chemicals, and fluids commonly encountered in automotive and transportation settings.

Key Applications:

• Sensors: Connection point for various vehicle sensors (e.g., position, speed, pressure, temperature).

• Telematics & Control Units: Interface for GPS modules, telematics devices, and small control units.

• Camera Systems: Ideal for supplying power and receiving video signals from rear-view and surround-view camera systems.

• Lighting Systems: Connection for LED lighting modules and auxiliary lamps.

• In-Cabin Electronics: Data and power connection for infotainment systems, displays, and other interior modules.

• Heavy-Duty & Off-Highway Vehicles: Robust enough for construction, agricultural, and other commercial vehicles.

Quality Assurance:

This connector series is designed to meet rigorous automotive standards for performance, durability, and environmental resistance.

Choose our M12 5-pin Panel Mount Connector for a compact, sealed, and highly reliable interconnection solution that stands up to the demands of your automotive wiring harnesses
