  • U.FL to SMA Female RF Pigtail Cable | IPEX Mini Connector to SMA Antenna Extension Wire - 15cm (5-Pack)
    U.FL to SMA Female RF Pigtail Cable | IPEX Mini Connector to SMA Antenna Extension Wire - 15cm (5-Pack)
    U.FL to SMA Female RF Pigtail Cable | IPEX Mini Connector to SMA Antenna Extension Wire - 15cm (5-Pack)
    U.FL to SMA Female RF Pigtail Cable | IPEX Mini Connector to SMA Antenna Extension Wire - 15cm (5-Pack)
    ❤ Add to collection

  • U.FL to SMA Female RF Pigtail Cable | IPEX Mini Connector to SMA Antenna Extension Wire - 15cm (5-Pack)

    5-pack of U.FL (IPEX) to SMA Female pigtail cables for RF signal extension. Ideal for wireless modules, mini PCIe cards, drones, embedded systems, and antenna installations.
    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description
5-pack of U.FL (IPEX) to SMA Female pigtail cables for RF signal extension. Ideal for wireless modules, mini PCIe cards, drones, embedded systems, and antenna installations.

5-Pack U.FL (IPEX) to SMA Female RF Pigtail Cables - 15cm

  • Connector A: U.FL / IPEX Mini RF Connector

  • Connector B: SMA Female (Gold-plated)

  • Length: 15cm (Approx. 6 inches)

  • Cable Type: 1.13mm Mini Coaxial Cable

  • Impedance: 50 Ohm

  • Frequency Support: Up to 6GHz

  • Applications: WiFi, GPS, FPV, LTE, Zigbee, Bluetooth, Embedded Wireless Modules

  • Connector Finish: Gold-plated for corrosion resistance

  • Flexibility: Ultra-flexible and lightweight

  • Mounting: Panel mount SMA interface

  • Shielding: Single-layer shielding

  • Temperature Range: -30°C to +80°C

  • Package Includes: 5 x U.FL to SMA Female Cables

  • Use Case: Internal antenna extension for wireless cards, routers, and IoT

  • Compatibility: ESP32, Raspberry Pi, mini PCIe, M.2 Key-E modules

  • Packaging: Static-free polybag

  • RoHS Compliant

  • User name Member Level Quantity Specification Purchase Date
    • Total 0 Record
  • Satisfaction ：
No evaluation information

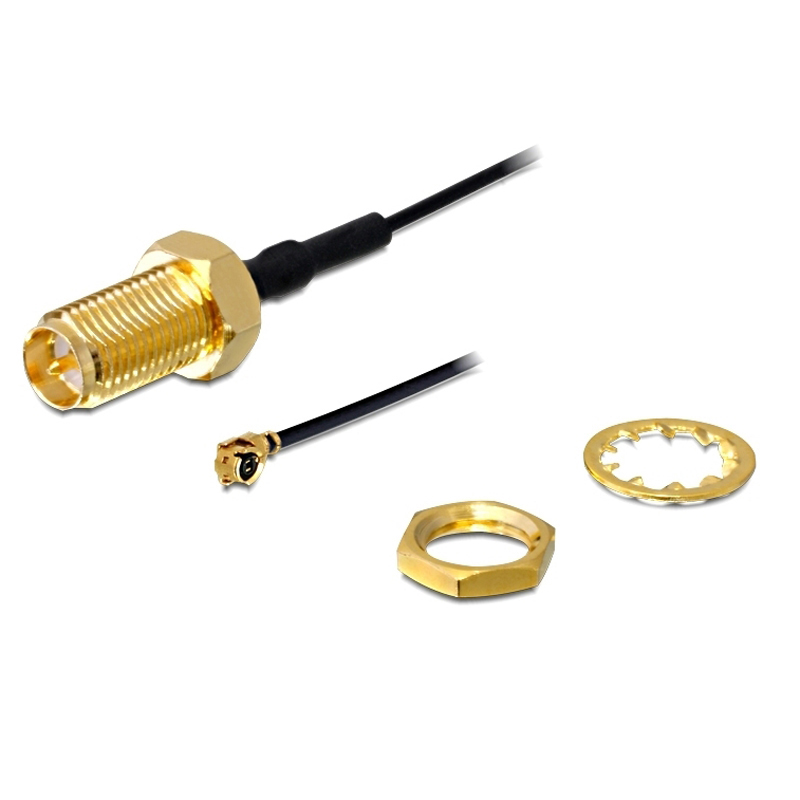

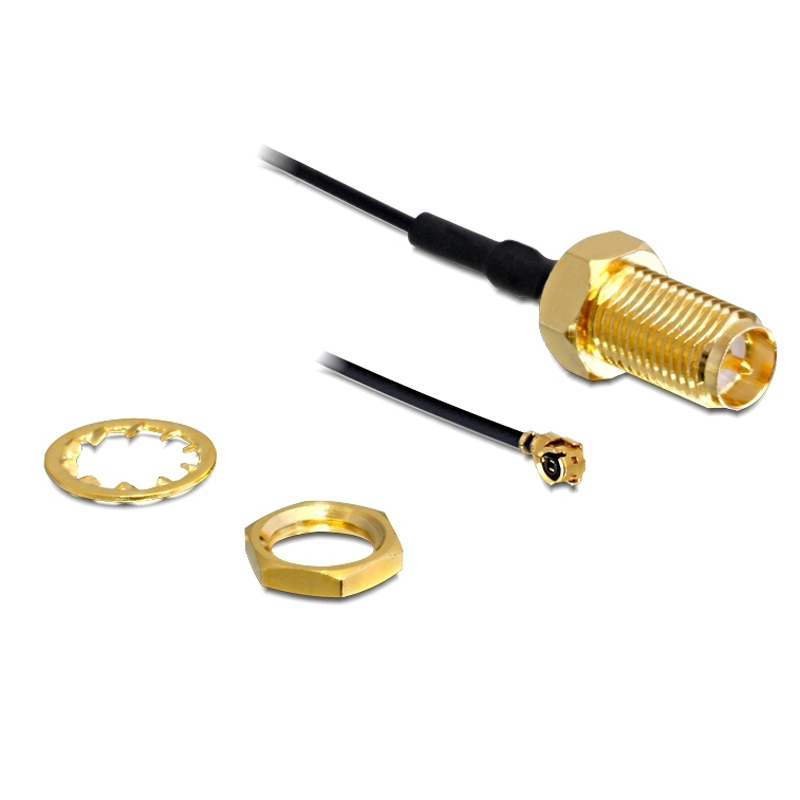

  • RP-SMA Female Bulkhead to IPEX U.FL RF1.13 Pigtail Coaxial Cable Assembly

    This RP-SMA female bulkhead to IPEX U.FL RF1.13 coaxial pigtail cable assembly offers stable and efficient RF signal transmission. Constructed with ultra-thin RF1.13 cable and gold-plated brass connectors, it supports frequencies up to 6GHz with low loss and excellent flexibility. Widely used for WiFi, IoT devices, wireless modules, drones, surveillance systems, and antenna extensions. Supports OEM/ODM customization and complies with RoHS standards.

    ￥0.00
    ￥0.00

  • 1M SMA Male Plug to IPEX UFL Female RF Coaxial Cable RF1.13 Grey Antenna Extension Cable

    This high-quality 1-meter RF coaxial cable features an SMA male straight plug on one end and an IPEX/UFL female connector on the other. Designed to fit various wireless RF modules and devices, the cable utilizes ultra-thin RF1.13 grey coaxial wire, providing high flexibility, low loss, and excellent stability. It is widely used for antenna extension, WiFi modules, Bluetooth modules, drones, security surveillance, and IoT applications. OEM/ODM customization is supported. Complies with RoHS environmental standards, ensuring long-term reliable performance.

    ￥0.00
    ￥0.00

  • Oem Long 10cm 15cm 20cm 25cm 1m 5m Rpsma Sma Rp-sma Right Angle Connector to Ipex Ufl Rf Cable

    SMA Female to ipex ufl rf coaxial cable
    cable type:rf1.13 cable
    connector:sma female right angle/ipex u.fl

    ￥0.00
    ￥0.60

  • OEM Wholesales U.fl Ufl Ipex Ipx Mhf to SMA Connector Rf 1.13 RF 1.37 Rg178 Coaxial Cable Assembly

    Connector Type:Ufl to Sma Female
    Cable Type:Coaxial
    Compatible Devices:for WiFi Router Gateway Wireless Mini PCl ExpressPClE Network Card etc.
    Recommended Uses For Product:extending or altering the connections of wirelessrouters or Mini PCle cards
    Color:SMA to U.FL
    Connector Gender:sma female to ufl
    Data Transfer Rate：3 Gigabits Per Second
    Shape：Round
    Number of Pins：5
    Frequency:6 GHz
    Model Name:IPEX to SMA Female Connector Cable

    Indoor/Outdoor Usage:Indoor
    Number of Pins:1
    Customer Package Type:protective packaging
    Outer Material:Polyethylene
