What is the difference between IEC 60320 C13 and C14?

When it comes to powering computers, servers, or LED displays, the IEC 60320 series of connectors is the global standard. Among these, the IEC 60320 C13 and IEC 60320 C14 connectors are the most commonly encountered. Although they look similar, each has a distinct role in power transmission. Understanding the difference between C13 and C14 is essential for proper cable selection and equipment compatibility.

🔌 Overview of IEC 60320 Connectors

The IEC 60320 standard defines a family of power connectors that ensure compatibility and safety across global electrical systems.
- C13 refers to a female connector (socket) typically found on the end of power cords that plug into devices.
- C14, on the other hand, is the male inlet that usually connects to a power supply unit (PSU) or device input.

When you plug a C13 power cord into a C14 socket, you create a secure, standardized connection that can carry up to 10A at 250V AC — perfect for computers, LED displays, and various office or industrial electronics.

⚙️ Physical and Functional Differences

Although IEC 60320 C13 and C14 appear similar in size and shape, their roles are opposite.
- The C14 plug has three metal pins (live, neutral, and ground) that insert into the C13 connector, which contains matching slots.
- The C13 connector is rated for 10A at 250V, while the C14 inlet is designed to receive that same rating safely.

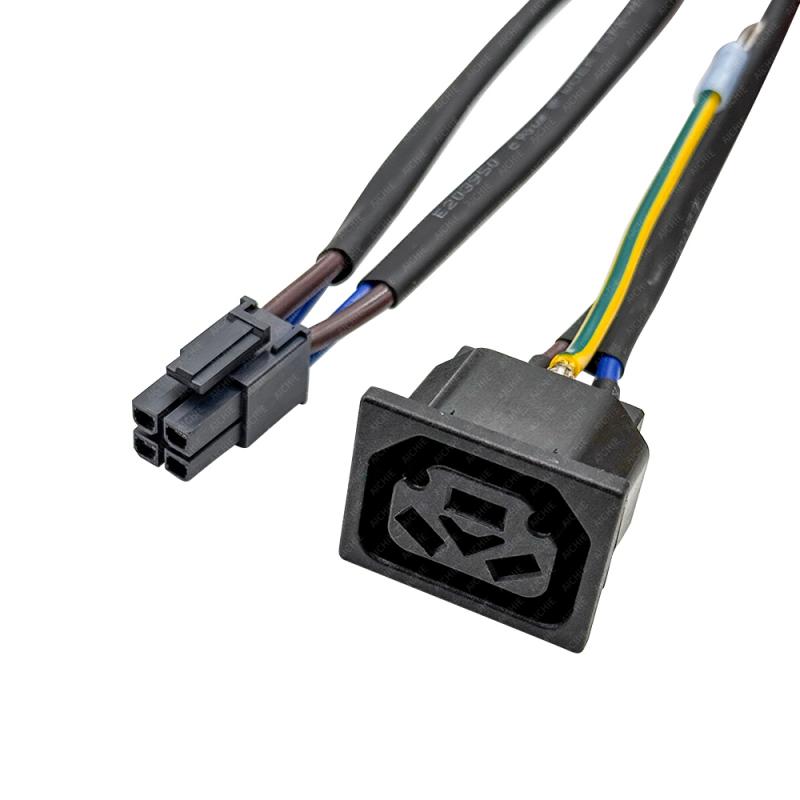

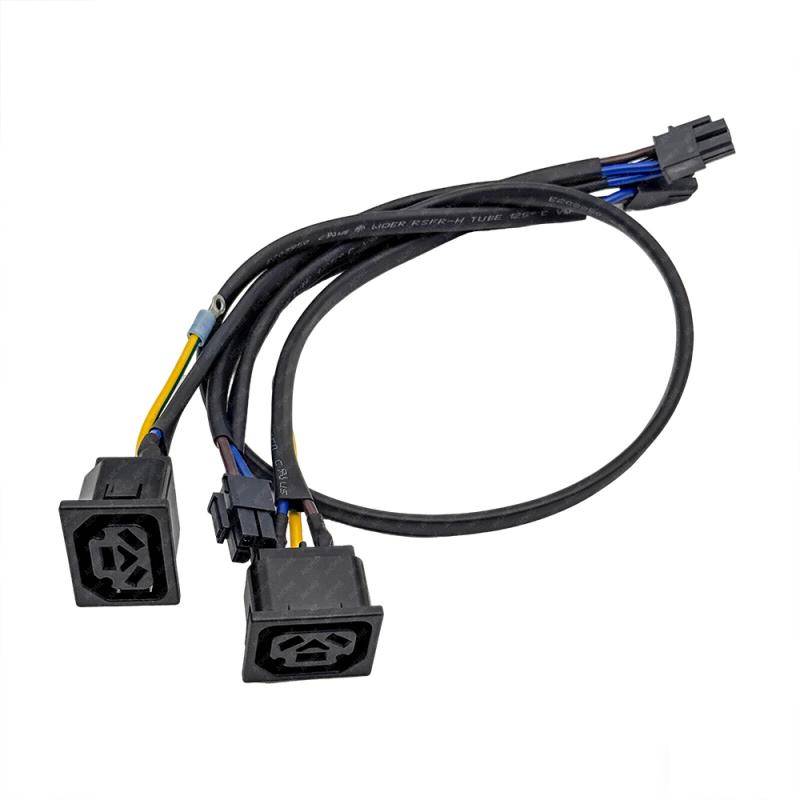

The IEC 60320 C14 Plug Power Cable With 4P Molex Wire Cable for Computers & LED Displays exemplifies how these connectors work together — the C14 inlet connects to internal power sources (such as the PSU), while the C13 end connects to the device or wall outlet.

⚡ Applications in Electronics and Computing

In a typical desktop PC setup, you’ll find the IEC 60320 C14 plug lead on the power supply unit, and a computer power cable IEC C14 extending from it. This setup allows you to connect directly to mains power or use a C14 to 4-pin Molex cable when linking to internal components or LED modules.

Similarly, LED display systems often employ IEC C14 to Molex adapter cables or PC PSU Molex wiring harnesses to distribute power efficiently among multiple modules. These cables are also popular in server racks and industrial equipment because of their standardized, reliable connection.

🧠 Compatibility and Safety Considerations

The primary rule when dealing with these connectors is C13 always connects to C14 — never the other way around. The male C14 inlet is typically recessed into equipment to prevent accidental contact, ensuring electrical safety.
Always use cables rated for your device’s power requirements — for instance, a certified IEC 60320 C14 power cord 10A 250V provides consistent performance and compliance with global electrical standards.

Using the wrong connector type can lead to overheating, loose connections, or even electrical hazards. Always match connectors according to the IEC specification printed on the plug housing.

🔄 Global Naming and Variants

The IEC 60320 appliance coupler C14 is internationally recognized. However, regional naming conventions vary: - In the UK, it’s often called a kettle lead plug. - In North America, it’s referred to simply as an IEC C14 inlet. - In some European markets, it may appear as an IEC320 C14 power cord or universal computer power cord.

Despite regional naming, the underlying design remains standardized worldwide. The internal/external converter cable versions allow for even more flexibility in different power setups — for example, when converting between desktop PC mains leads and LED display power harnesses.

💡 How to Identify Them at a Glance

A quick way to distinguish between C13 and C14: - The C13 has holes (female connector) and is usually at the cable end. - The C14 has pins (male inlet) and is usually mounted on the device.

When viewed side by side, the C14 connector appears slightly bulkier, with angled corners that prevent incorrect insertion. This mechanical keying is a built-in safety feature defined by the IEC standard.

✅ Final Thoughts

The difference between IEC 60320 C13 and C14 lies in their purpose and position within the power chain — one delivers power (C13), and the other receives it (C14). Together, they form a reliable and internationally compatible solution for powering electronics.

Understanding these connectors ensures you can choose the right IEC 60320 C14 plug lead or computer power cable IEC C14 for your setup — whether it’s a desktop PC, an LED display system, or a professional-grade power harness.
