How Can You Identify High Voltage HV Cables on an EV?

Electric vehicles (EVs) operate on complex electrical systems that use high voltage (HV) power to deliver energy efficiently from the battery to the motor. Identifying high voltage cables in an EV is critical for safety, maintenance, and understanding the vehicle’s electrical structure. Whether you are a technician, a researcher, or an EV enthusiast, knowing how to recognize these cables can prevent accidents and ensure proper handling.

1. Understanding High Voltage Systems in EVs

EVs operate with voltages ranging from 400V to over 800V in advanced models. These high-voltage systems power essential components such as the traction motor, inverter, and DC/DC converter. Within this network, the Custom EV Cable New Energy Bus High Temperature High Voltage Wire Harness acts as the main channel that distributes power across the system safely. This wire harness is specially engineered to withstand extreme temperatures and mechanical stress while maintaining electrical stability.

High voltage wiring harnesses are different from regular automotive cables. They are designed with thick insulation layers, shielding for electromagnetic protection, and clear external identifiers for safety compliance.

2. Visual Identification – The Orange Standard

The easiest way to identify high voltage cables in an EV is by their orange color. This color is a global industry standard that alerts anyone working around the vehicle that these cables carry dangerous levels of voltage.

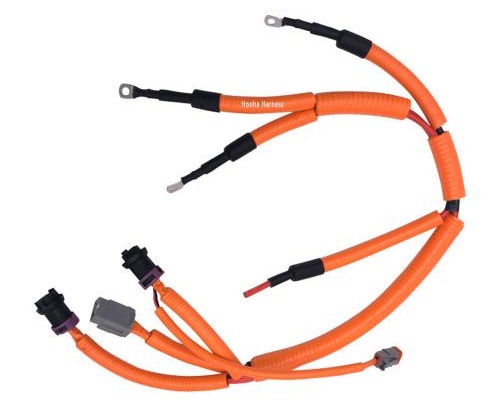

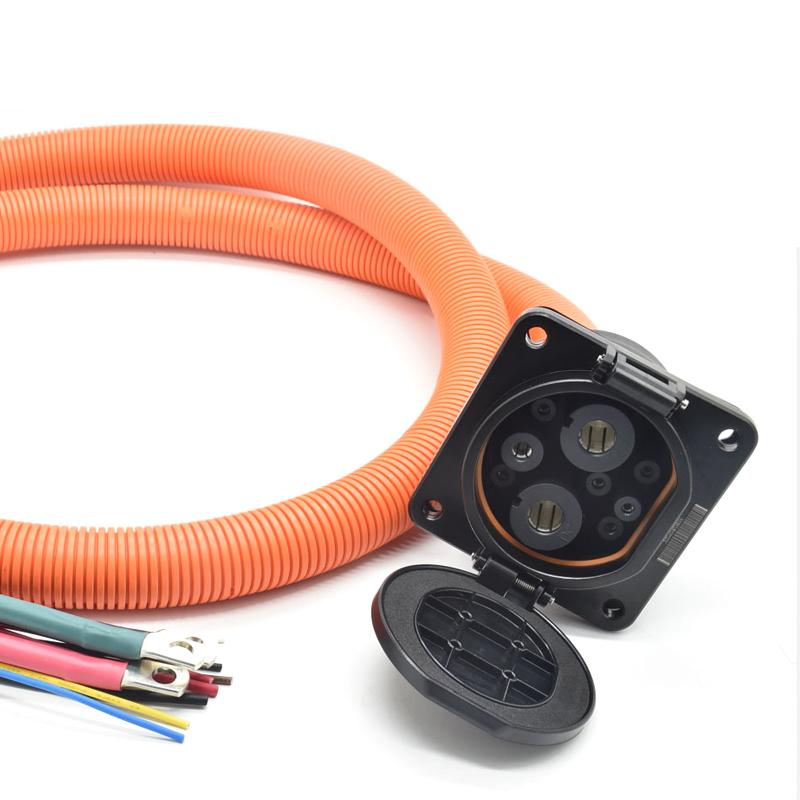

In heavy-duty applications such as electric buses, New energy bus HV orange cable wiring harnesses are used to connect the battery pack with the inverter and motor. These cables are coated with heat-resistant insulation materials that protect both the vehicle and its technicians from electric hazards.

When inspecting an EV, always remember: orange cables = high voltage. Never touch, cut, or probe these cables without proper isolation and safety tools.

3. Construction and Safety Features

A Custom EV high voltage wire harness for new energy buses is made up of several layers, each serving a specific purpose:
- Conductive Core: Usually multi-stranded copper or aluminum for flexibility and high current flow.
- Insulation Layer: Made from materials such as XLPE or silicone rubber, resistant to high temperatures and voltage breakdown.
- Shielding Layer: Blocks electromagnetic interference (EMI) from affecting nearby electronics.
- Protective Sheath: Provides abrasion and chemical resistance while keeping the cable flexible.

These cables are often part of a high voltage cable harness assembly for electric bus powertrains, built to international standards like ISO 19642 and LV 216 to ensure performance and safety.

4. Labeling and Marking

In addition to their color, HV cables are marked with labels or tags that specify voltage ratings, manufacturer codes, and caution symbols. These markings help maintenance engineers quickly identify the purpose and rating of each line.

For example, the battery to inverter high voltage wire harness for EV buses will have distinct tags near the connectors to indicate it carries DC power between the battery pack and power electronics. Some harnesses may also include QR codes for traceability in modern EV manufacturing.

5. Thermal and Environmental Resistance

Because EVs operate under extreme temperature variations, New energy electric bus high temperature HV wiring harnesses are designed to perform reliably from -40°C to 150°C. The materials resist oil, moisture, and salt corrosion — critical for ensuring long service life.

These properties are essential for buses and trucks, where constant load cycles and outdoor exposure can cause conventional wiring to degrade quickly.

6. Safety Guidelines When Handling HV Cables

If you’re working on an EV:
- Always disconnect the high-voltage system before servicing.
- Use insulated tools certified for high voltage work.
- Wear Class 0 or higher-rated gloves and protective goggles.
- Never cut or splice HV cables manually; use only OEM-specified harness assemblies like custom high temperature high voltage EV bus cable assemblies for replacements.

⚙️ Conclusion

Identifying high-voltage cables in EVs requires attention to color, labeling, and structure. With standardization across the industry, it has become easier to recognize and handle these components safely. The distinctive orange color, reinforced shielding, and detailed markings all signal their high-voltage nature.

As EV technology evolves, so do the standards for cable design and safety — ensuring that vehicles remain efficient and technicians stay protected.
