Behind the sleek panels and user-friendly interfaces of every modern home appliance lies a critical component that seldom receives the attention it deserves: the internal wiring harness. This assembly, far more than a simple bundle of wires, functions as the appliance's central nervous system. It is responsible for the reliable transmission of power and signals between the control board, motors, sensors, and displays. A failure in this appliance internal wiring can lead to anything from a minor inconvenience to a complete product breakdown or, in worst-case scenarios, a safety hazard. For OEMs, designers, and sourcing professionals, understanding the fundamentals of this "unseen backbone" is the first step toward ensuring product reliability, safety, and customer satisfaction. This guide delves into the purpose, construction, and critical standards governing these essential components.

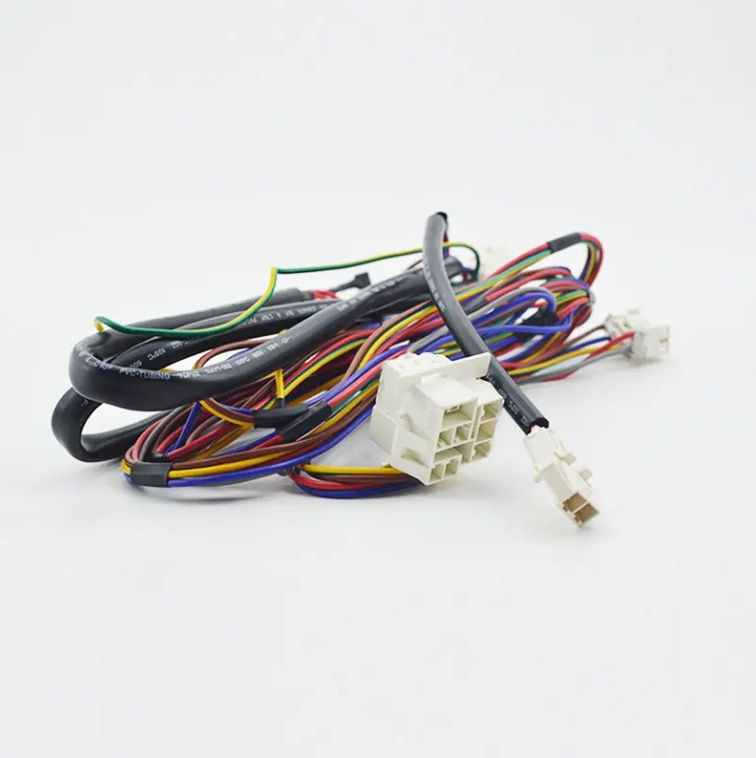

The Anatomy of an Appliance Wiring Harness

At its core, a wiring harness is an organized, integrated system of wires, terminals, and connectors designed to simplify the manufacturing process and enhance reliability. Instead of having engineers run dozens of individual wires point-to-point during assembly, a pre-assembled appliance wiring assembly is installed as a single unit. This not only speeds up production but also minimizes the risk of human error.

A typical harness for a home appliance includes:

Wires: These are the conductors, often made of stranded copper for flexibility. The insulation material is chosen based on the operating environment (e.g., heat, moisture, chemical exposure).

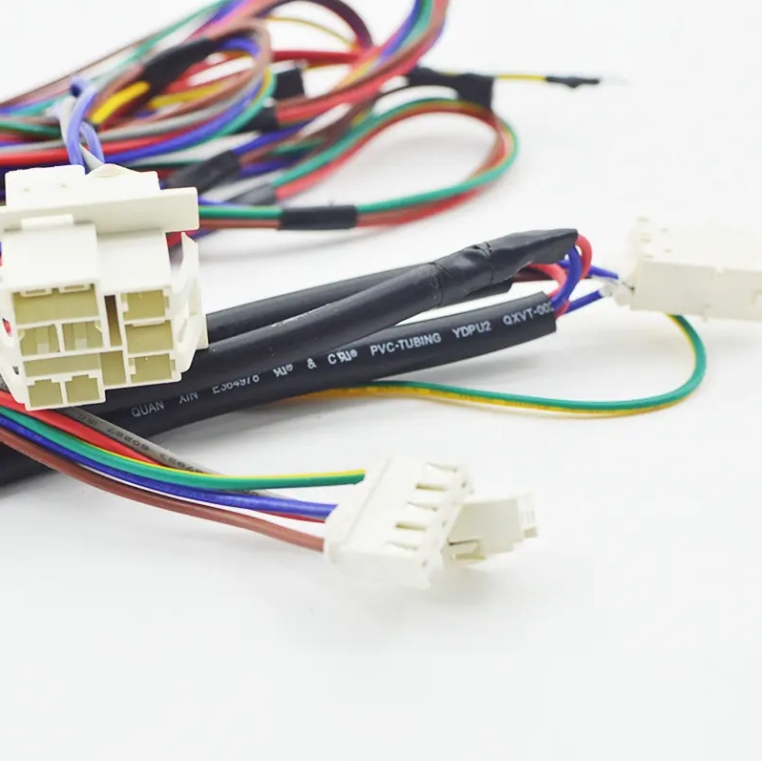

Terminals and Connectors: These components create secure, removable connections to printed circuit boards (PCBs), motors, and other components. Precision in their design and crimping is paramount for electrical integrity.

Protective Sleeving and Conduit: To protect against abrasion, heat, and electromagnetic interference, wires are often bundled with sleeves, tape, or conduit.

Strain Reliefs: These crucial elements secure the harness at entry and exit points, preventing tension from being transferred to the delicate electrical terminals.

The Critical Role of Standards and Certification

When it comes to safety and performance, not all wiring is created equal. This is where international standards come into play. In the North American market, UL (Underwriters Laboratories) standards are the benchmark for safety. A UL certified wire harness provides OEMs and consumers with the assurance that the component has been rigorously tested for specific hazards, such as electrical fire, shock, and mechanical failure.

Two of the most common standards for internal wiring are:

UL 1015: This standard covers hook-up wire with a thicker, more durable PVC insulation, typically rated for 105°C and 600V. It is commonly used in appliance lead wire assembly applications where higher temperature resistance and mechanical robustness are required, such as in power sections or near heating elements.

UL 1007: This standard also covers PVC hook-up wire but is generally thinner, rated for 80°C and 300V. It is often used for lower-current control wiring, signal transmission, and within the appliance control wiring sections of a device.

Specifying a harness built with these compliant wires is a non-negotiable aspect of responsible appliance design.

Why the "Unseen" Component Demands Your Full Attention

Neglecting the selection of your wiring harness can have dire consequences. A sub-par harness can lead to voltage drops, signal interference, and intermittent operation. More seriously, it can become a source of heat, melting, or even fire. Furthermore, a failure in the field leads to warranty claims, costly repairs, and irreparable damage to your brand's reputation. Investing in a high-quality, properly specified appliance internal harness assembly from the outset is the most cost-effective strategy over the product's entire lifecycle. It is an investment in safety, performance, and peace of mind.

Understanding the fundamental role and standards of internal wiring is the foundation. But knowing what a harness is only gets you so far. To truly ensure the longevity and reliability of your products, you need to know what separates a mediocre harness from a superior one.
