What Does an ABS Sensor Connect To?

What Does an ABS Sensor Connect To?

Modern automotive safety systems rely heavily on the Anti-lock Braking System (ABS) to prevent wheel lock-up and maintain steering control during hard braking. But one of the most common questions people ask is: what exactly does an ABS sensor connect to? Understanding this connection helps explain how your vehicle gathers, processes, and reacts to vital braking data in milliseconds.

1. The Function of an ABS Sensor

The ABS sensor, also known as a wheel-speed sensor, is designed to detect the rotational speed of each wheel. This real-time information is transmitted to the ABS control module — the brain of the system — which analyzes wheel behavior and adjusts brake pressure as needed.

Each wheel typically has its own sensor. These sensors generate a signal — often magnetic or Hall-effect — that indicates how fast the wheel is turning. The system compares these signals across all wheels to determine if any wheel is locking up or slipping.

Modern vehicles often use Active Hall-effect ABS sensors, which provide more precise and reliable readings than older passive designs. These sensors can even detect the direction of wheel rotation, improving stability control and traction systems.

2. Connection Path of the ABS Sensor

The ABS sensor connects through a dedicated harness system that carries signals from the wheel hub to the vehicle’s Electronic Stability Control (ESC) module or ABS modulator unit.

This connection typically includes:

• The Wheel-speed sensor harness (front and rear leads).

• The ABS modulator pump harness, which powers and controls hydraulic brake pressure.

• The HCU (Hydraulic Control Unit) harness, which manages fluid distribution between the brakes.

• The Brake pressure sensor pigtail, transmitting real-time braking pressure data.

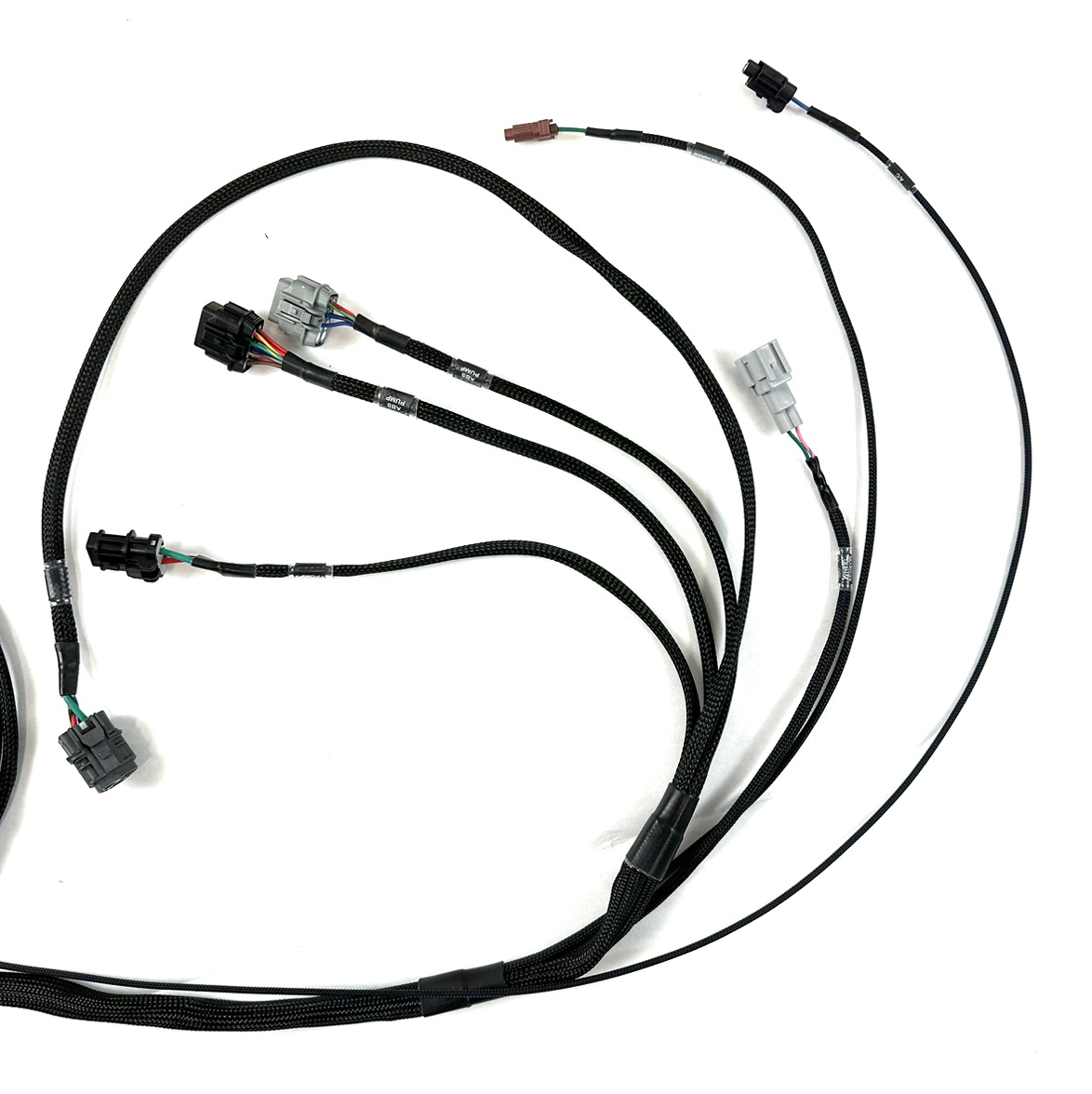

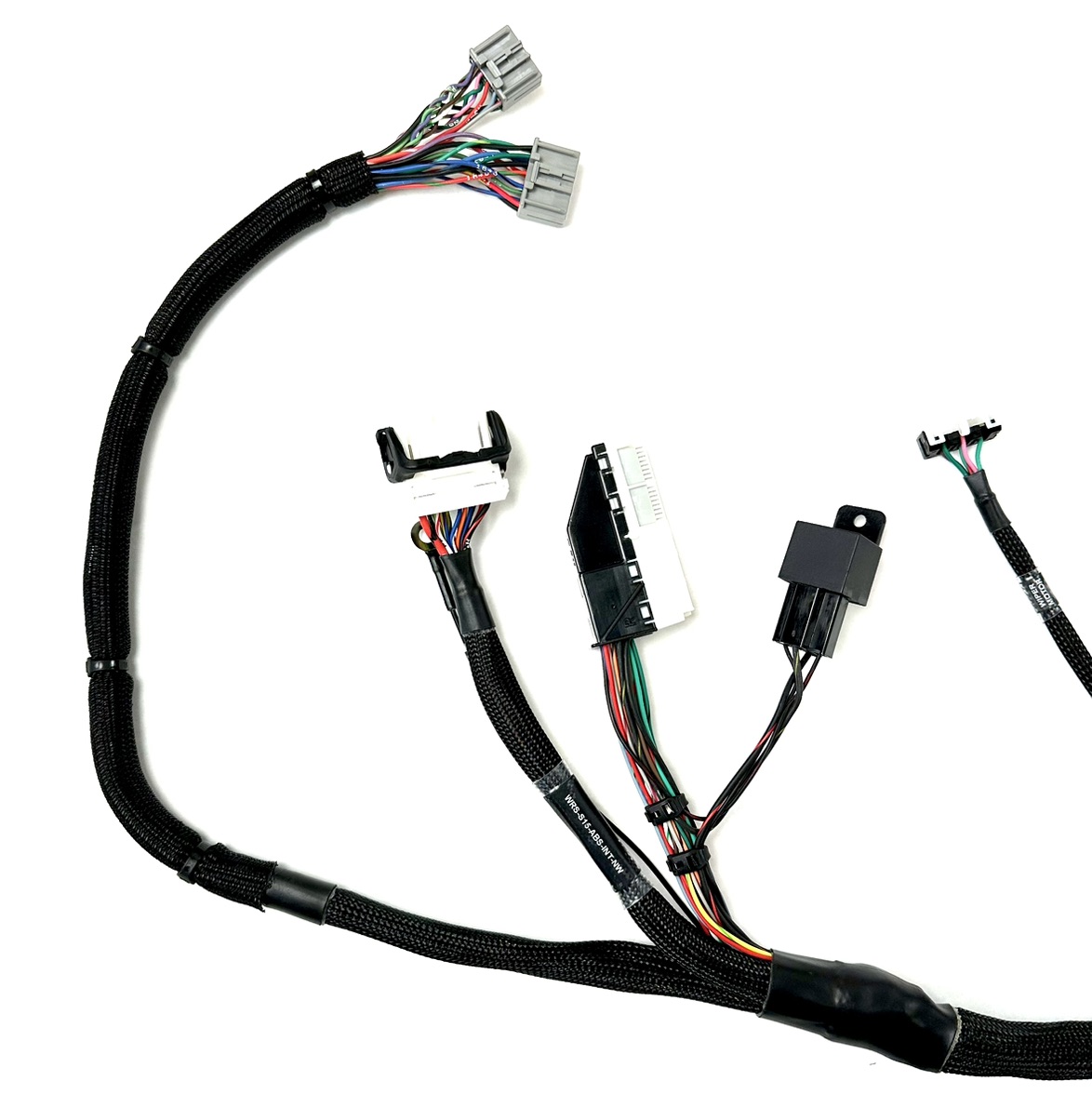

In high-performance and modern vehicles, engineers use a Custom Connect ABS/ESP system automotive chassis wiring harness — a specialized cable network that integrates ABS, ESP (Electronic Stability Program), and traction control wiring into one unified system.

This ensures that all components — sensors, valves, and pumps — communicate seamlessly without electrical noise or signal delay.

3. How the Signal Is Processed

Once the ABS sensor detects wheel rotation, it sends voltage pulses to the ESC control module harness, which processes them into readable data. If the control unit senses a difference in wheel speeds during braking, it activates the ABS modulator pump harness to adjust pressure through the HCU harness.

This feedback loop happens up to 20 times per second, preventing lock-up while maintaining driver control. The Master cylinder pressure transducer lead also monitors the driver’s brake pedal input, ensuring the system balances hydraulic pressure across all wheels.

4. Common Variations and International Naming

Depending on the manufacturer or region, the same components may have slightly different names:

• In Europe: Wheel-speed sensor harness is often called “ABS wheel sensor loom.”

• In the US: Brake pressure sensor pigtail is sometimes referred to as a “brake pressure connector lead.”

• In Japan: ESC control module harness may appear in documentation as “stability control ECU wiring.”

Despite regional naming, the structure remains the same — the sensors feed the control unit, which commands the hydraulic and electrical components of the braking system.

5. Maintenance and Common Issues

ABS wiring harnesses are exposed to harsh environments — heat, moisture, dirt, and vibration. Common issues include:

• Broken connectors near the wheel hub.

• Corroded pins inside the sensor connector.

• Damaged custom ABS/ESP chassis wiring harness insulation from road debris.

If your ABS warning light turns on, the problem is often a broken wheel-speed sensor harness front left or rear right lead. Regular inspections and using dielectric grease on connectors can prevent many of these issues.

When replacing, it’s essential to use OEM-grade or Custom Connect ABS/ESP system automotive chassis wiring harness assemblies to maintain signal integrity and long-term reliability.

6. Integration With Other Vehicle Systems

The ABS sensor does more than prevent wheel lock — it plays a vital role in modern vehicle dynamics. The data it provides is used by systems such as:

• Electronic Stability Program (ESP) — monitors lateral motion and yaw to prevent skidding.

• Traction Control (TCS) — manages wheel spin during acceleration.

• Adaptive Cruise Control (ACC) — uses sensor input for smoother braking control.

All these functions rely on robust electrical pathways provided by the Custom ABS/ESP chassis wiring harness and its interconnected sensor network.
